Engine Coolant Temperature Sensor: Removal

  1. DRAIN ENGINE COOLANT (See  COOLANT  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE AIR CLEANER CAP (See  REMOVAL   )
  4. REMOVE AIR CLEANER CASE (See  REMOVAL   )
  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the sensor connector.
    2. Using SST, remove the sensor and gasket.

      SST 09817-33190

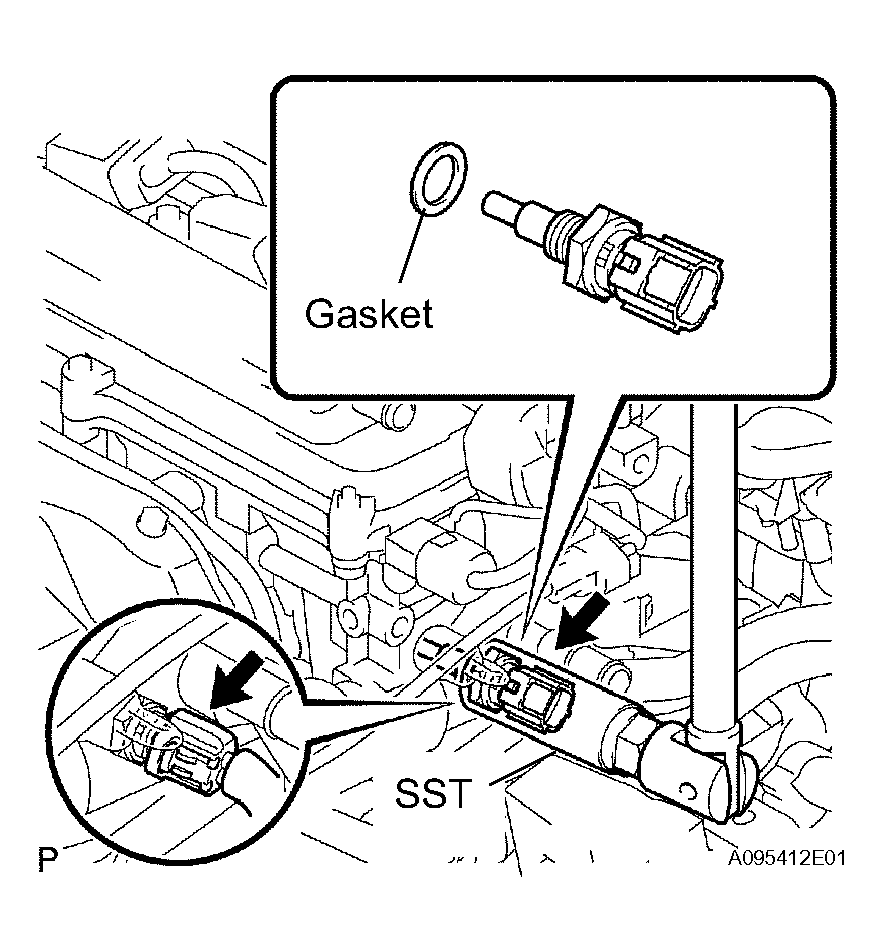

      Fig 1: Removing Engine Coolant Temperature Sensor
      G04484099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
