Terminals Of ECM

WARNING: This page is about a different car, the 2006 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

ECM

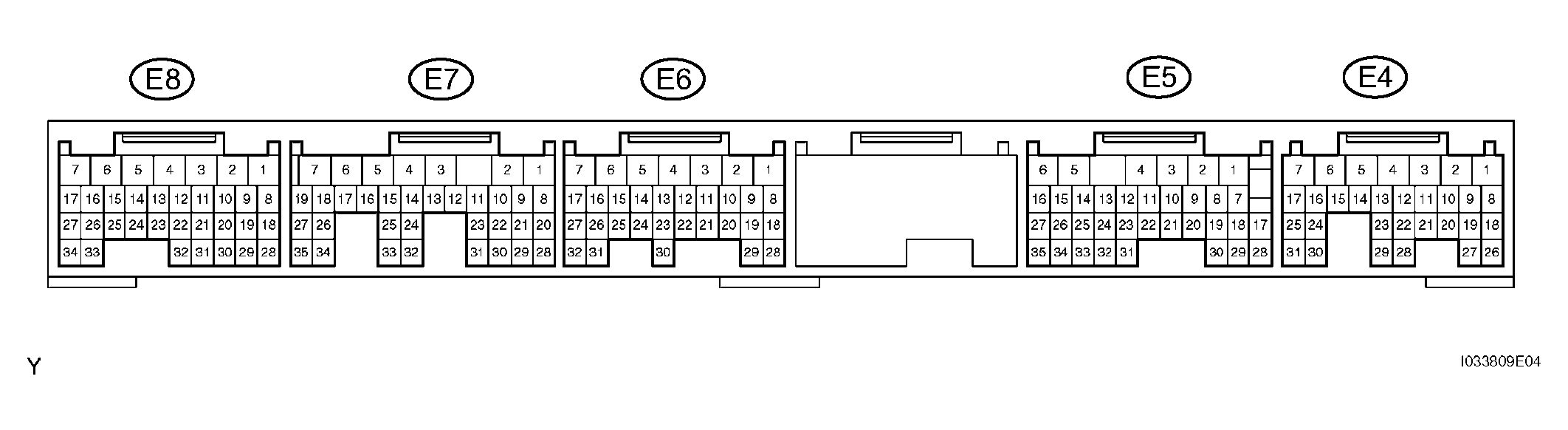

Fig 1: Identifying Terminals Of ECM

G04494744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECM TERMINALS

Symbols (Terminal No.)	Wiring Color	Condition	Specified Condition
TC - E1 (E4-20 - E6-1)	P-B - BR	Ignition switch ON	10 to 14 V
TC - E1 (E4-20 - E6-1)	P-B - BR	Ignition switch ON Connect terminals TC and CG of DLC3	Below 2 V
ST1- - E1 (E5-12 - E6-1)	LG-R - BR	Ignition switch ON Depress brake pedal	Below 1 V
ST1- - E1 (E5-12 - E6-1)	LG-R - BR	Ignition switch ON Release brake pedal	10 to 14 V
IGSW - E1 (E4-9 - E6-1)	B-O - BR	Ignition switch ON Cruise control main switch ON	0 to 3 V
IGSW - E1 (E4-9 - E6-1)	B-O - BR	Ignition switch ON Cruise control main switch OFF	10 to 14 V
STP - E1 (E5-19 - E6-1)	G-W - BR	Ignition switch ON Depress brake pedal	10 to 14 V
STP - E1 (E5-19 - E6-1)	G-W - BR	Ignition switch ON Release brake pedal	Below 1 V
CCS - E1 (E5-24 - E6-1)	B - BR	Ignition switch ON	10 to 14 V
		Ignition switch ON CANCEL switch hold ON	6.6 to 11.4 V
		Ignition switch ON -/SET switch hold ON	4.5 to 8.1 V
		Ignition switch ON +/RES switch hold ON	2.3 to 4.5 V
		Ignition switch ON MAIN switch hold ON	Below 1 V
