Multiplex Communication System - CAN Bus: Notes

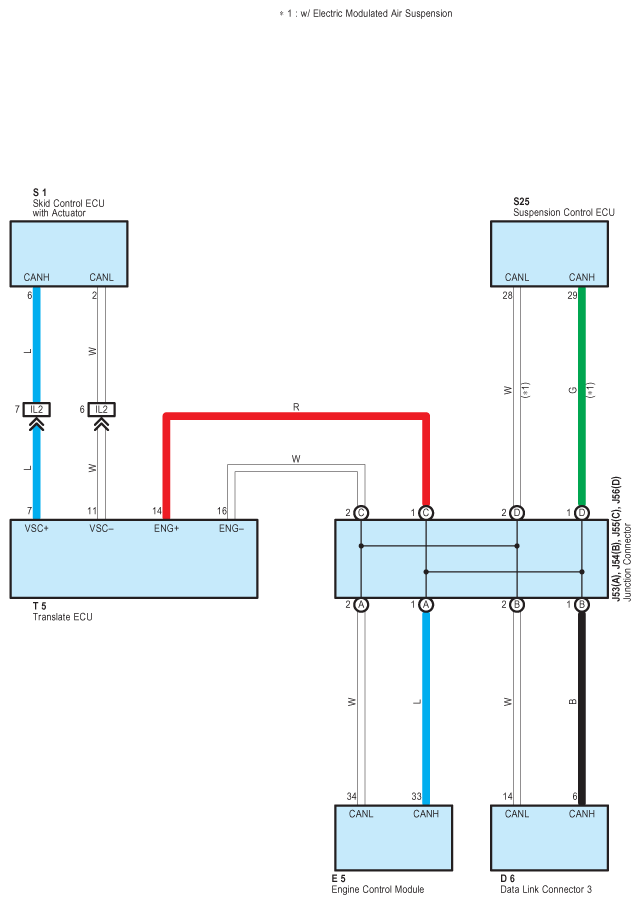

Fig 1: Multiplex Communication System (CAN Bus) Wiring Diagram
G08789735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
