Remote Control Mirror without Driving Position Memory
›
Notes
Remote Control Mirror without Driving Position Memory: Notes

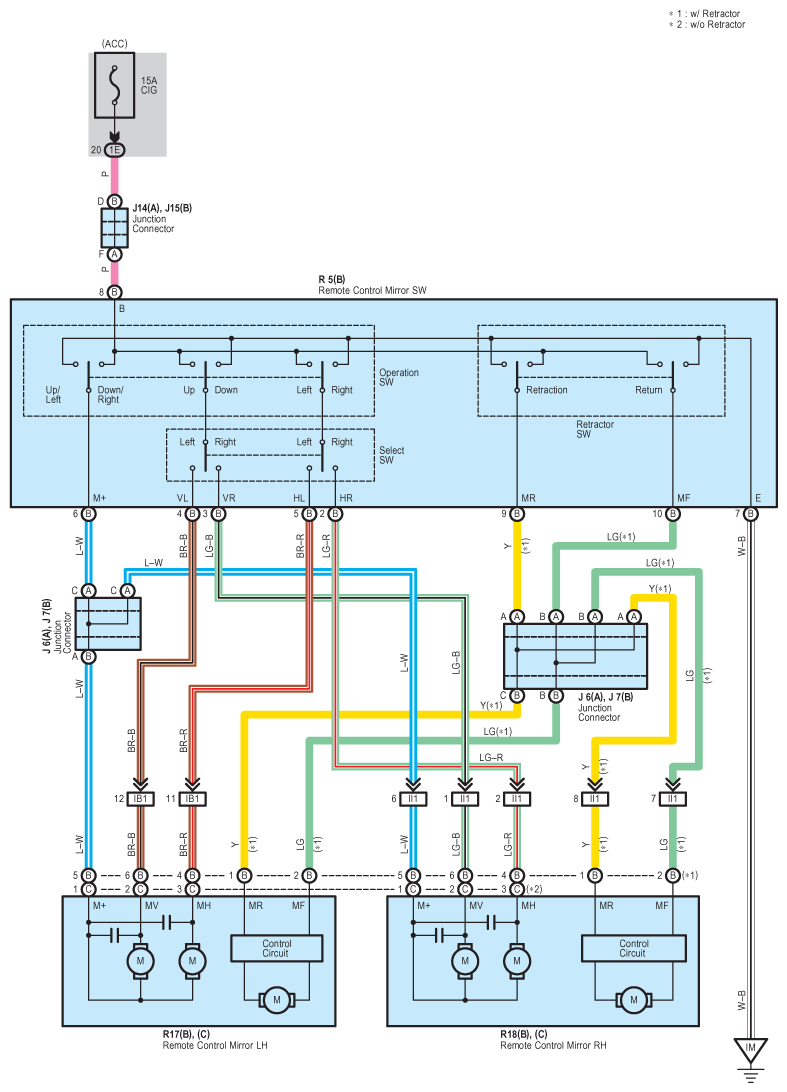

Fig 1: Remote Control Mirror (Without Driving Position Memory) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
