Camshaft Position Sensor: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE DRIVE BELT

    (See REMOVAL )

  3. REMOVE NO. 3 TIMING BELT COVER LH

    (See REMOVAL )

  4. REMOVE CAMSHAFT POSITION SENSOR

    Remove the bolt, stud bolt and camshaft position sensor.

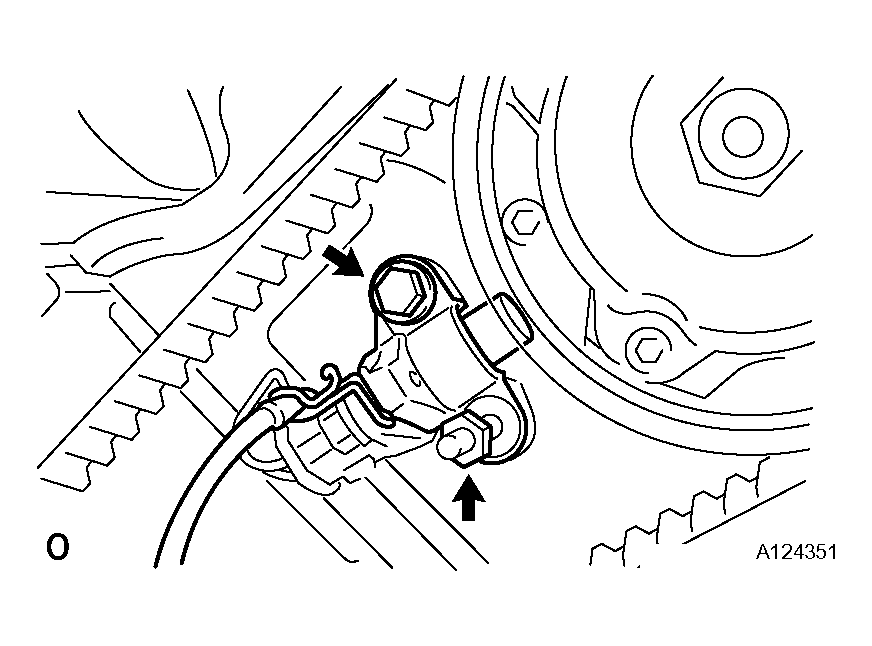

    Fig 1: Removing Bolt, Stud Bolt And Camshaft Position Sensor
    G04507024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
