Camshaft Timing Oil Control Valve Assembly: Components

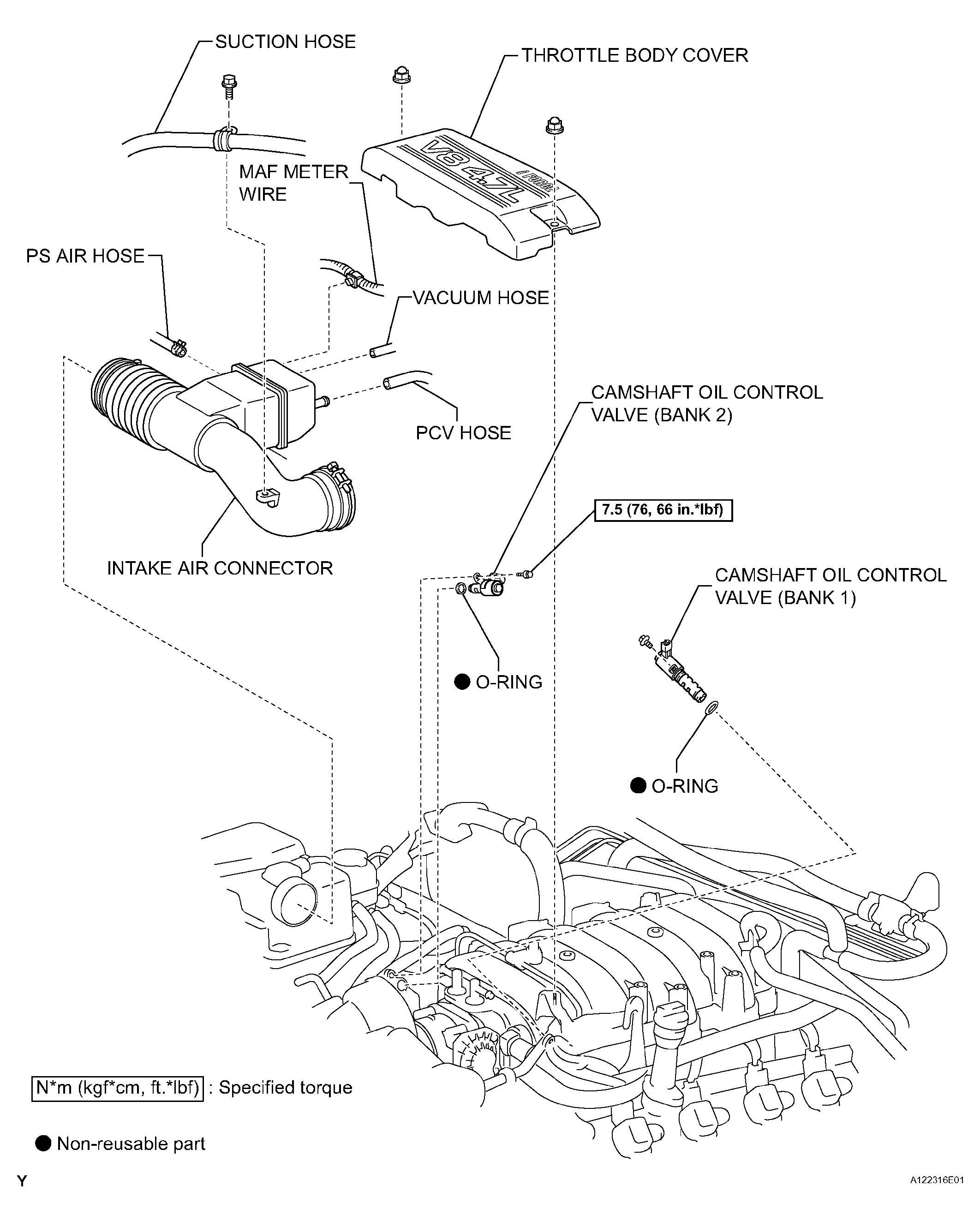

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components & Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
