Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER NO.1
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

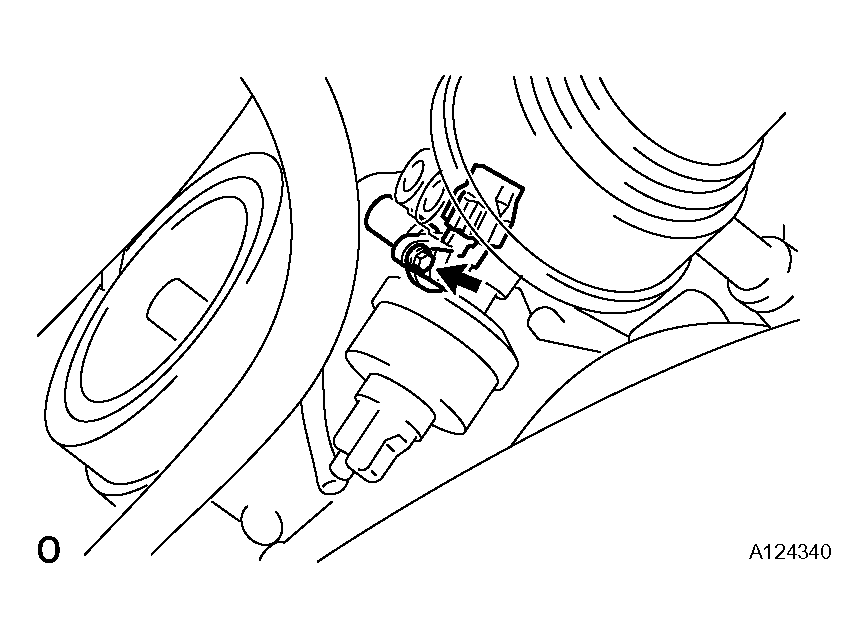

      Fig 1: Removing Bolt And Crankshaft Position Sensor
      G04507027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
