Throttle Body: Components

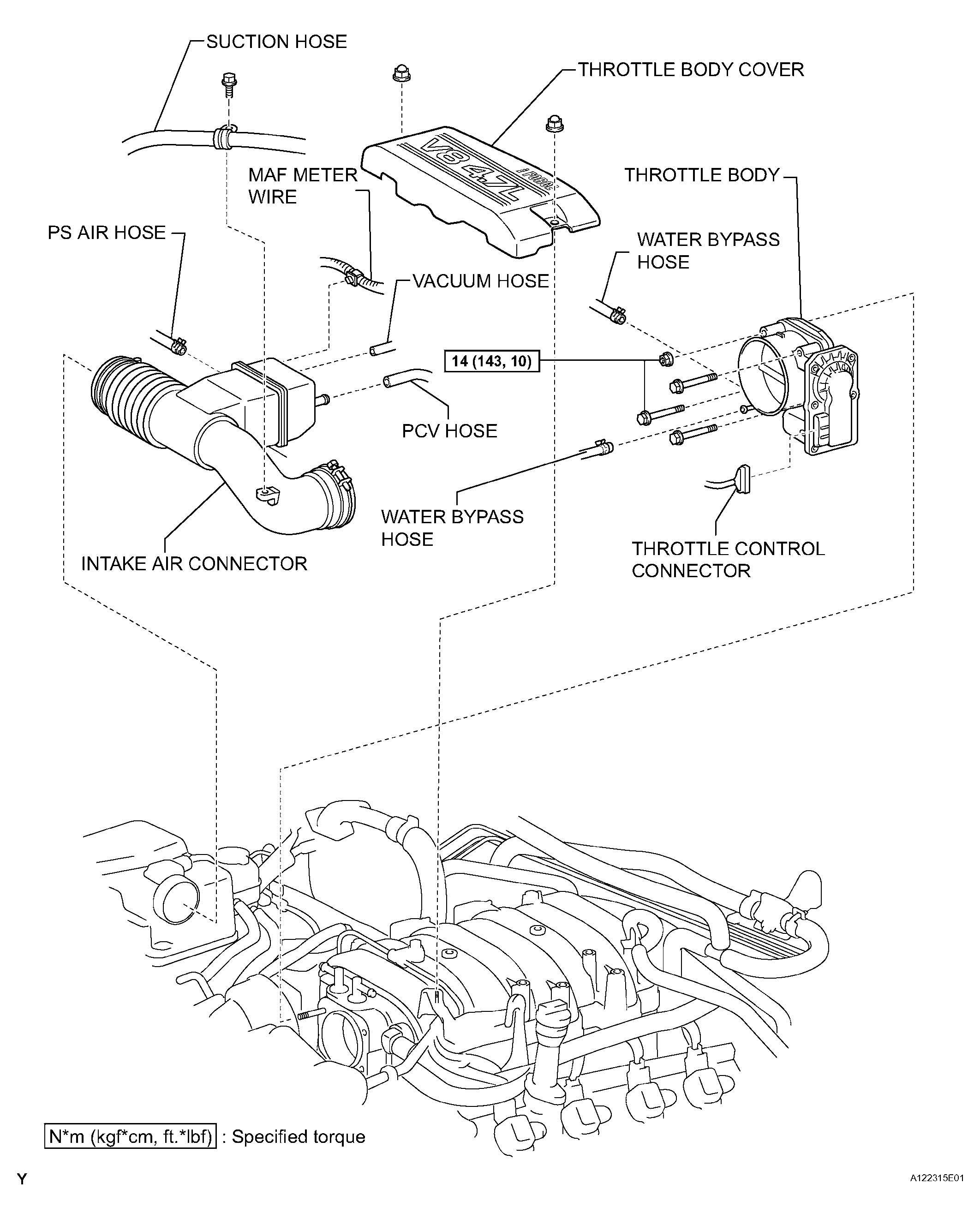

Fig 1: Throttle Body Replacement Components & Torque Specification

G04507033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
