Crankshaft Position Sensor: Components

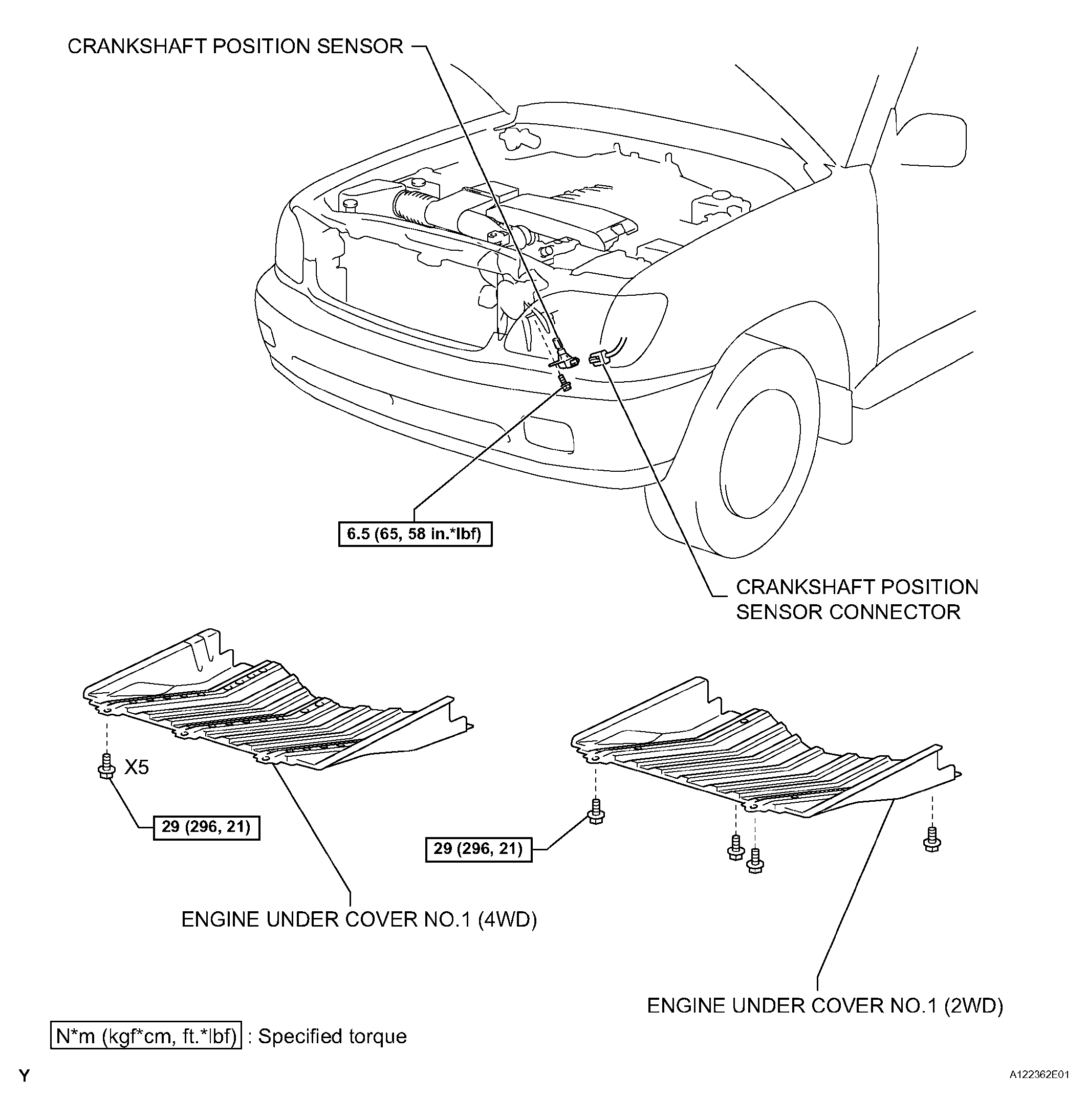

Fig 1: Crankshaft Position Sensor Replacement Components & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
