Engine Coolant Temperature Sensor: Components

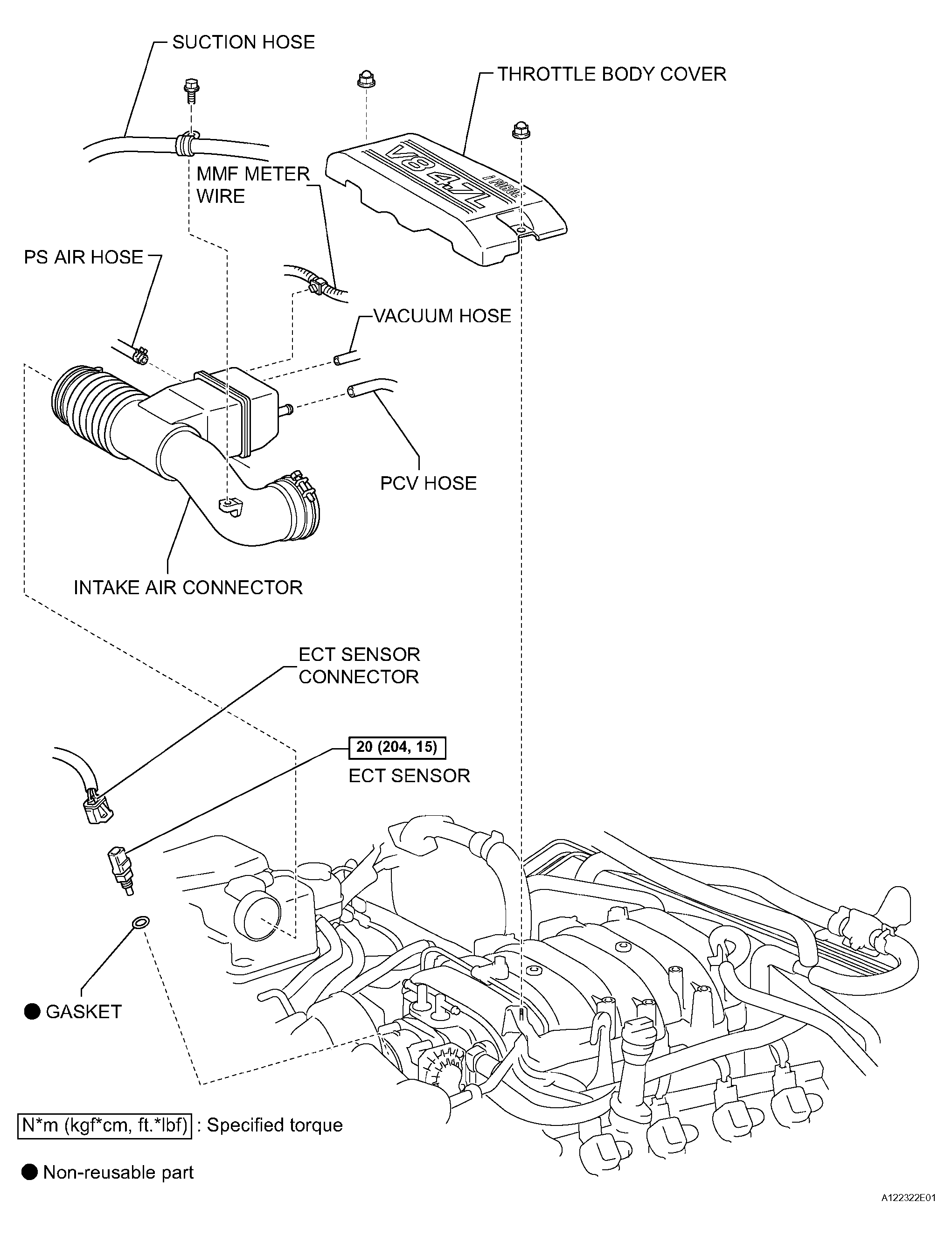

Fig 1: Engine Coolant Temperature Sensor Replacement Components & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
