Height Control Valve
›
Components
Height Control Valve: Components

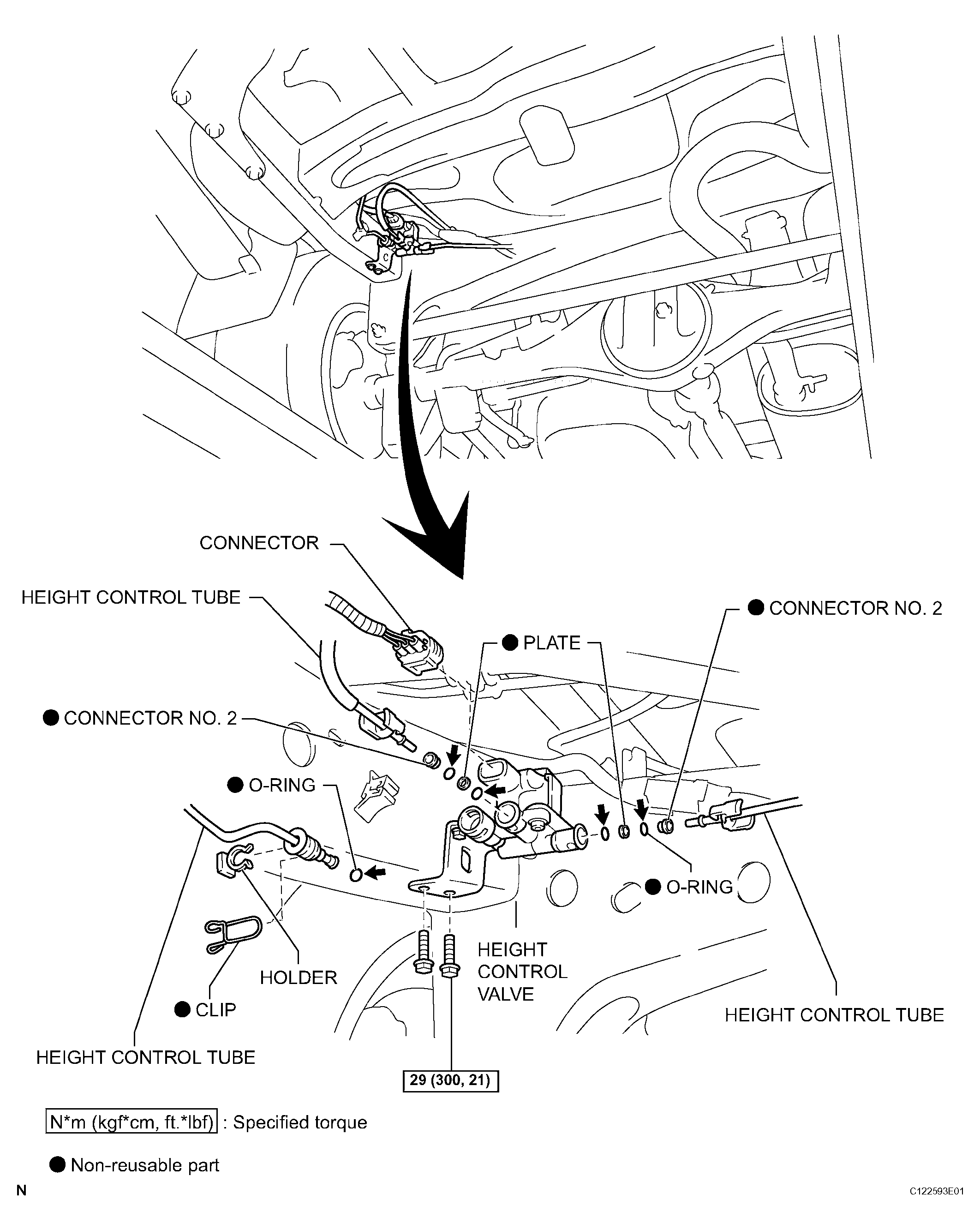

Fig 1: Height Control Valve Replacement Components & Torque Specification
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
