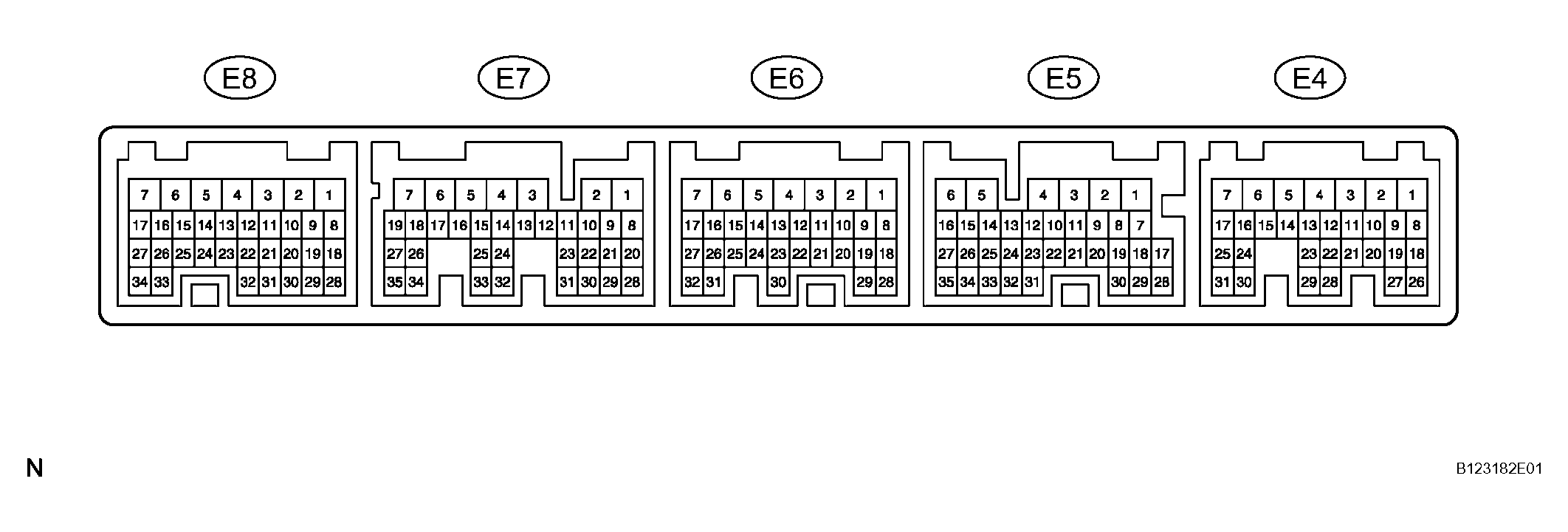

Terminals Of ECM
ECM TERMINALS REFERENCE CHART
| Symbols (Terminals No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| TC (E4-23) - E1 (E6-1) | P-B - BR | DTC output signal | Ignition switch on | 10 to 14 V |
| TC (E4-23) - E1 (E6-1) | P-B - BR | DTC output signal | Ignition switch on, connect terminals TC and CG of DLC3 | Below 1 V |
| ST1- (E4-16) - E1 (E6-1) | L-B - BR | Cruise cancel input signal | Ignition switch on, depress brake pedal | Below 1 V |
| ST1- (E4-16) - E1 (E6-1) | L-B - BR | Cruise cancel input signal | Ignition switch on, release brake pedal | 10 to 14 V |
| STP (E4-15) - E1 (E6-1) | G-Y - BR | Stop light switch input signal | Ignition switch on, depress brake pedal | 10 to 14 V |
| STP (E4-15) - E1 (E6-1) | G-Y - BR | Stop light switch input signal | Ignition switch on, release brake pedal | Below 1 V |
| CCS (E5-2) - E1 (E6-1) | R-Y - BR | Cruise control main switch input circuit | Ignition switch on | 10 to 14 V |
| CCS (E5-2) - E1 (E6-1) | R-Y - BR | Cruise control main switch input circuit | Ignition switch on, CANCEL switch held ON | 6.6 to 10.1 V |
| CCS (E5-2) - E1 (E6-1) | R-Y - BR | Cruise control main switch input circuit | Ignition switch on, +/RES switch held ON | 4.5 to 7.1 V |
| CCS (E5-2) - E1 (E6-1) | R-Y - BR | Cruise control main switch input circuit | Ignition switch on, -/SET switch held ON | 2.3 to 4.0 V |
| CCS (E5-2) - E1 (E6-1) | R-Y - BR | Cruise control main switch input circuit | Ignition switch on, MAIN switch held ON | Below 1 V |
| SPD (E5-8) -E1 (E6-1) | G-O - BR | Speed signal | Ignition switch on, rotate driving wheel slowly | Pulse generation |
| D (E5-21) -E1 (E6-1) | W-R - BR | D shift position switch input signal | Ignition switch on, shift lever D position | 10 to 14 V |
| D (E5-21) -E1 (E6-1) | W-R - BR | D shift position switch input signal | Ignition switch on, shift lever any position except D | Below 1 V |
| PI (E5-18) -E1 (E6-1) | LG-R - BR | Cruise indication signal | Ignition switch on, MAIN switch OFF | 10 to 14 V |
| PI (E5-18) -E1 (E6-1) | LG-R - BR | Cruise indication signal | Ignition switch on, MAIN switch on | Below 1 V |
