Parts Location

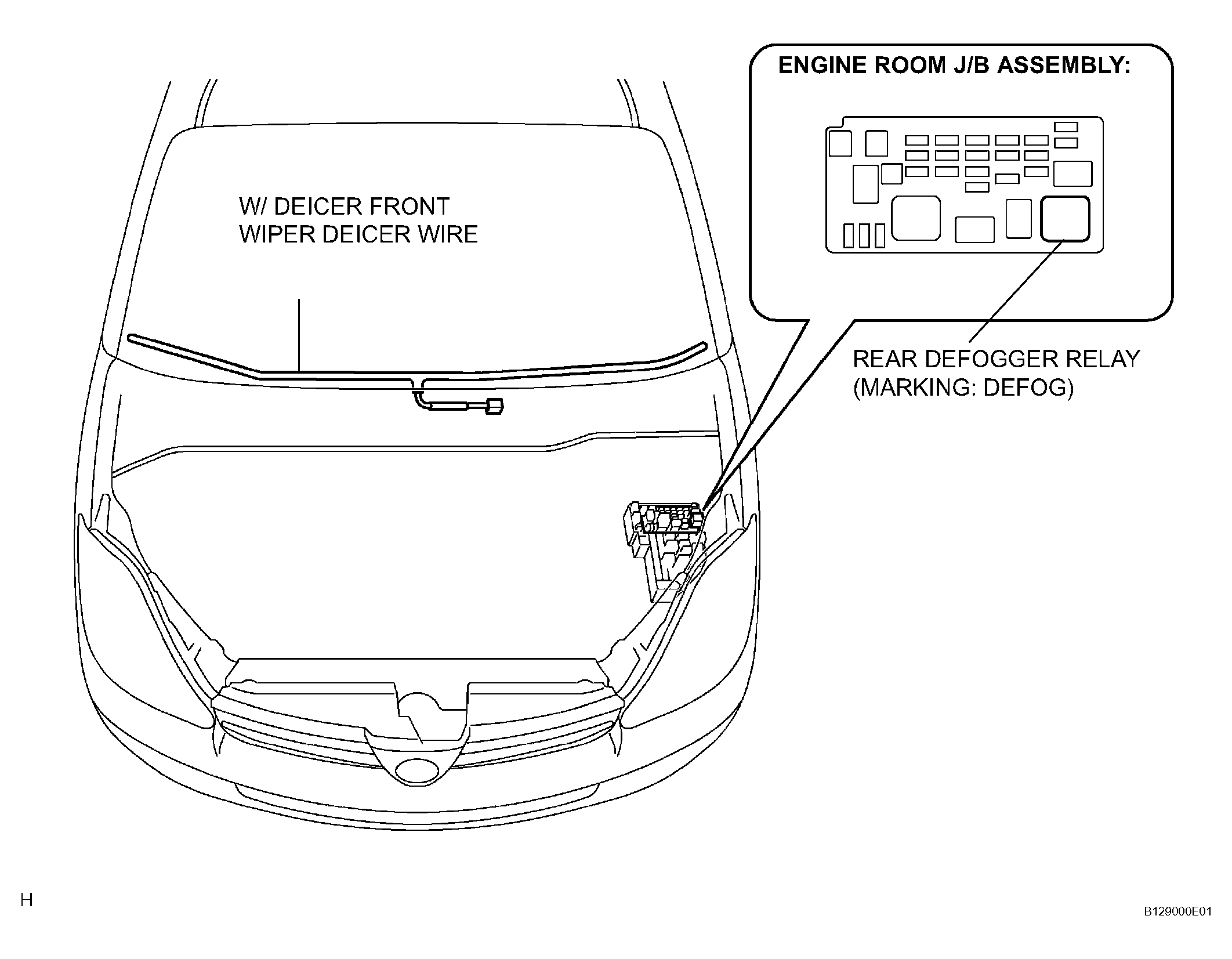

Fig 1: Locating Window Defogger System Parts (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

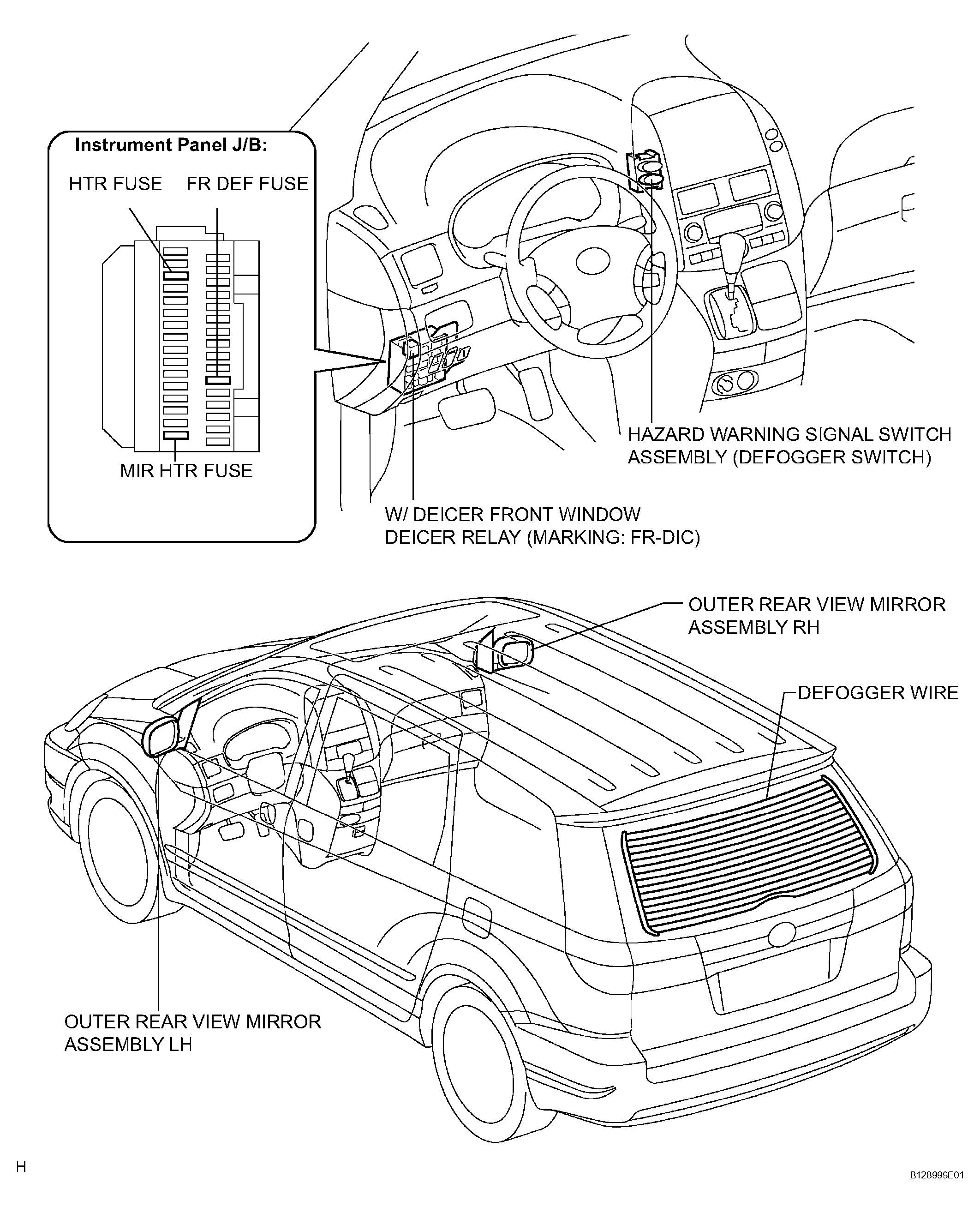

Fig 2: Locating Window Defogger System Parts (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
