Front Axle Hub: Installation

  1. INSTALL FRONT AXLE ASSEMBLY LH
    1. Install the 2 bolts, nuts and front axle assembly LH with the 2 bolts and nuts to the shock absorber assembly front LH.

      Torque: 230 N*m (2,350 kgf*cm, 170 ft.*lbf)

      NOTE:
      • Only when reusing the bolts and nuts, apply the small amount of engine oil to the screw part of the nuts.
      • Do not excessively push out the front axle assembly LH.
      • Be careful not to damage the outboard joint boot.
      • Be careful not to damage the speed sensor rotor.

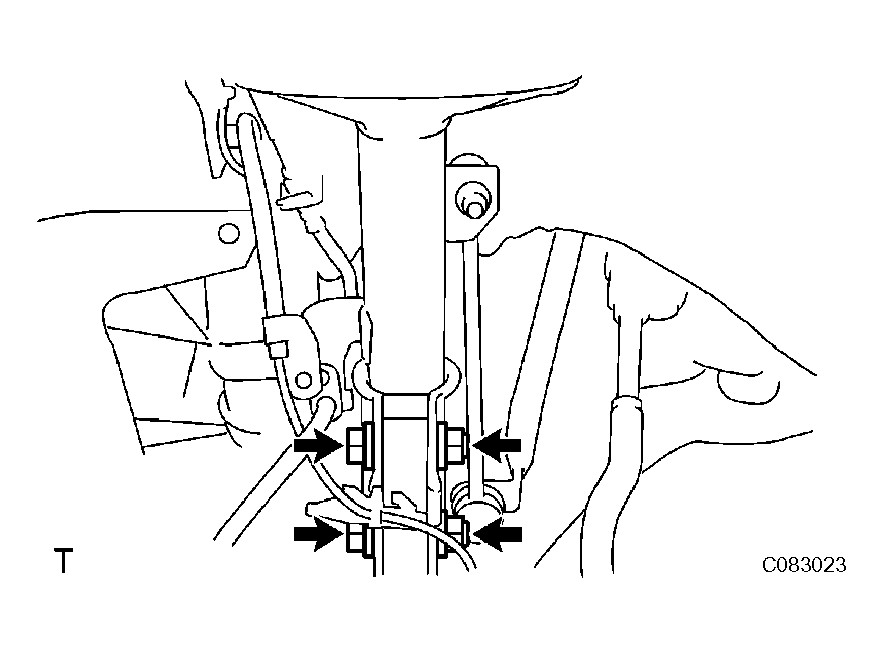

      Fig 1: Installing Front Axle Assembly LH
      G04497967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SUSPENSION ARM SUBASSEMBLY LOWER NO. 1 LH (See  INSTALLATION  )
  3. INSTALL TIE ROD END SUB-ASSEMBLY LH (See  INSTALLATION  )
  4. INSTALL FRONT DISC
  5. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
    1. Install the front disc brake caliper assembly LH with the 2 bolts to the steering knuckle LH.

      Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

    Fig 2: Installing Front Disc Brake Caliper Assembly LH
    G04497968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT AXLE HUB LH NUT
    1. Using a socket wrench (30mm), install a new axle hub LH nut.

      Torque: 294 N*m (3,000 kgf*cm, 217 ft.*lbf)

  7. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH
    1. Remove the 2 bolts and separate the front disc brake caliper assembly LH from the steering knuckle LH.
      NOTE: Use a string or other device to keep the brake caliper from hanging down.
  8. REMOVE FRONT DISC
  9. INSPECT BEARING BACKLASH (See  ON-VEHICLE INSPECTION   )
  10. INSPECT AXLE HUB DEVIATION (See  ON-VEHICLE INSPECTION   )
  11. INSTALL FRONT DISC
  12. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
    1. Install the front disc brake caliper assembly LH with the 2 bolts to the steering knuckle LH.

      Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

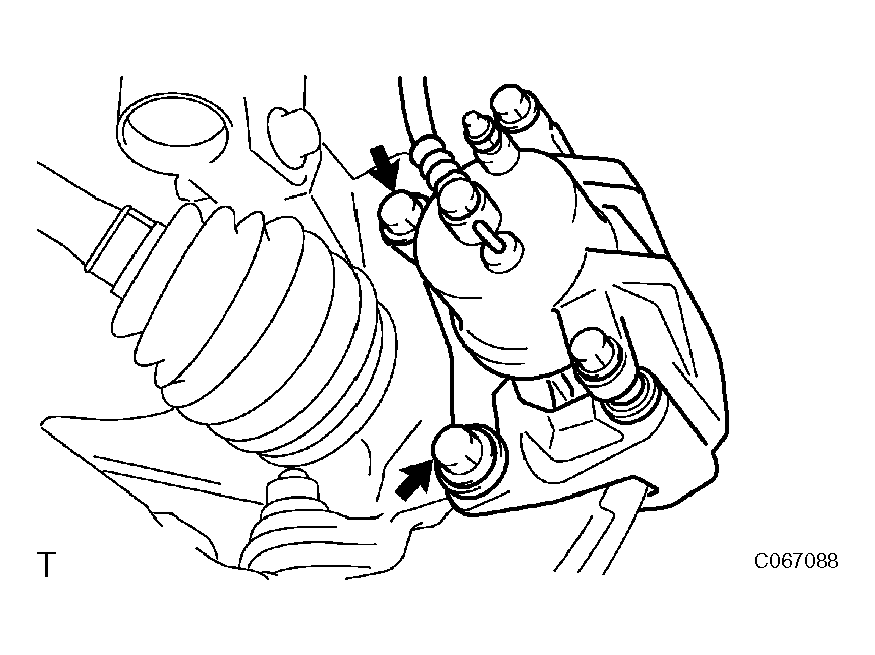

    Fig 3: Installing Front Disc Brake Caliper Assembly LH
    G04497969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SPEED SENSOR FRONT LH (See  INSTALLATION  )
  14. INSTALL FRONT AXLE HUB LH NUT
    1. Using a socket wrench (30 mm), install a new axle hub LH nut.

      Torque: 294 N*m (3,000 kgf*cm, 217 ft.*lbf)

    2. Using a chisel and hammer, stake the axle hub LH nut.

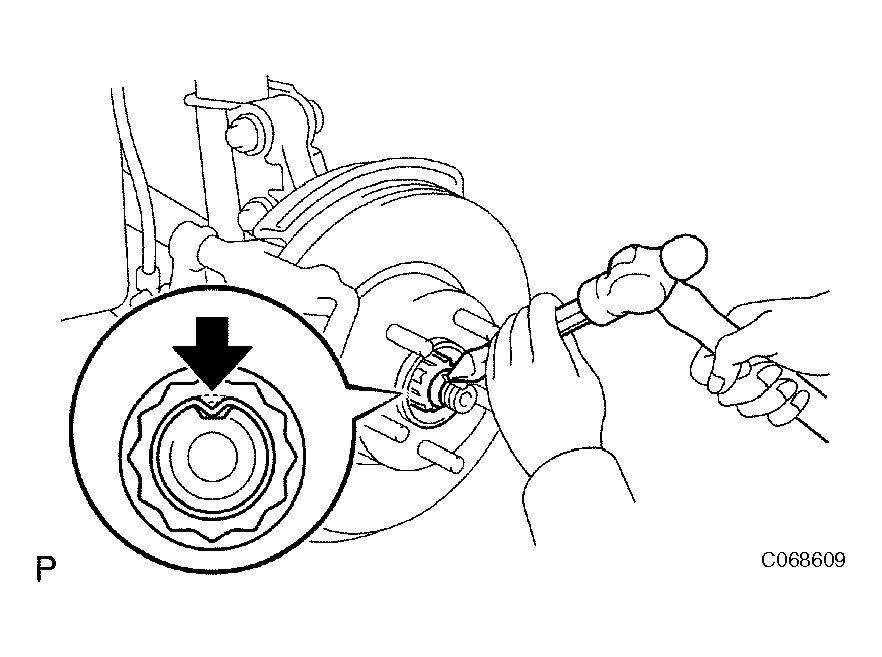

    Fig 4: Installing Front Axle Hub LH Nut
    G04497970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  16. INSPECT FRONT WHEEL ALIGNMENT
    1. Inspect front wheel alignment (See ADJUSTMENT ).
  17. CHECK ABS SPEED SENSOR SIGNAL
    1. ABS WITH EBD SYSTEM (See TEST MODE PROCEDURE ).
    2. ABS WITH EBD & BA & TRAC & VSC SYSTEM (See TEST MODE PROCEDURE ).
