Power Outlet Socket: Installation

  1. INSTALL POWER POINT SOCKET ASSEMBLY
    1. Engage the 2 claws to install the power point socket assembly.
  2. INSTALL QUARTER TRIM FRONT PANEL ASSEMBLY LH
  3. INSTALL BACK DOOR SCUFF PLATE
  4. INSTALL BACK DOOR WEATHERSTRIP
  5. INSTALL REAR DOOR WEATHERSTRIP LH
  6. INSTALL REAR DOOR SCUFF PLATE LH

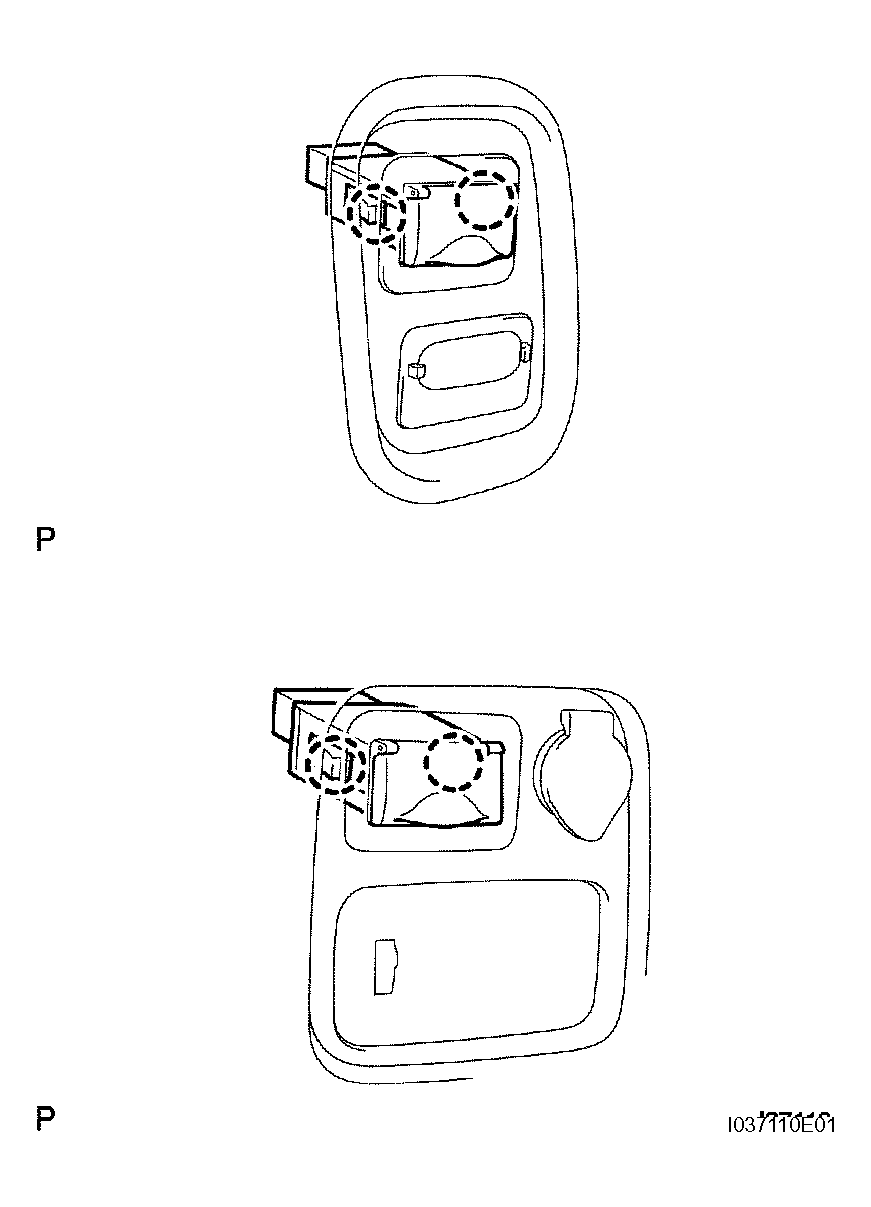

    Fig 1: Engaging Claws To Installing Power Point Socket Assembly
    G04495622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
