EVAP System: Wiring Diagram

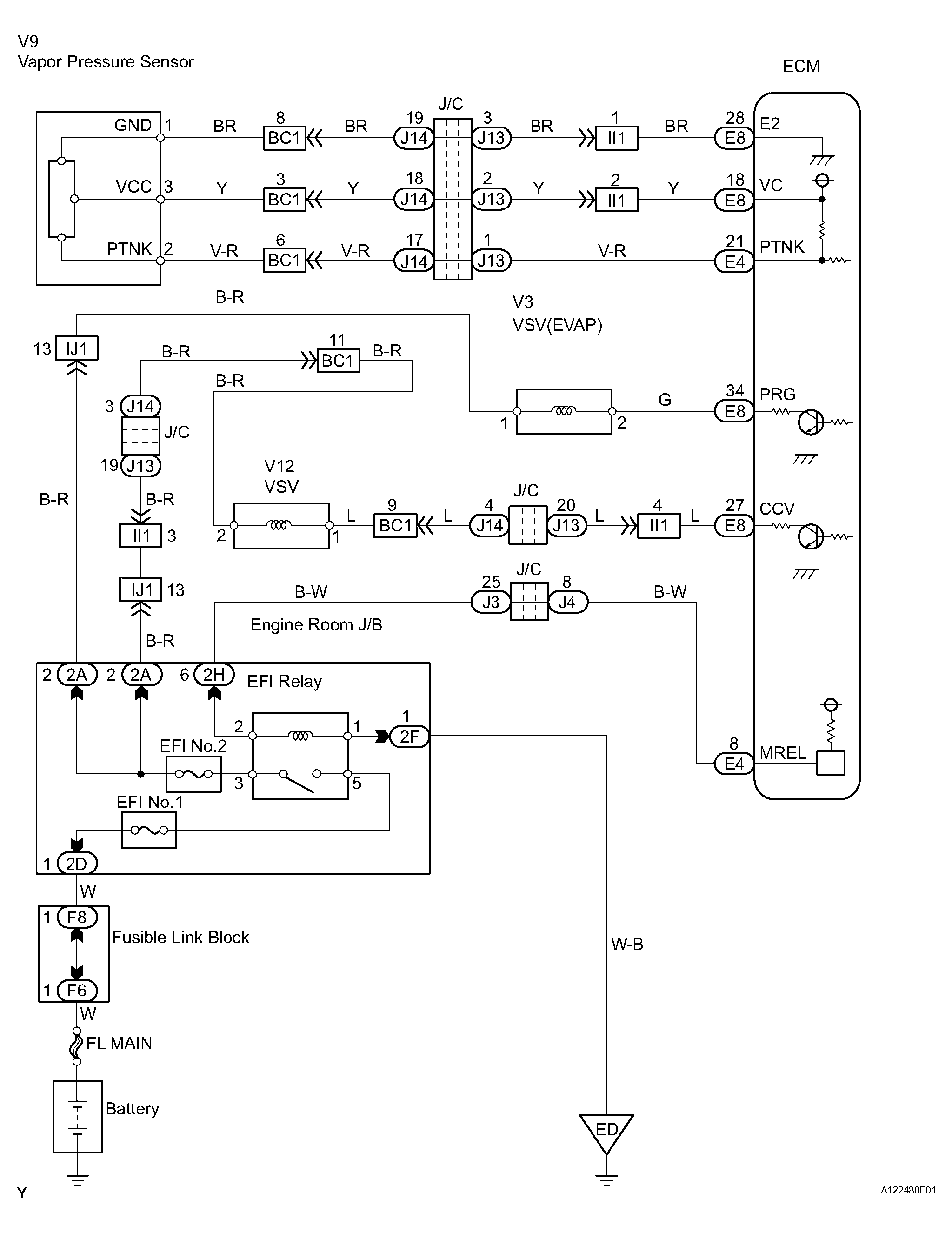

Fig 1: Vapor Pressure Sensor - Wiring Diagram

G04493748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
