Toyota
›
2006
›
Sienna CE
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (3MZ-FE)
›
SFI System
›
Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

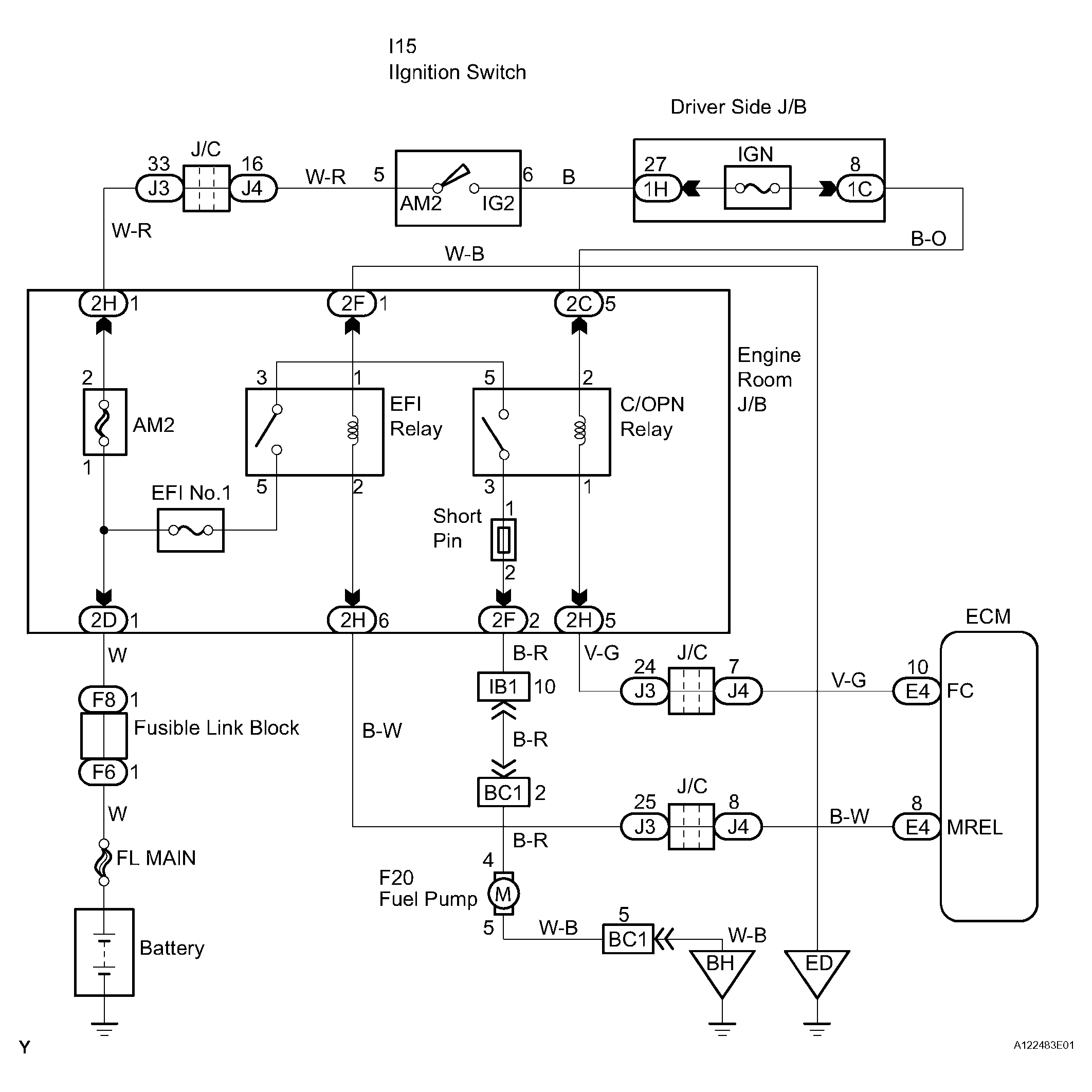

Fig 1: Fuel Pump Control Circuit - Wiring Diagram
