Transfer Unit: Components

WARNING: This page is about a different variant/trim than selected.

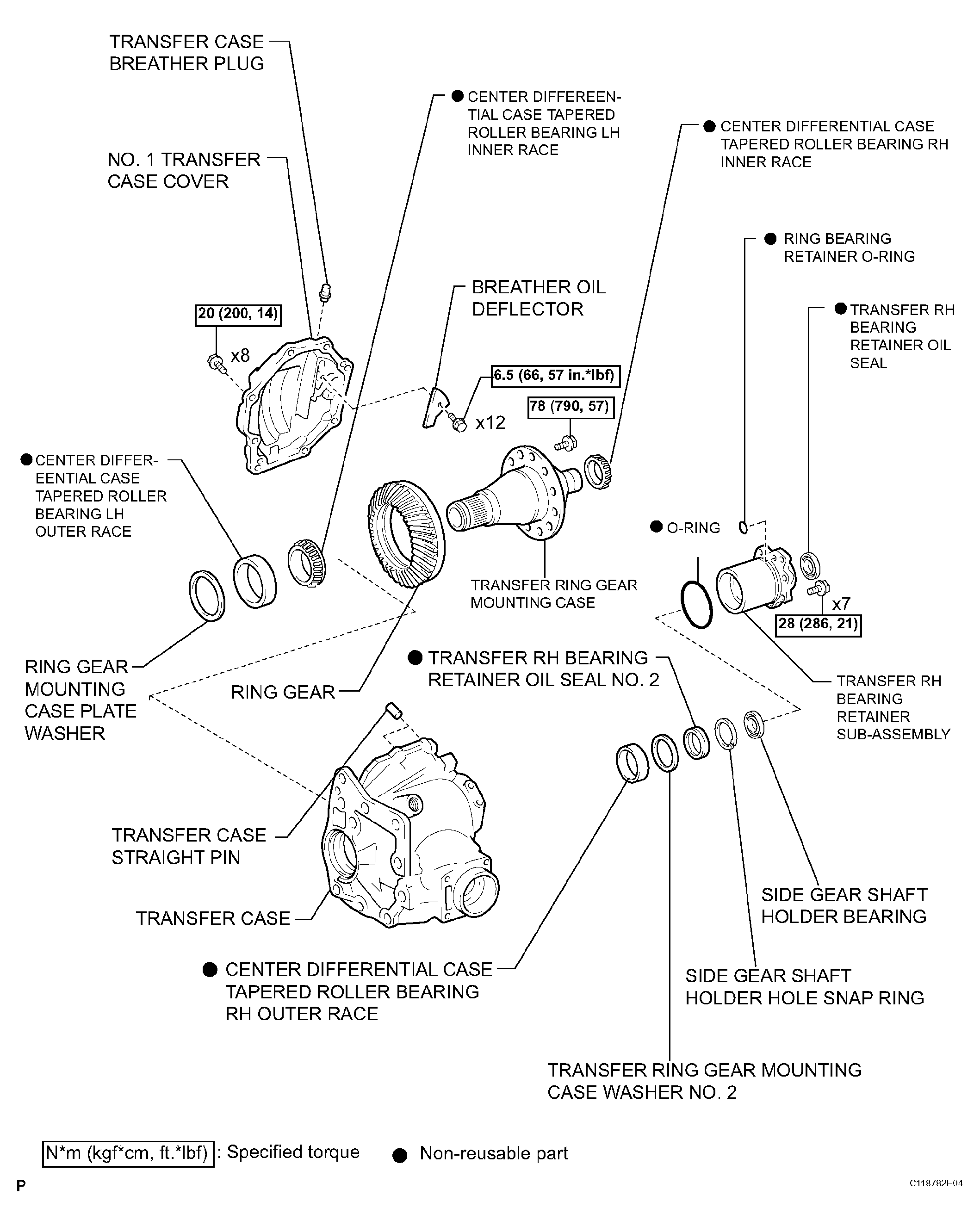

Fig 1: Identifying Transfer Unit Components (1 Of 2)
G04497634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

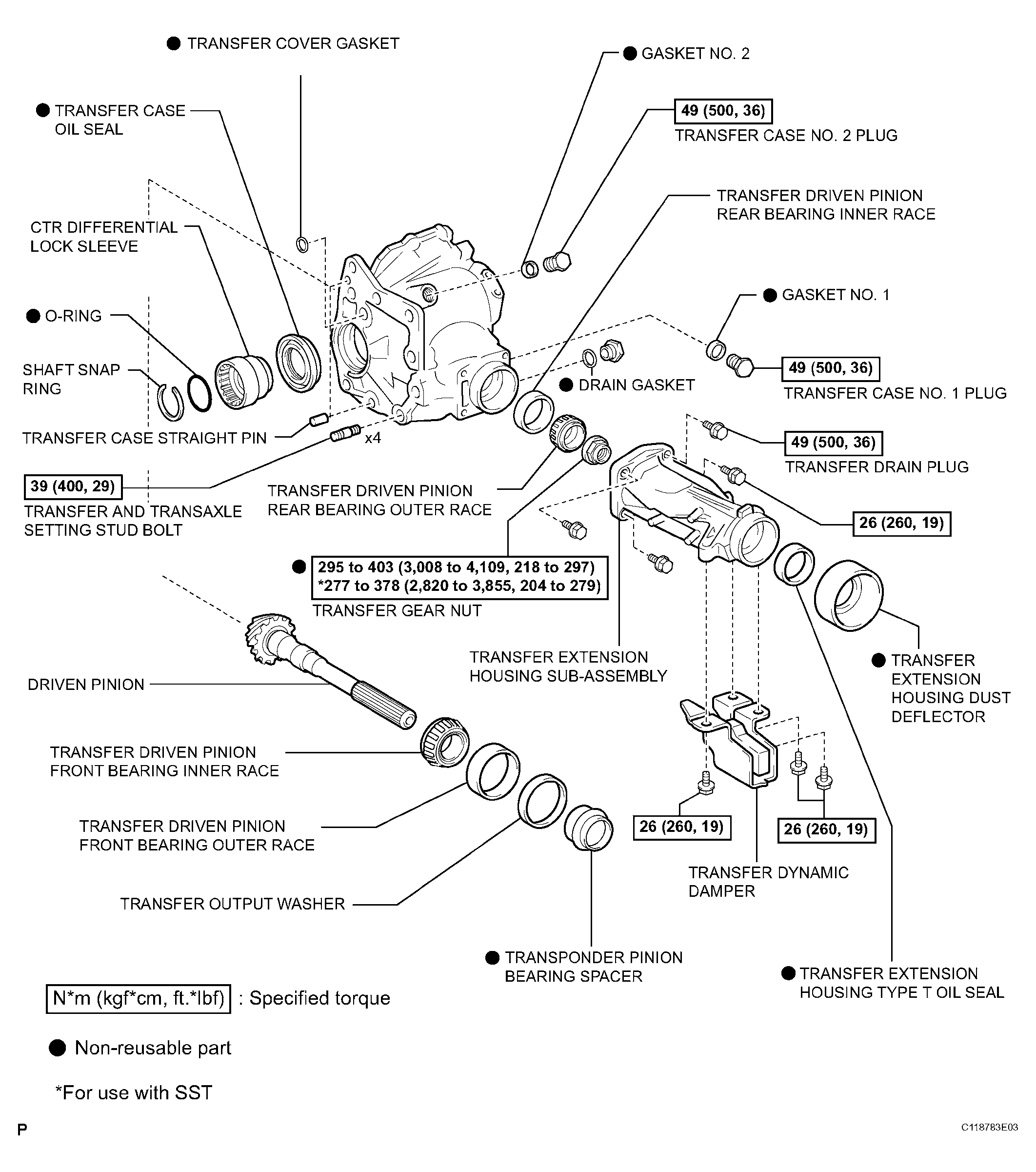

Fig 2: Identifying Transfer Unit Components (2 Of 2)
G04497635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
