Rear Coil Spring: Components

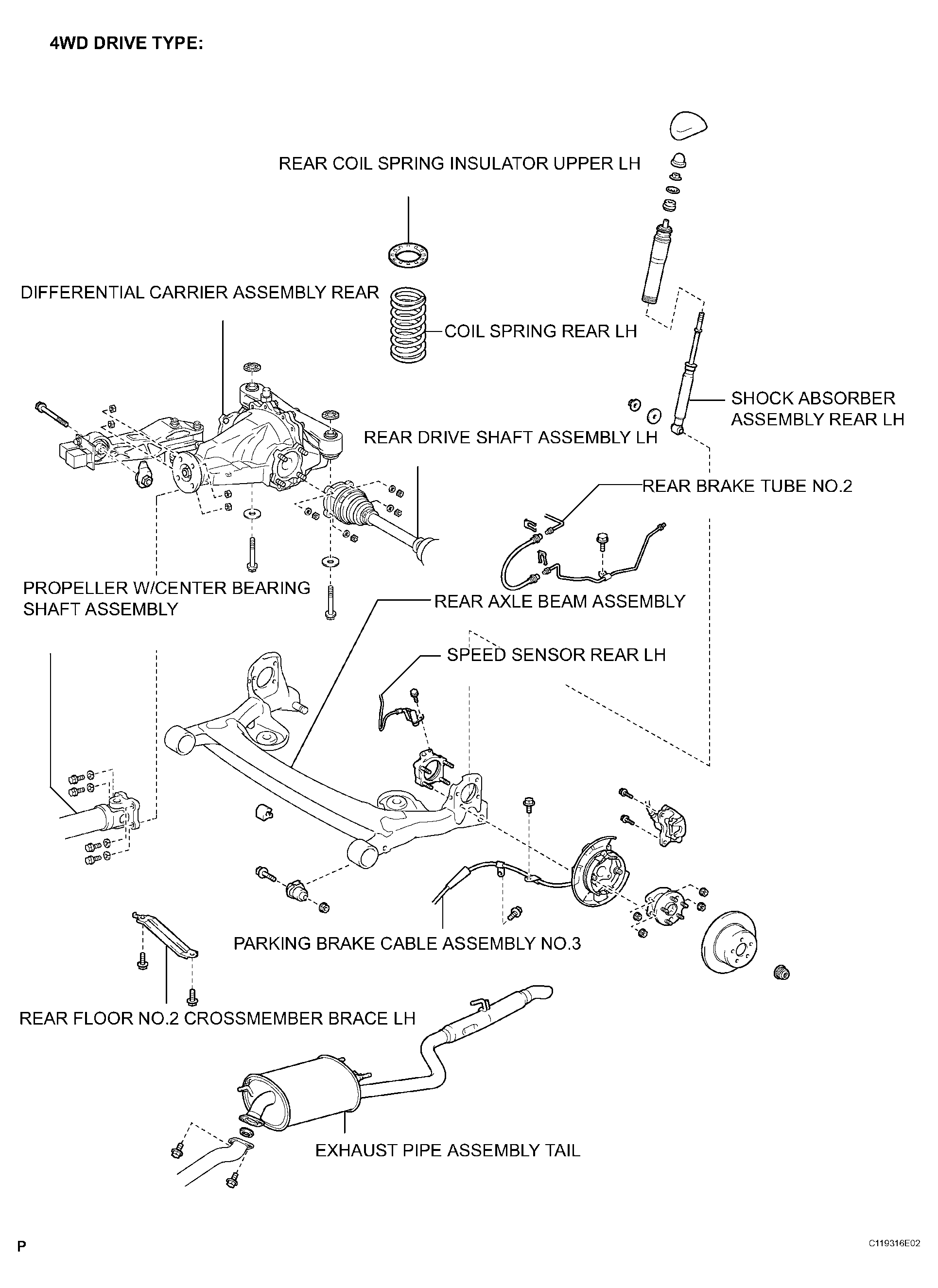

Fig 1: Identifying Rear Coil Spring Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

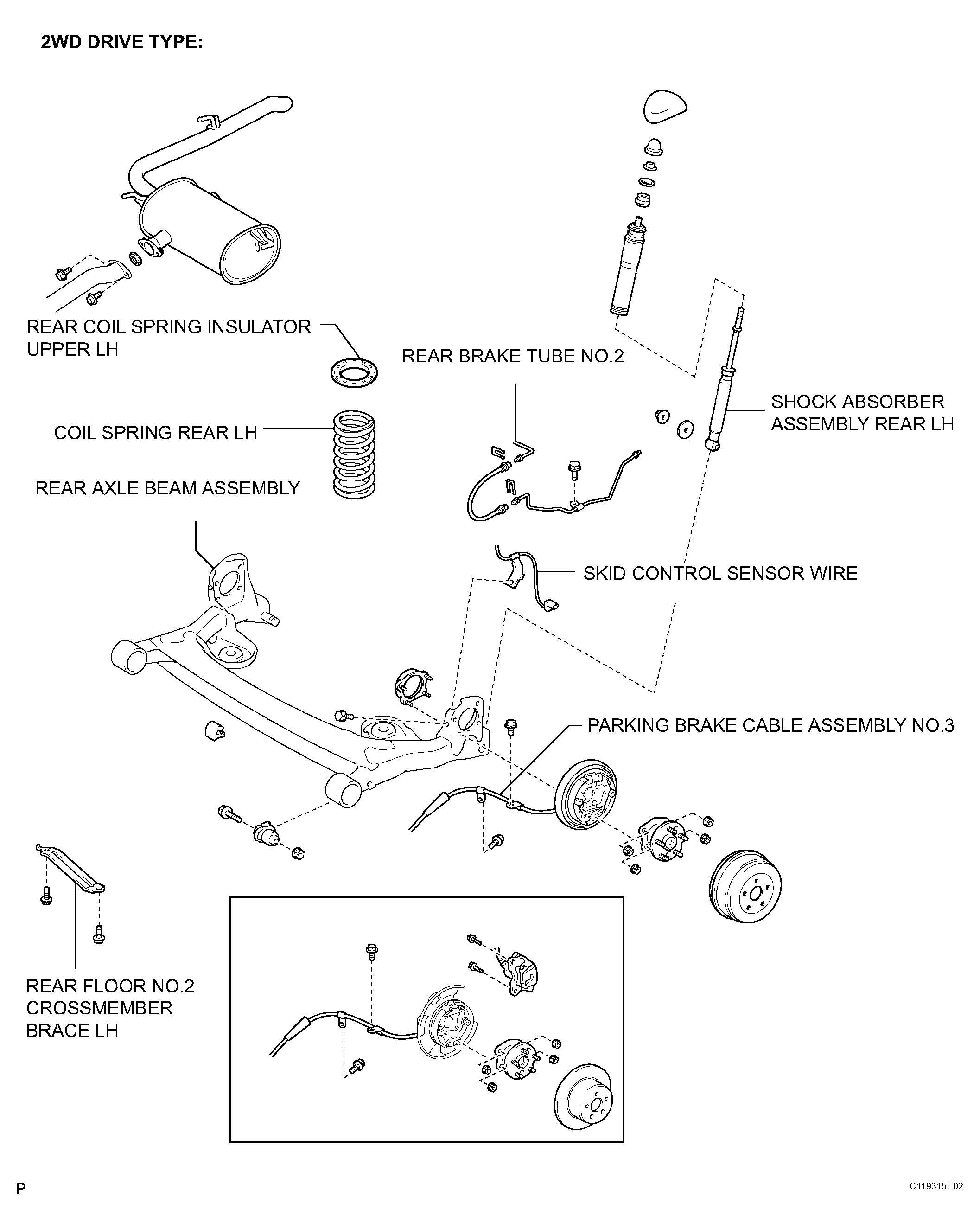

Fig 2: Identifying Rear Coil Spring Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Rear Coil Spring Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
