Radiator Fan: Notes

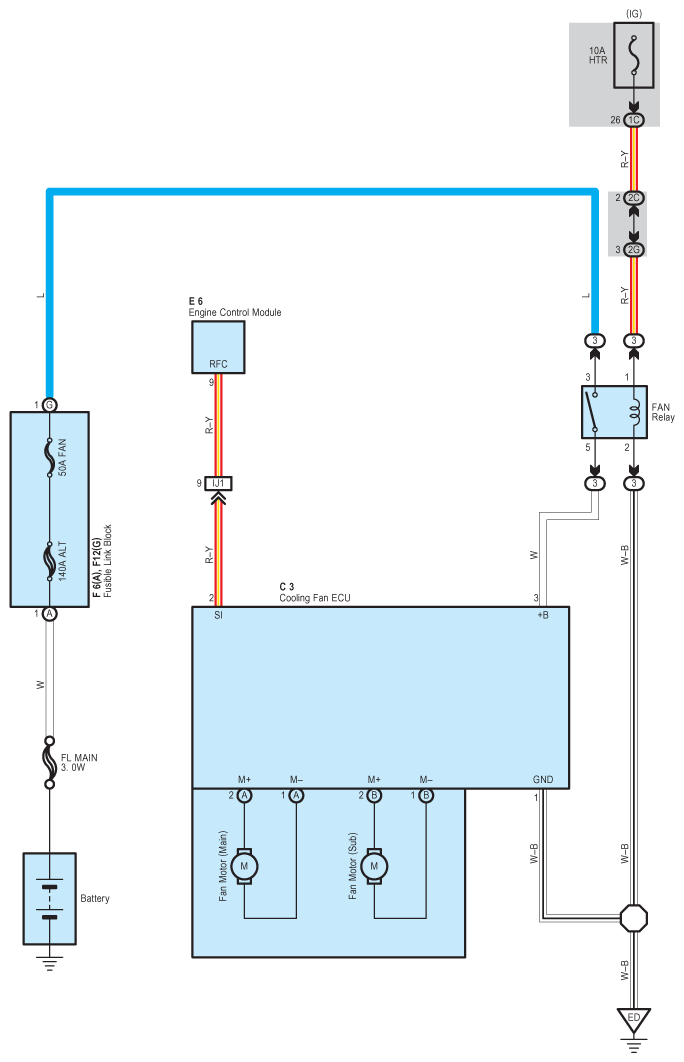

Fig 1: Radiator Fan System Wiring Diagram

G08796178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
