Power Rear No.2 Seat with Stowing Function: Notes

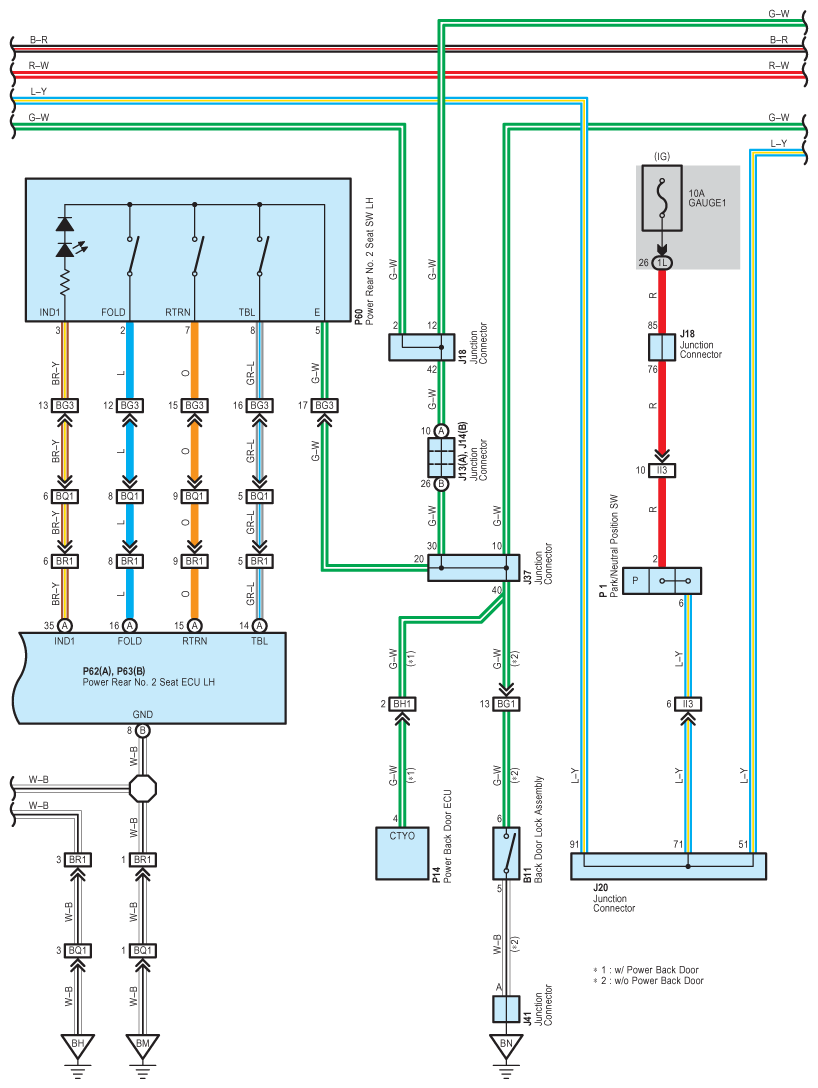

Fig 1: Power Rear No. 2 Seat System (With Stowing Function) Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

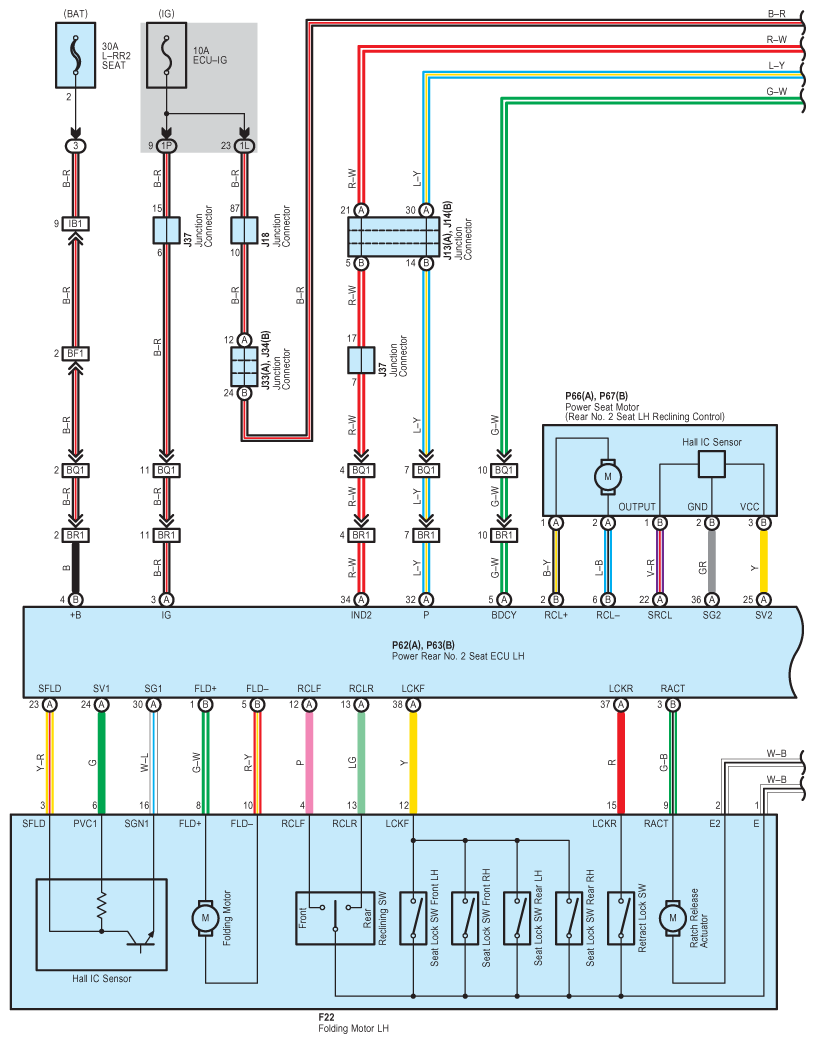

Fig 2: Power Rear No. 2 Seat System (With Stowing Function) Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

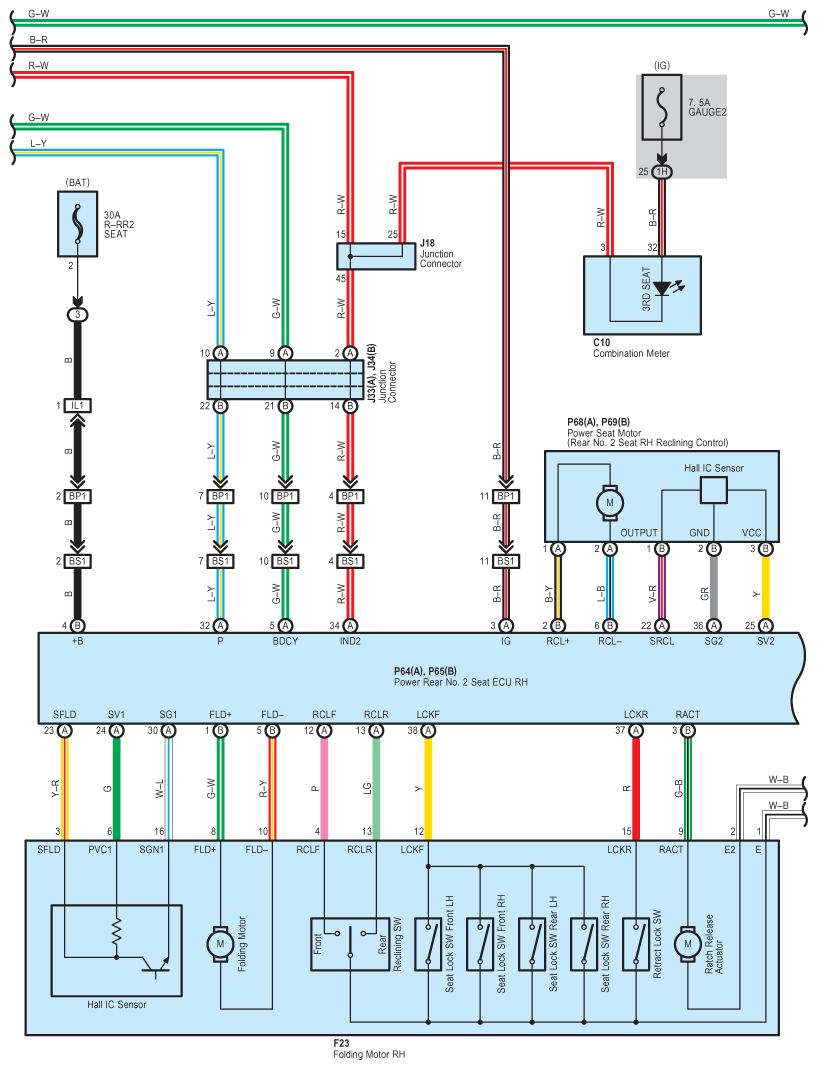

Fig 3: Power Rear No. 2 Seat System (With Stowing Function) Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

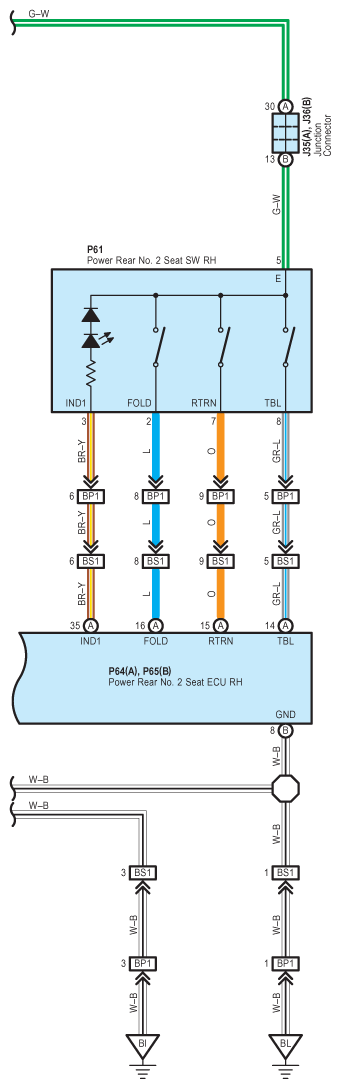

Fig 4: Power Rear No. 2 Seat System (With Stowing Function) Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
