Camshaft Position Sensor: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the camshaft position sensor connector.
2. Remove the bolt, then remove the camshaft position sensor.

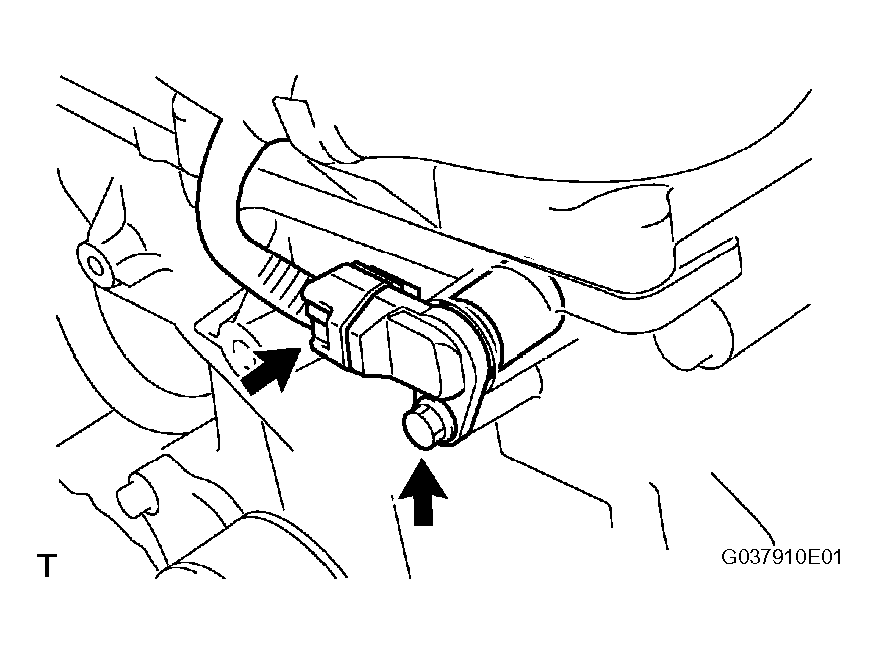

  Fig 1: Removing Camshaft Position Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
