FixVault
Home
›
Toyota
›
2006
›
Tacoma PreRunner, 2D Pickup
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2TR-FE)
›
SFI System
›
Parts Location
Parts Location

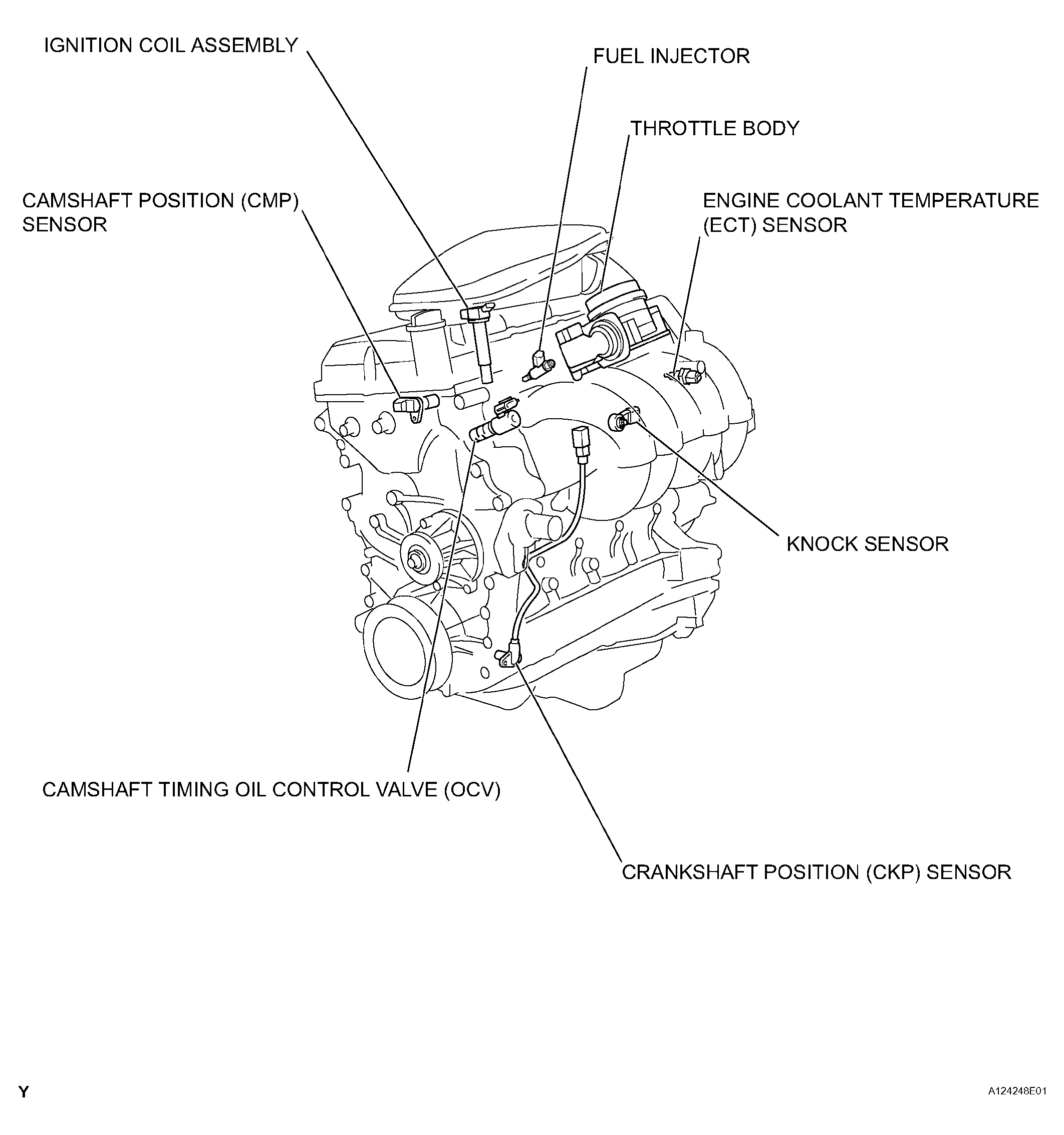

Fig 1: Identifying SFI System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

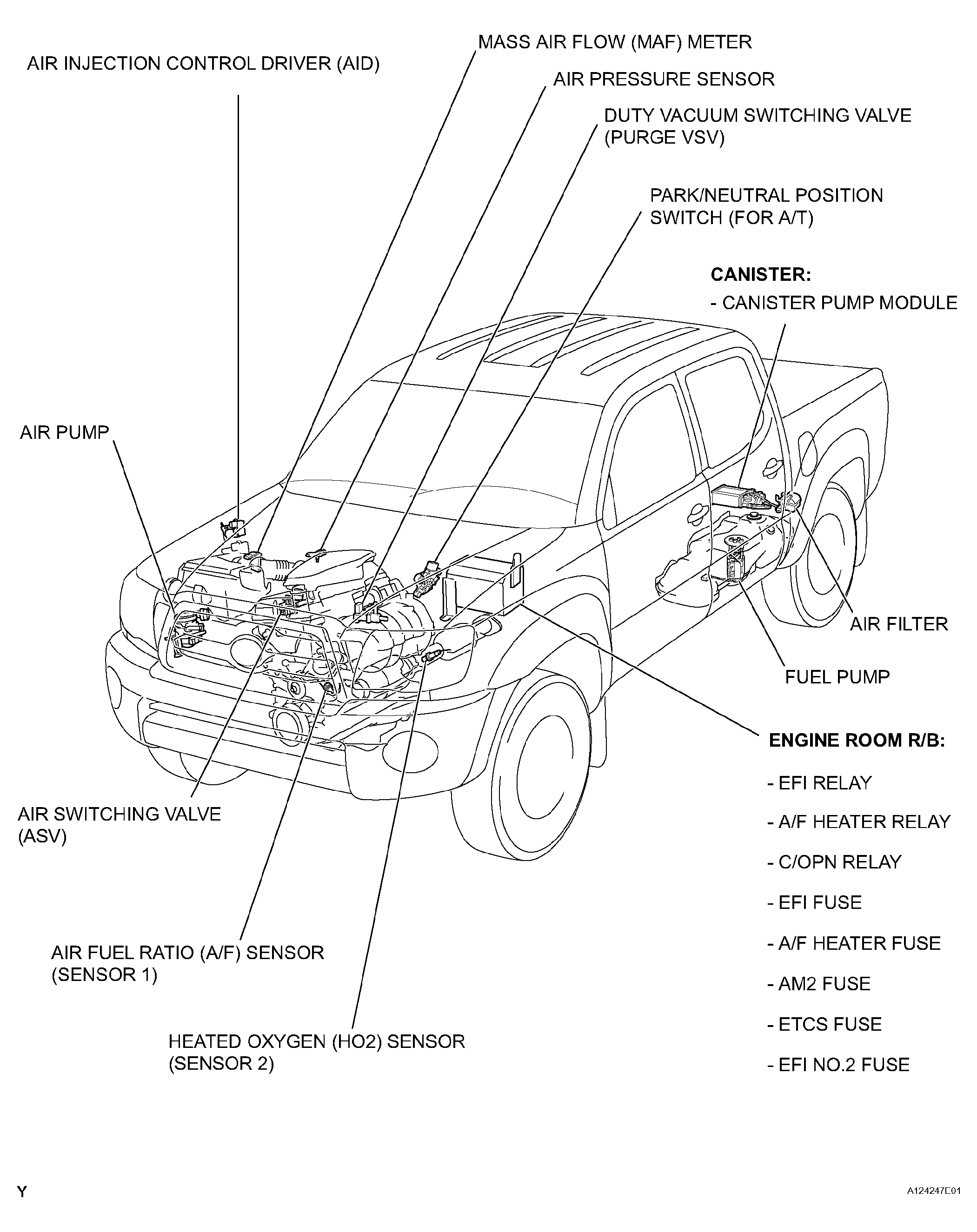

Fig 2: Identifying SFI System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

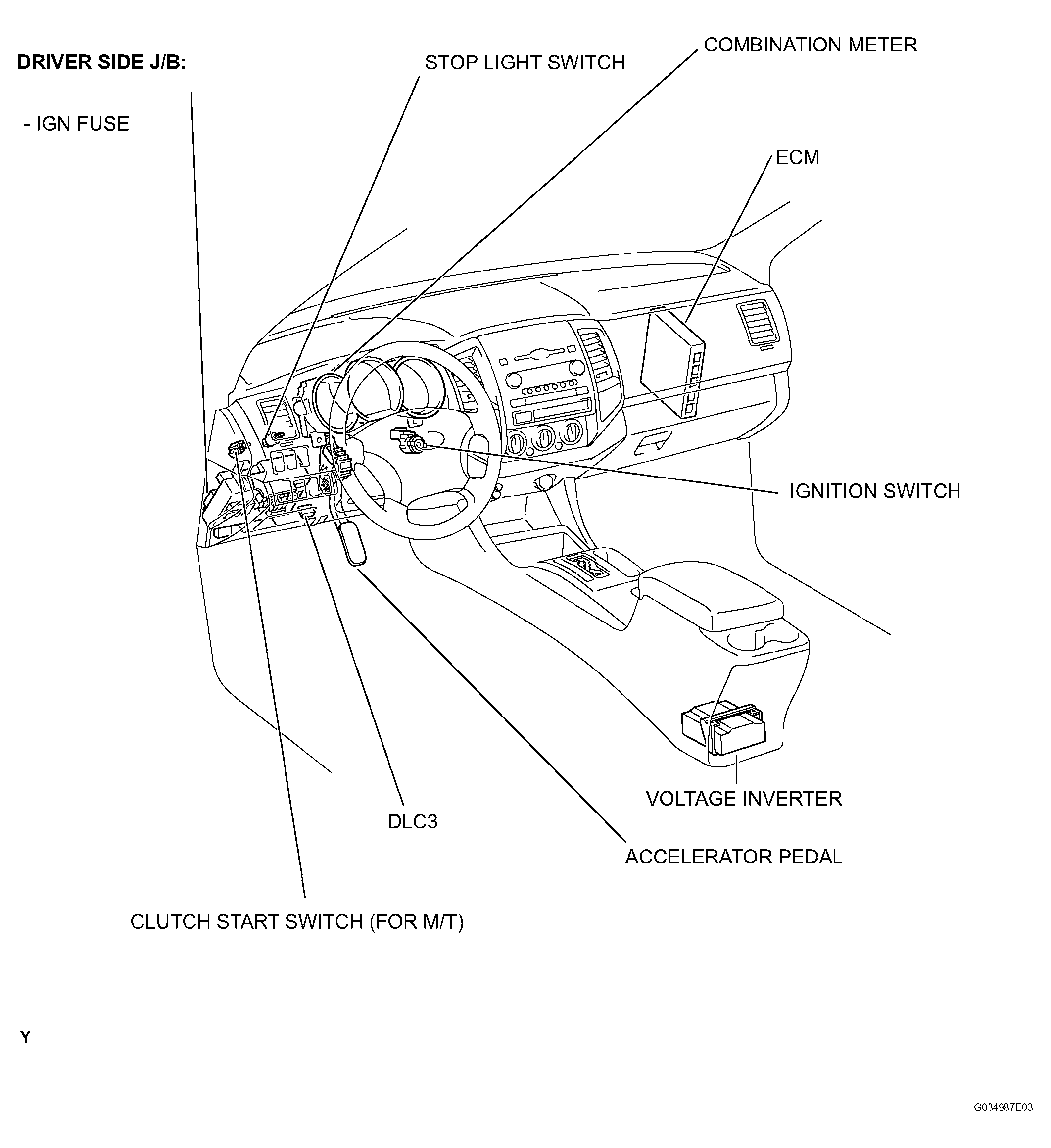

Fig 3: Identifying SFI System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
