Engine Immobiliser System for 1GR-FE: Notes

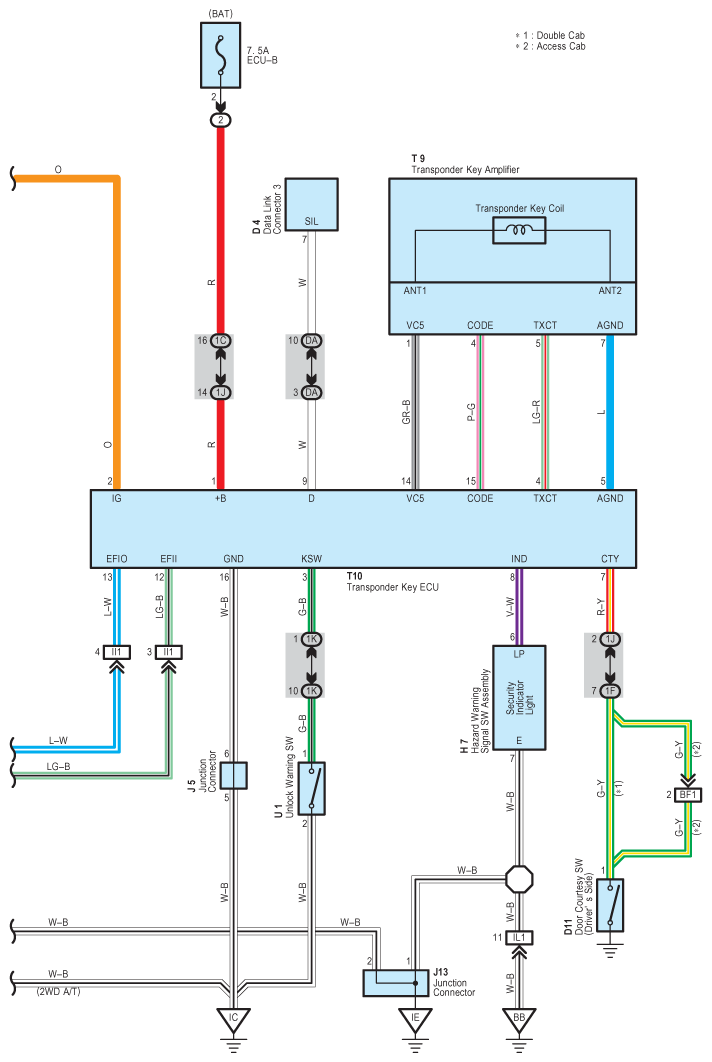

Fig 1: Engine Immobiliser System Wiring Diagram (1GR-FE; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

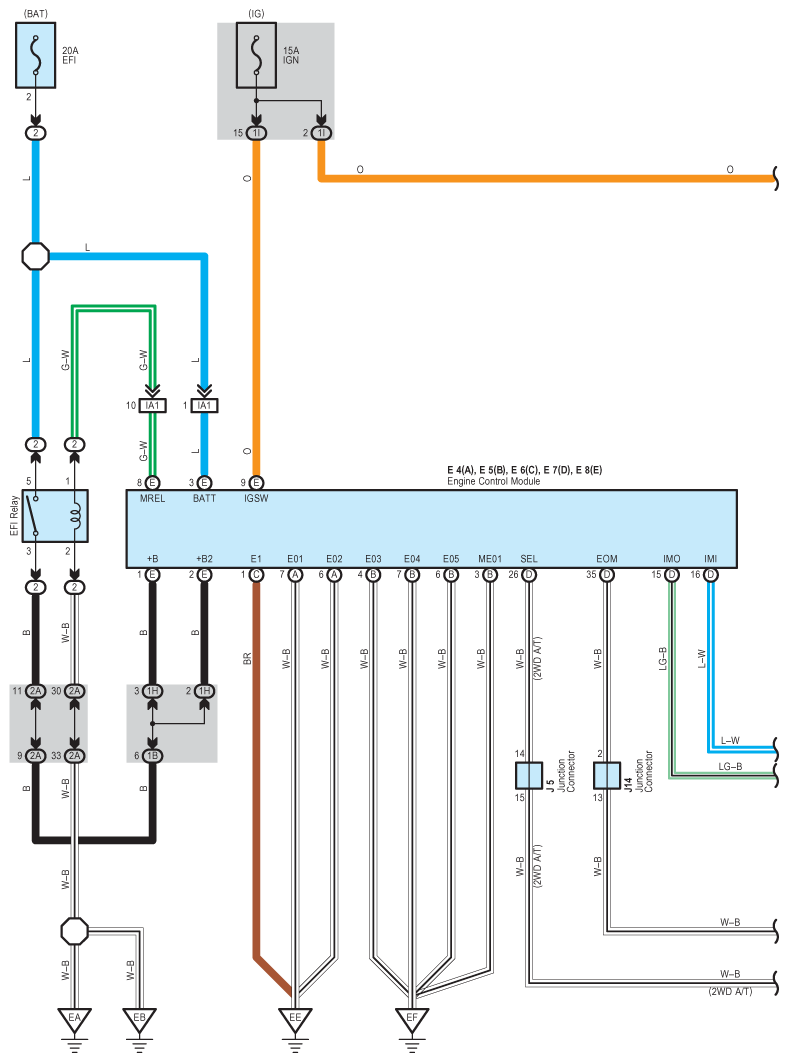

Fig 2: Engine Immobiliser System Wiring Diagram (1GR-FE; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
