Multiplex Communication System - CAN
›
Notes
Multiplex Communication System - CAN: Notes

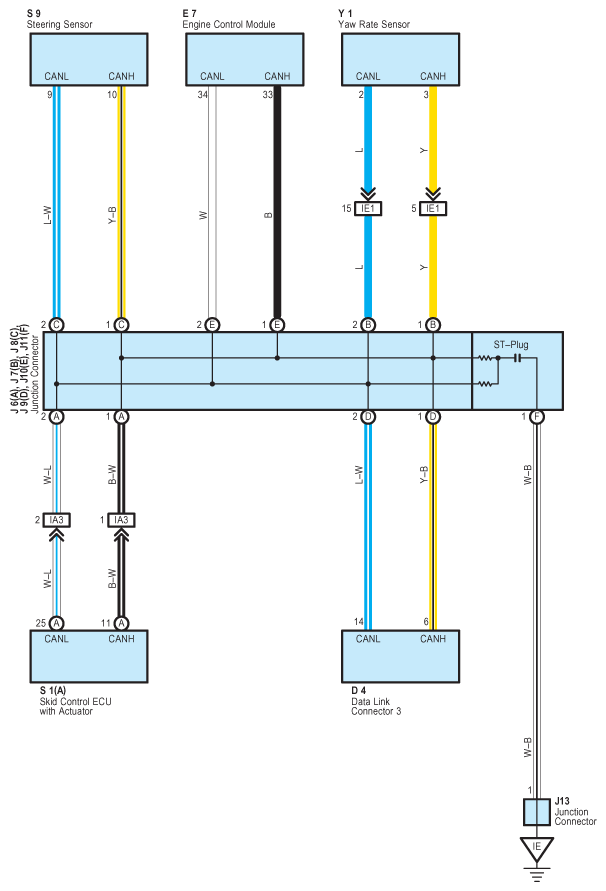

Fig 1: Multiplex Communication System Wiring Diagram (CAN)
