Tacoma X-Runner
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (1GR-FE)
›
SFI System
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

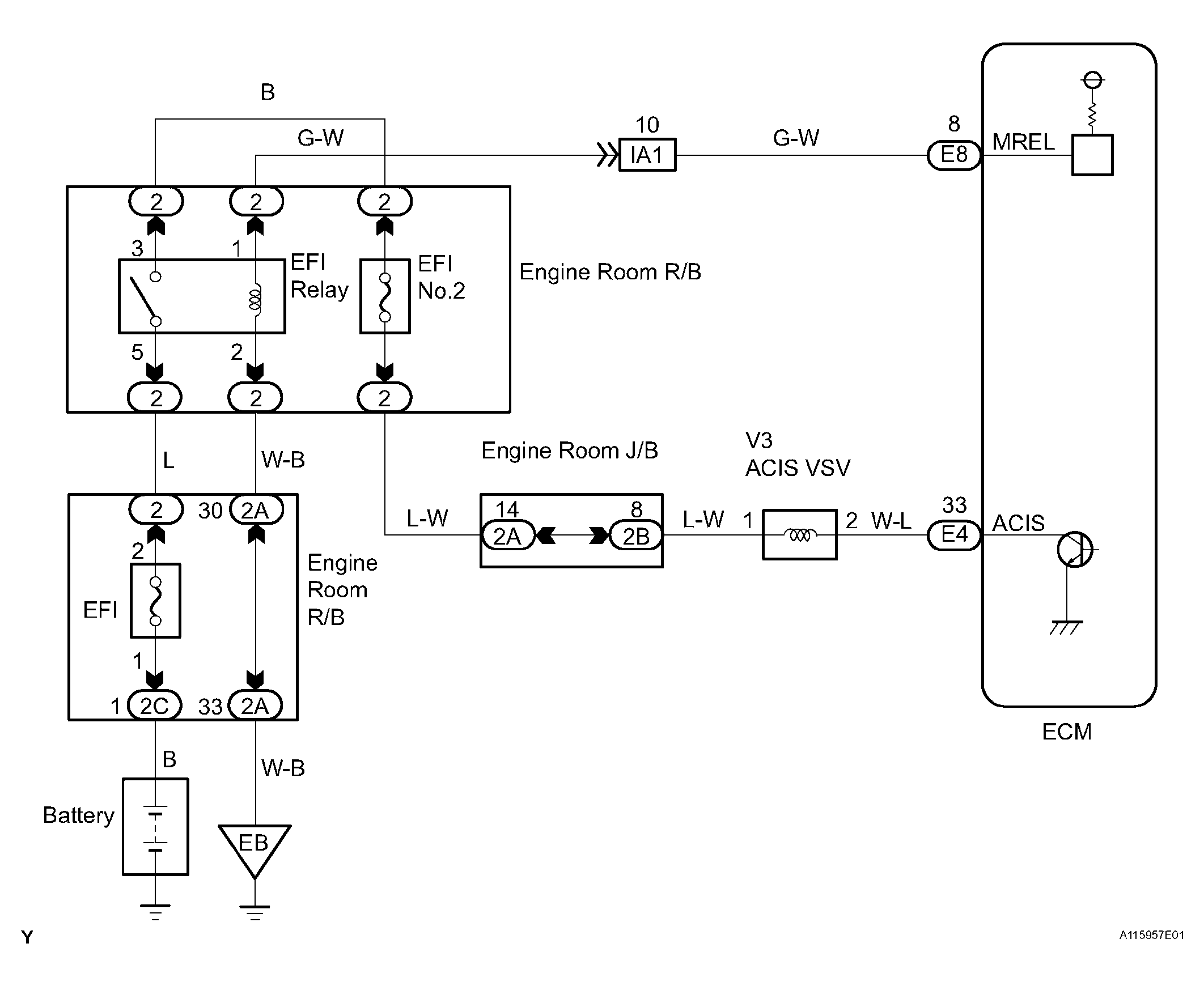

Fig 1: ACIS Control Circuit Diagram
