Throttle Body: Components

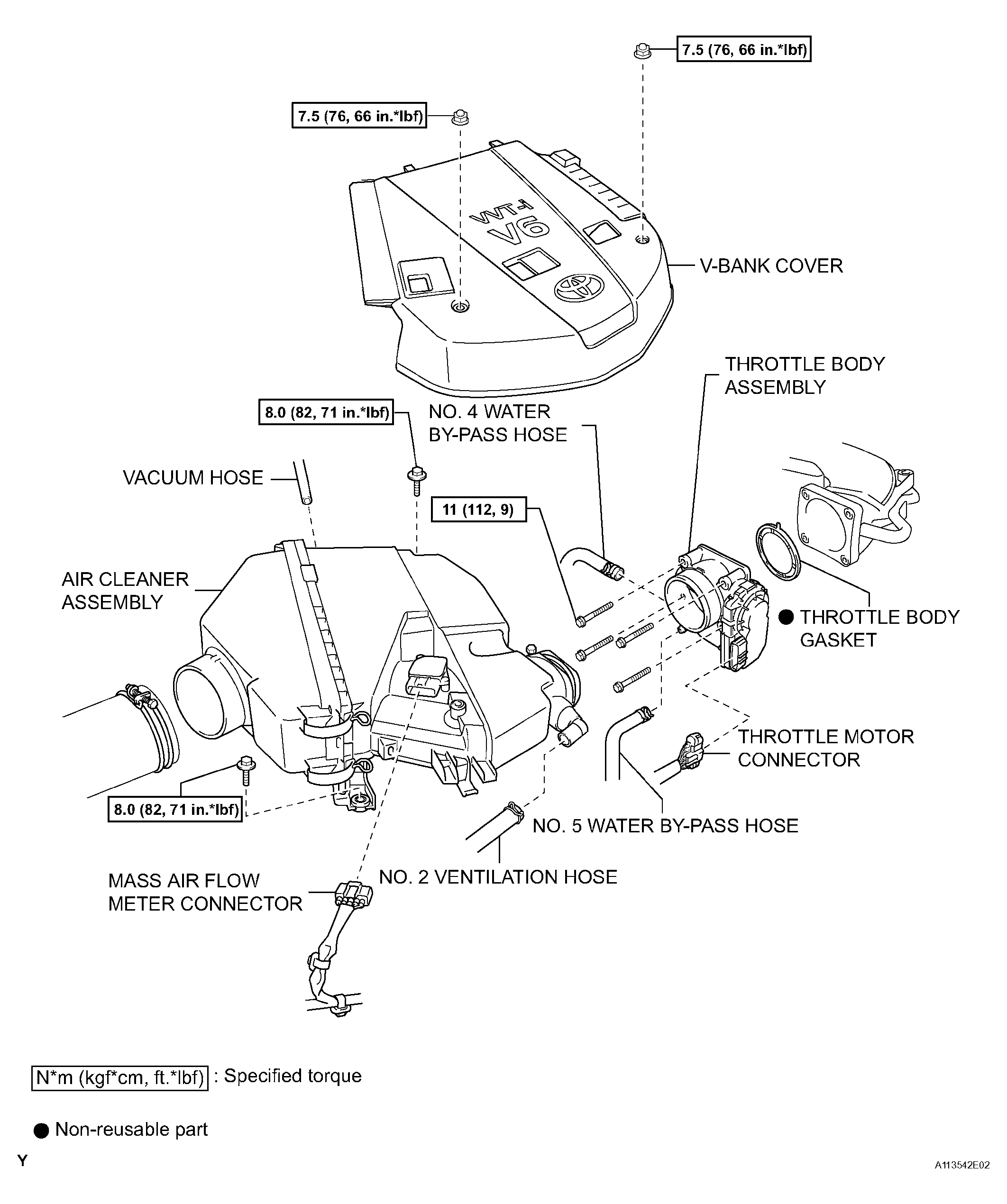

Fig 1: Identifying Throttle Body Components
G04407415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
