Fuel Pressure Regulator: Installation

  1. INSTALL FUEL PRESSURE REGULATOR
    1. Install the vacuum hose.
    2. Apply a light coat of spindle oil or gasoline to a new O-ring and install it to the fuel pressure regulator.
    3. Install the fuel pressure regulator with the 2 bolts.

      Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

  2. CONNECT FUEL PIPE NO.2
  3. INSTALL AIR CLEANER (See  INSTALLATION  )

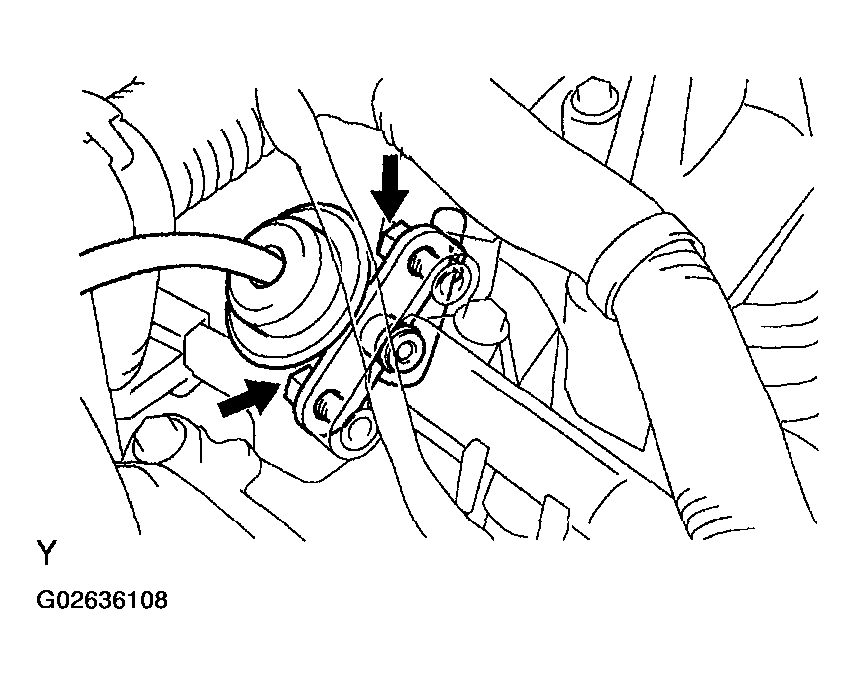

    Fig 1: Installing Fuel Pressure Regulator With 2 Bolts
    G02636108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL V-BANK COVER
  5. CHECK FOR FUEL LEAKS
