Fuel Pump: Disassembly

REMOVE FUEL SENDER GAUGE

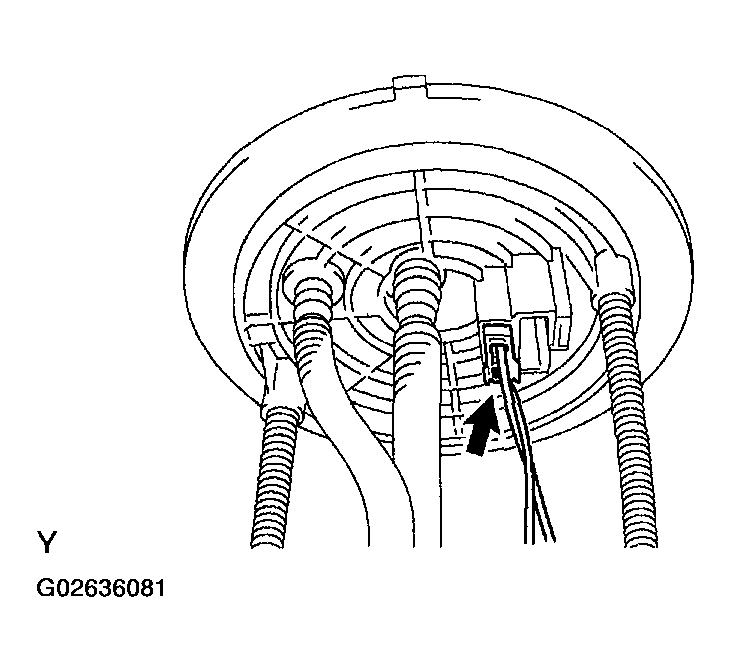

1. Disconnect the sender gauge connector from the fuel suction plate No.1.

  Fig 1: Disconnecting Sender Gauge Connector From Fuel Suction Plate No
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

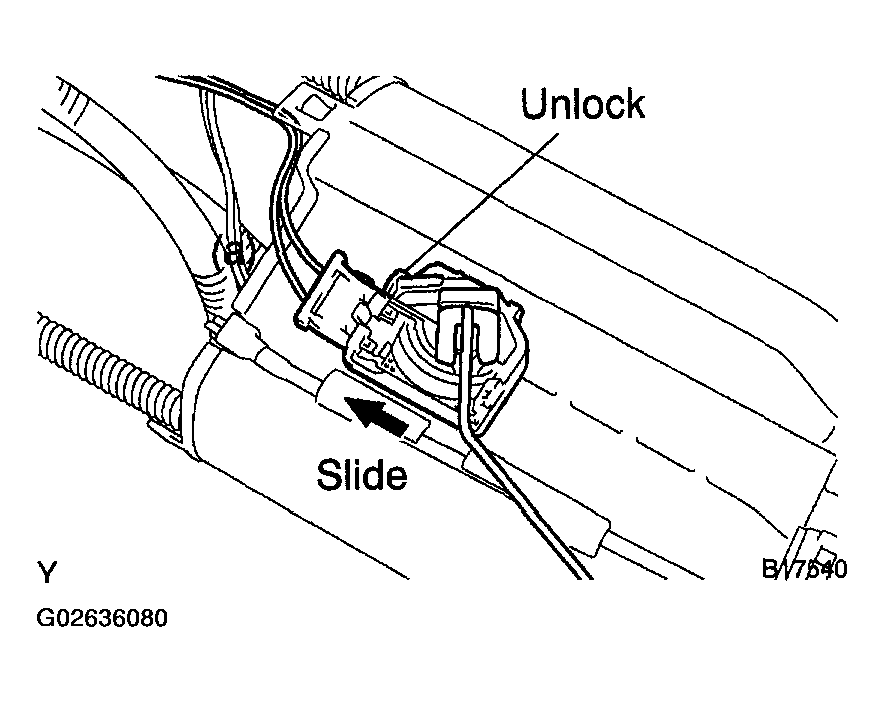

2. Unlock the fuel sender gauge and slide to remove.
Fig 2: Unlocking Fuel Sender Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SUB-TANK

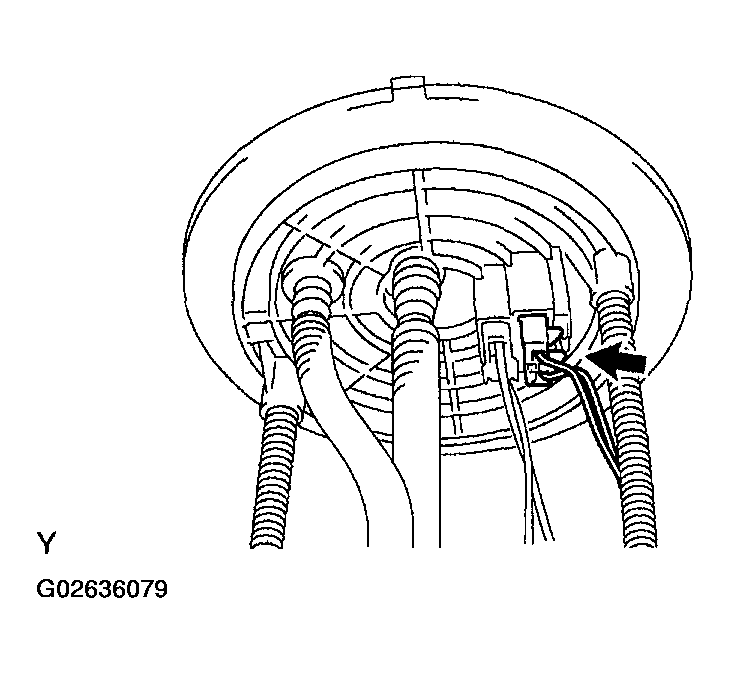

1. Disconnect the fuel pump harness connector from the fuel suction plate No.1.

  Fig 3: Disconnecting Fuel Pump Harness Connector From Fuel Suction Plate No
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the suction filter hose from the fuel sub-tank.

  Fig 4: Disconnecting Suction Filter Hose From Fuel Sub-Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

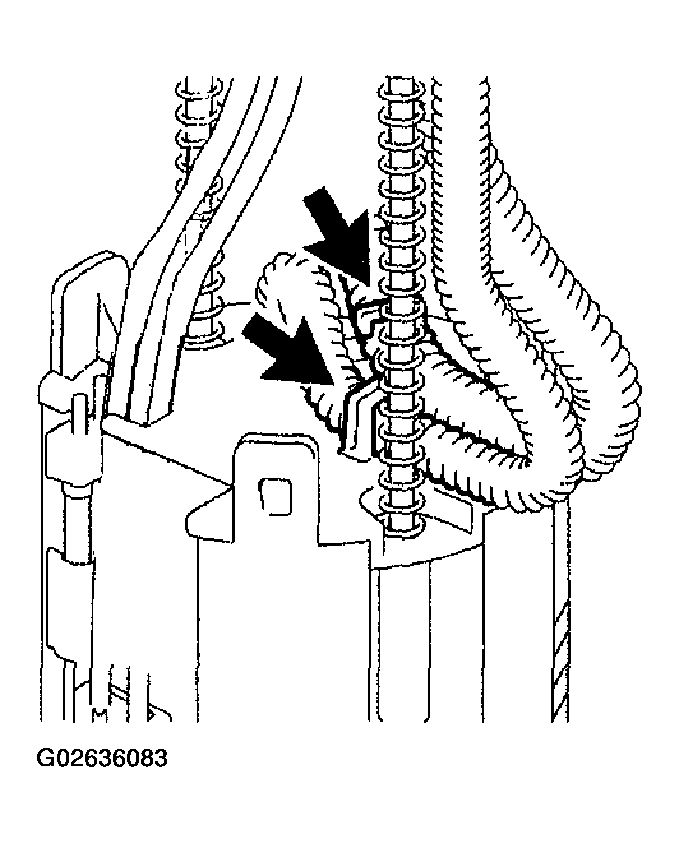

3. Disconnect the 2 tubes from the tube clamps.

  Fig 5: Disconnecting 2 Tubes From Tube Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

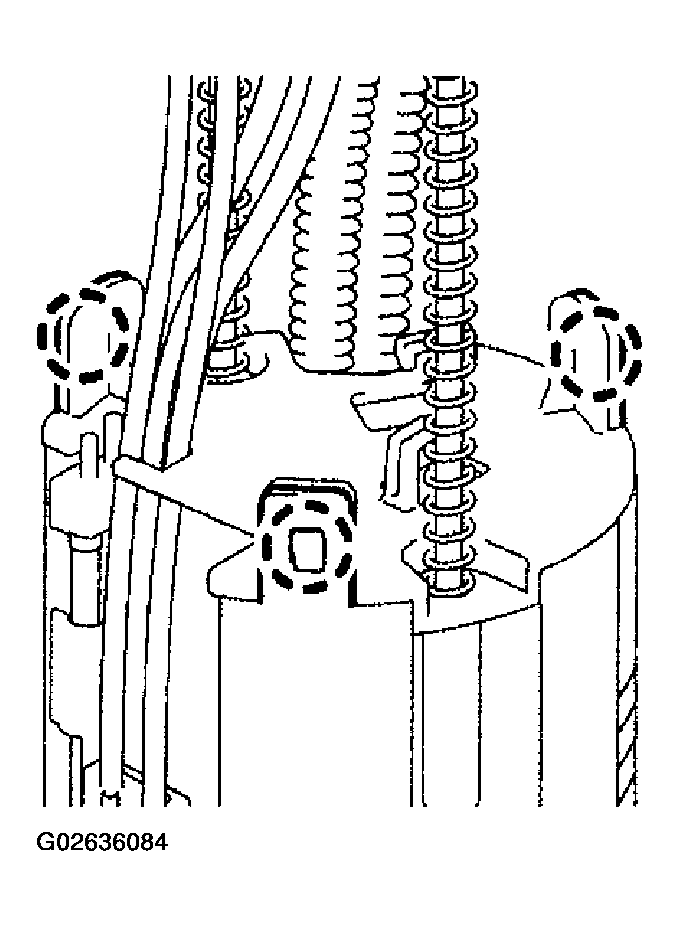

4. Using a screwdriver with the tip wrapped in tape, disconnect the 3 snap- claws from the fuel suction support No.2.
  NOTE: Do not damage the fuel suction plate No.2 and fuel sub-tank.
5. Disconnect the fuel suction plate No.1 with the fuel filter assembly from the fuel sub-tank.
Fig 6: Disconnecting 3 Snap- Claws From Fuel Suction Support No.2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL FILTER WITH FUEL PUMP
1. Using a screwdriver with the tip wrapped in tape, disconnect the 2 snap- claws from the fuel suction support.
  NOTE: Do not damage the fuel filter assembly and fuel suction support.
2. Remove the fuel filter assembly with fuel pump from the fuel suction support.
Fig 7: Disconnecting 2 Snap- Claws From Fuel Suction Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP
1. Using a screwdriver with the tip wrapped in tape, disconnect the 5 snap- claws from the suction filter.
  NOTE: Do not damage the fuel filter assembly and suction filter.
2. Remove the fuel suction filter with fuel pump from the fuel filter.

  Fig 8: Disconnecting 5 Snap- Claws From Suction Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

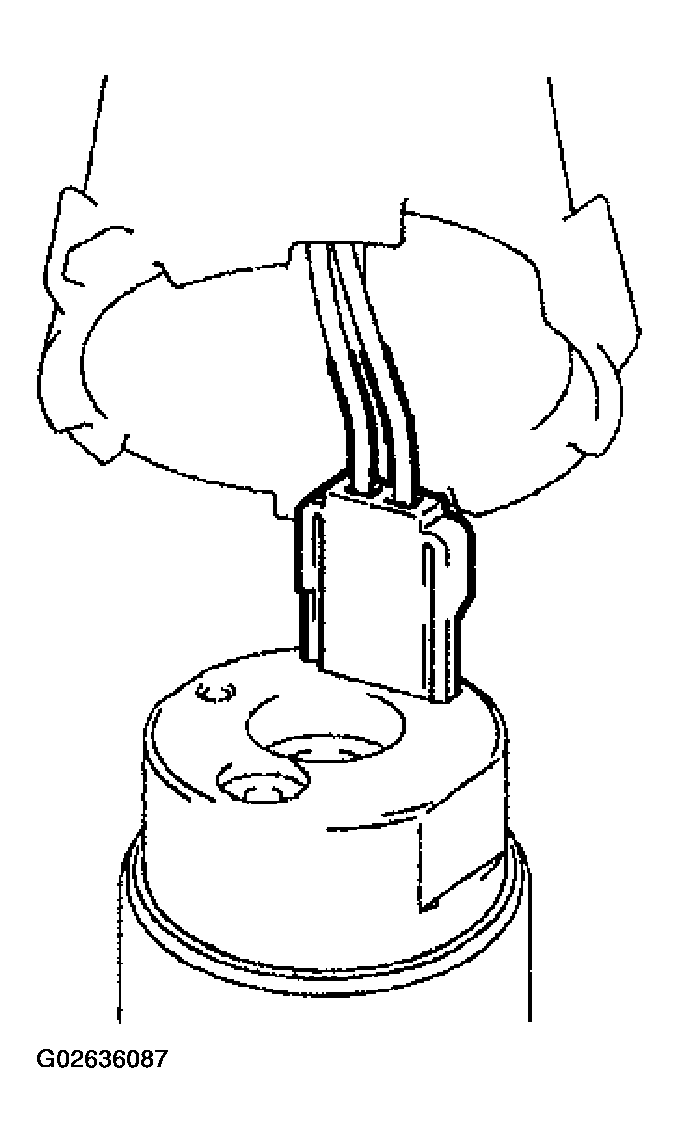

3. Disconnect the fuel pump harness from the fuel pump.

  Fig 9: Disconnecting Fuel Pump Harness From Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the O-ring from the fuel filter or fuel pump.
Fig 10: Removing O-Ring From Fuel Filter Or Fuel Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SUCTION PLATE NO.2
1. Using a screwdriver, remove the 2 E-rings from the suction plate No.2.
2. Remove the suction plate No.2 and 2 springs from the fuel suction plate No.1.
Fig 11: Removing 2 E-Rings From Suction Plate No.2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
