Fuel Pump: Reassembly

  1. REMOVE FUEL SUCTION PLATE NO.2
    1. Install the 2 springs and suction plate No.2 to the suction plate No.1.
    2. Using needle-nose pliers, install 2 new E-rings to the suction plate No.2.
    Fig 1: Installing 2 Springs And Suction Plate No.2
    G02636092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL PUMP
    1. Apply a light coat of gasoline or spindle oil to a new O-ring, and install it to the fuel pump.
      Fig 2: Applying Light Coat Of Gasoline Or Spindle Oil To A New O-Ring
      G02636093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel pump harness connector to the fuel pump.

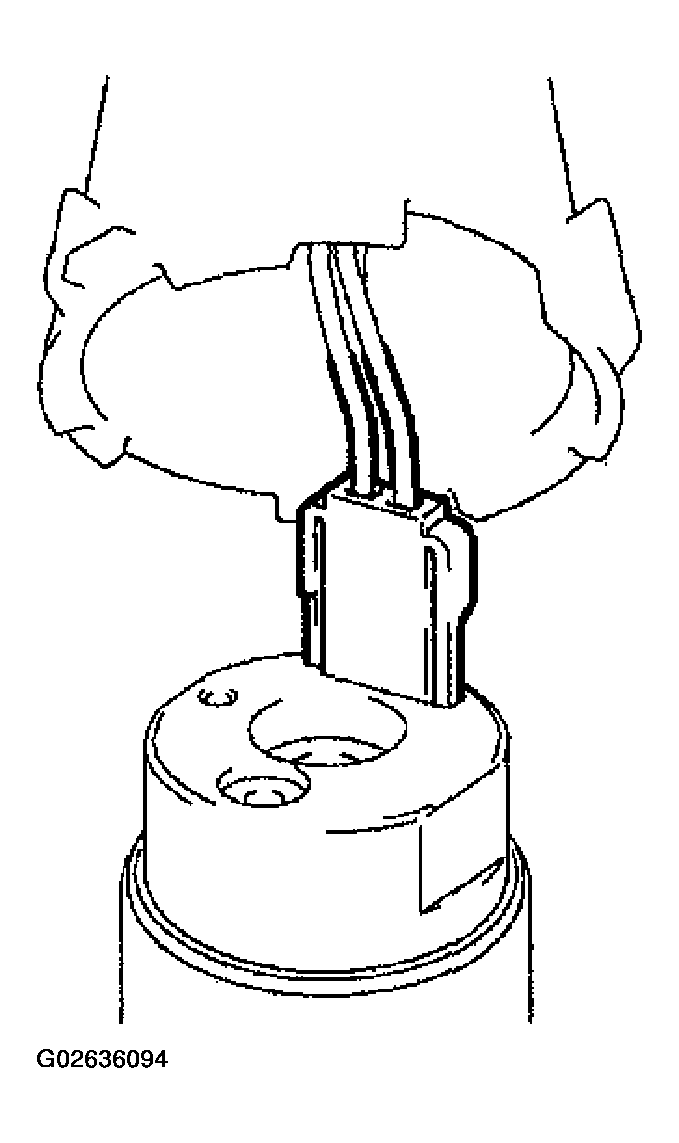

      Fig 3: Connecting Fuel Pump Harness Connector To Fuel Pump
      G02636094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the fuel pump with the suction filter to the fuel filter.
    Fig 4: Installing Fuel Pump With Suction Filter To Fuel Filter
    G02636095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FUEL FILTER

    Install the fuel filter to the fuel sub-tank.

    Fig 5: Installing Fuel Filter To Fuel Sub-Tank
    G02636096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL SUB-TANK
    1. Connect the fuel suction plate No.2 to the fuel sub-tank with the 3 snap- claws engaged.

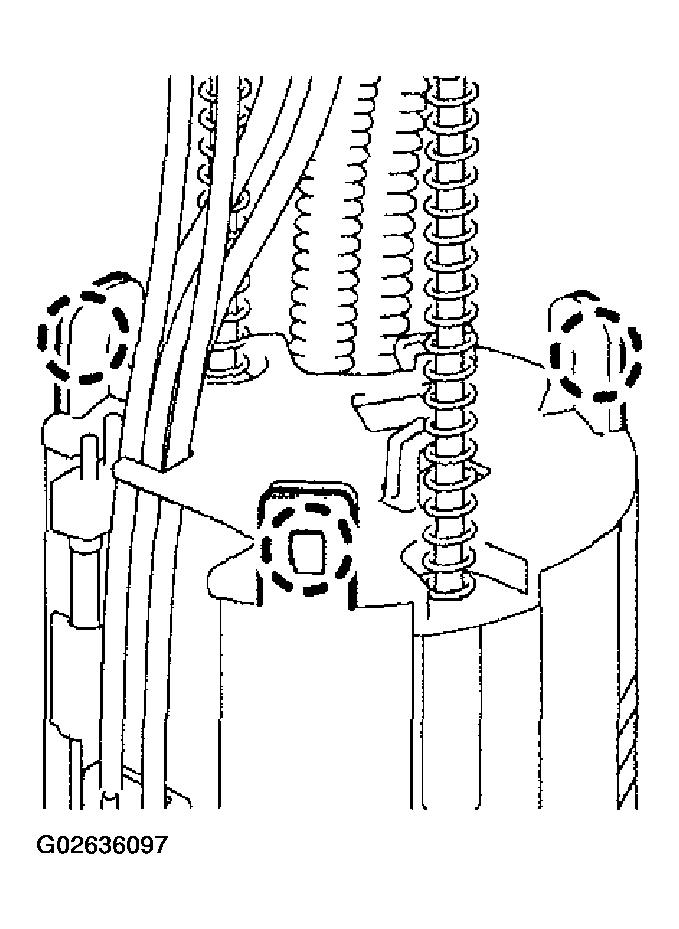

      Fig 6: Connecting Fuel Suction Plate No.2
      G02636097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 tubes to the tube clamps.

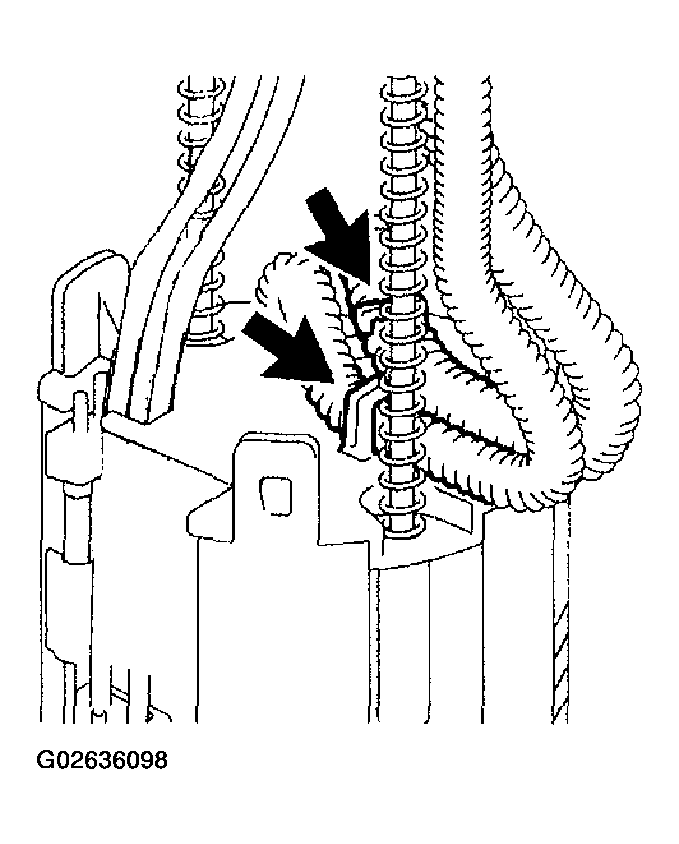

      Fig 7: Connecting 2 Tubes To Tube Clamps
      G02636098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the suction filter hose to the fuel sub-tank.
      Fig 8: Connecting Suction Filter Hose To Fuel Sub-Tank
      G02636099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the fuel pump harness connector to the fuel suction plate No.1.

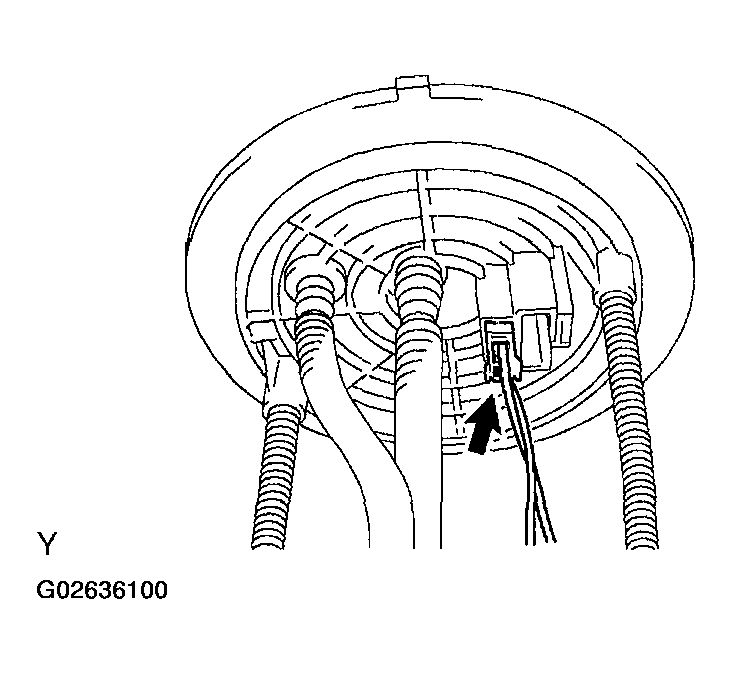

    Fig 9: Connecting fuel pump harness connector to fuel suction plate No.1
    G02636100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL SENDER GAUGE
    1. Install the fuel sender gauge to the fuel suction support.

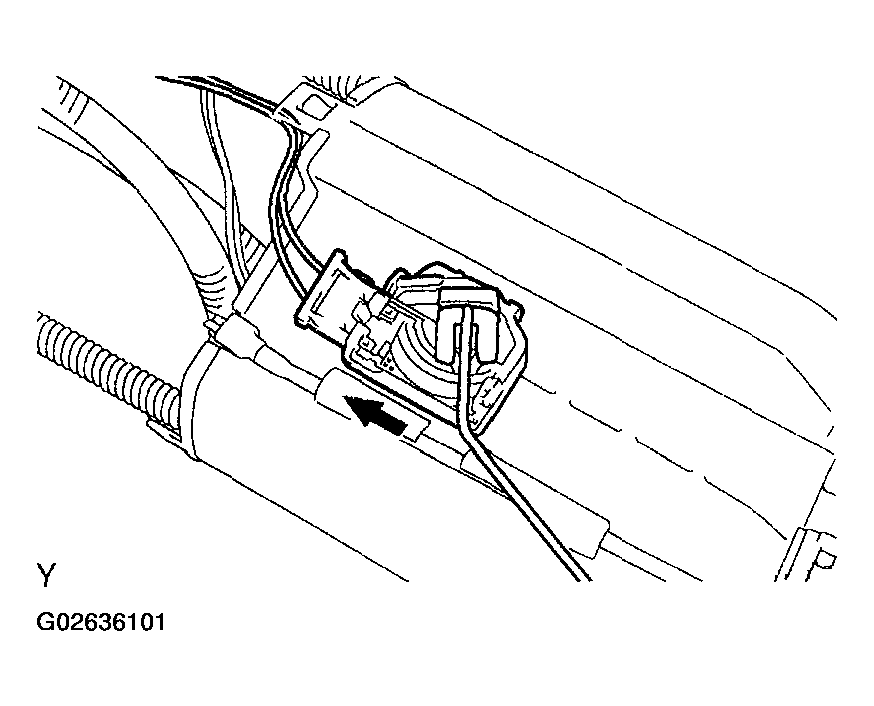

      Fig 10: Installing Fuel Sender Gauge To Fuel Suction Support
      G02636101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the sender gauge connector to the fuel suction plate No.1.

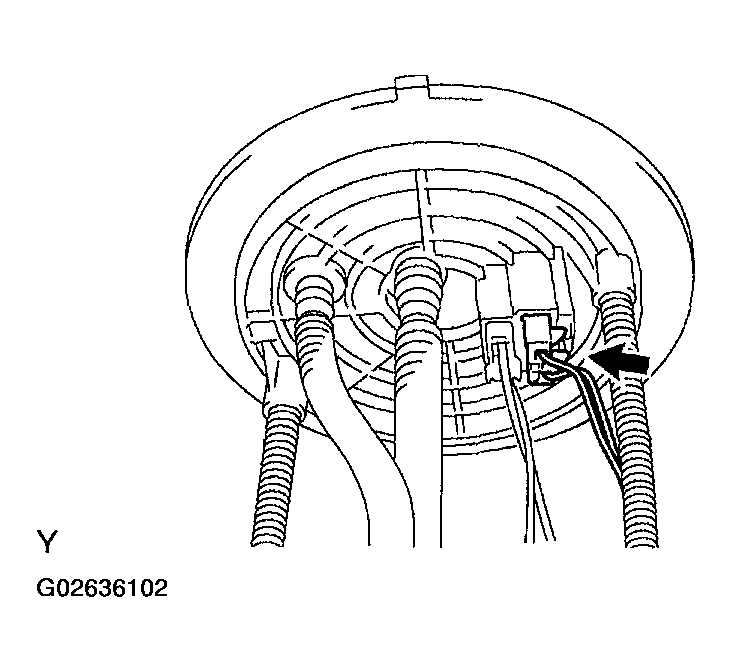

    Fig 11: Connecting Sender Gauge Connector To Fuel Suction Plate No.1
    G02636102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
