Back Window Glass: Components

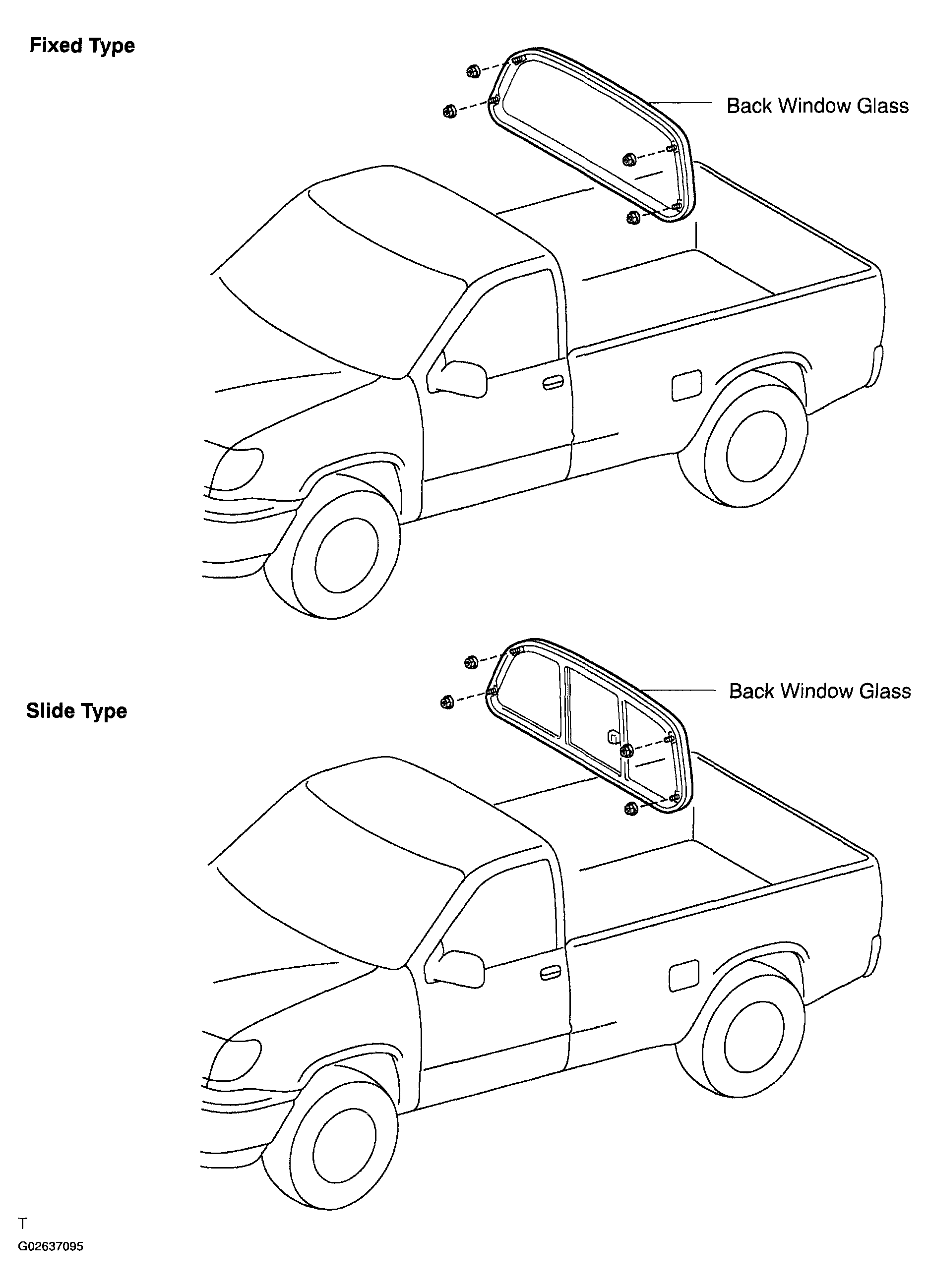

Fig 1: Identifying Components Back Window Glass

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

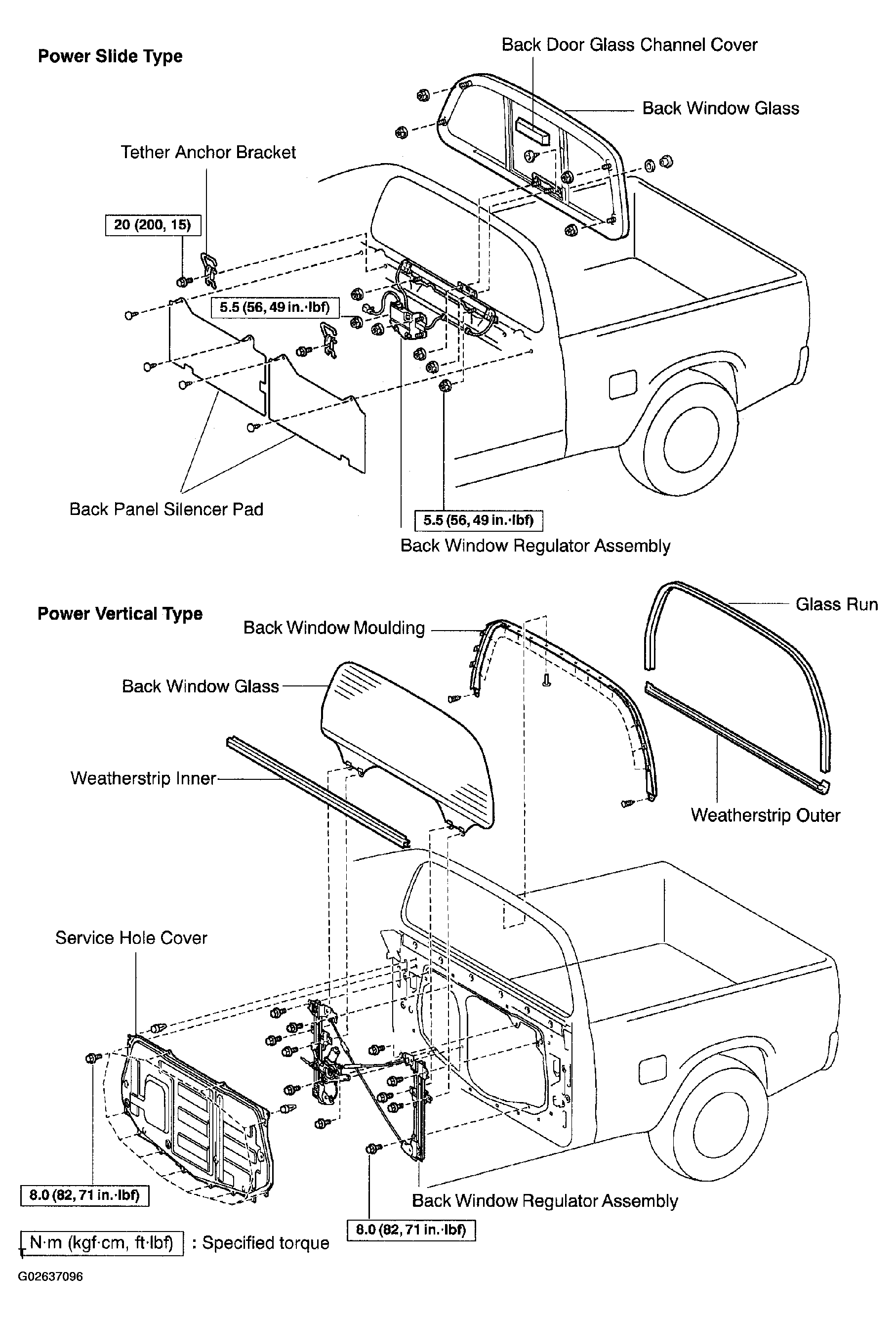

Fig 2: Replacement Components Back Window Glass With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
