EVAP System: Wiring Diagram

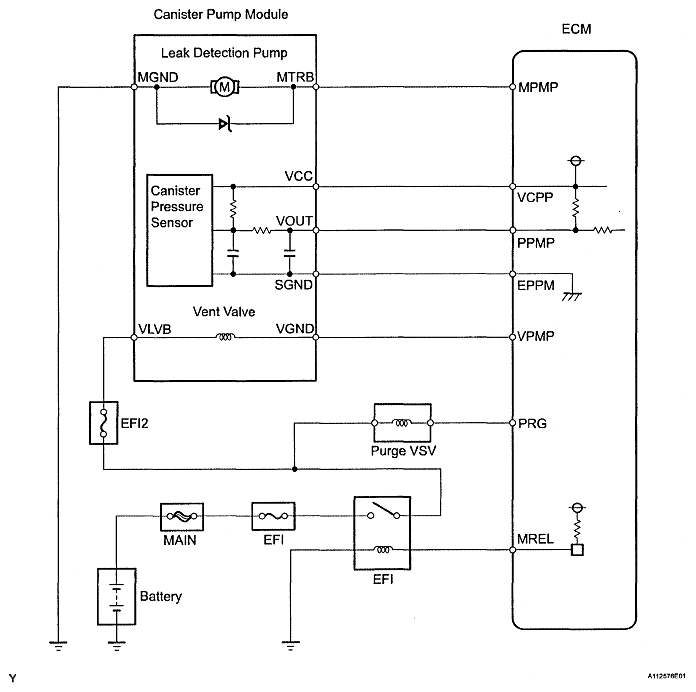

Fig 1: Identifying Evaporative Emission Control System Pressure Sensor/Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
