Yaris CE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Tune-Up
›
Engine Ignition System
›
Ignition System
›
System Diagram
System Diagram

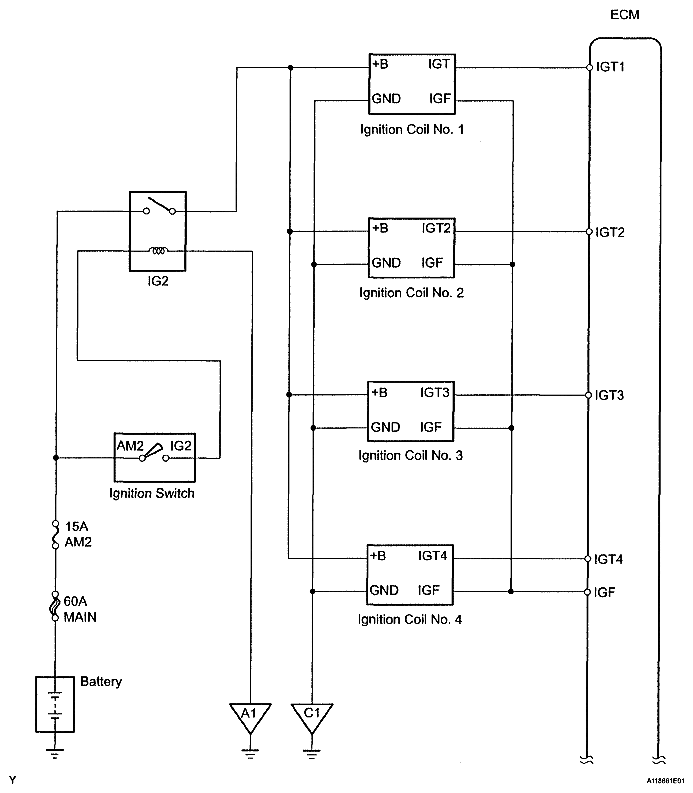

Fig 1: Identifying Ignition System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Ignition System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
