Knock Sensor: Components

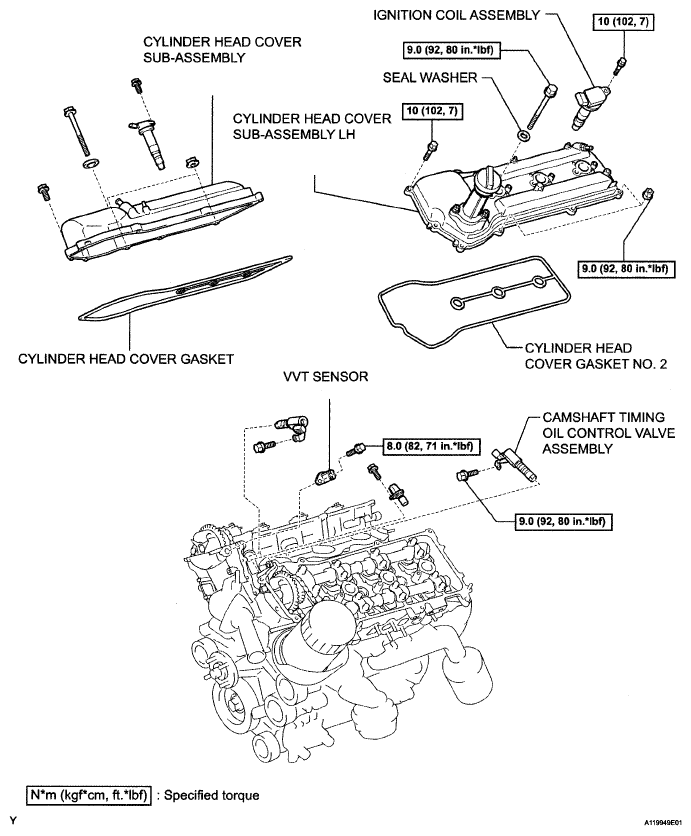

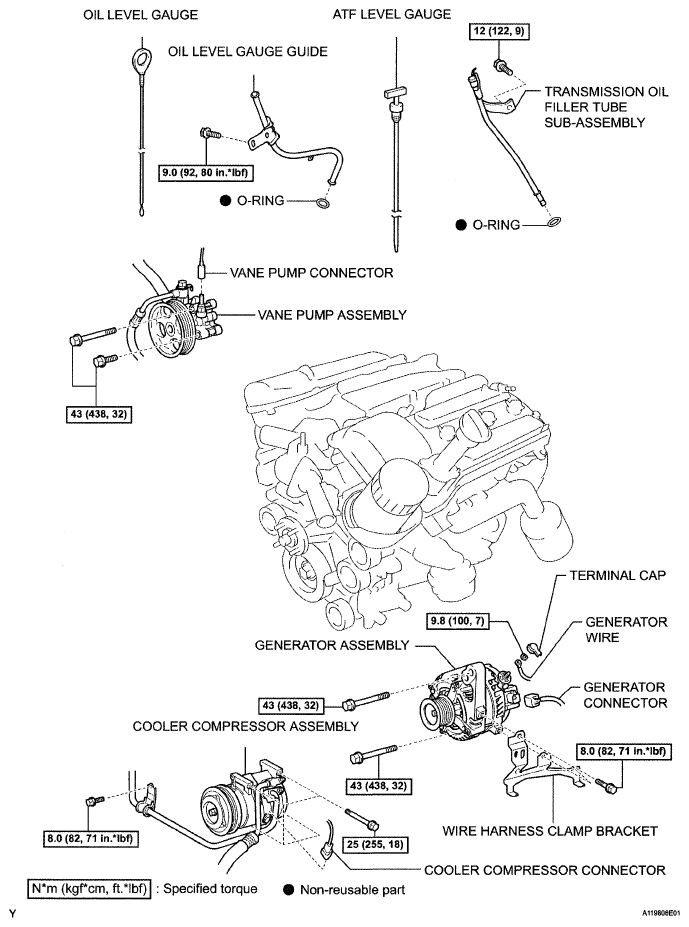

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

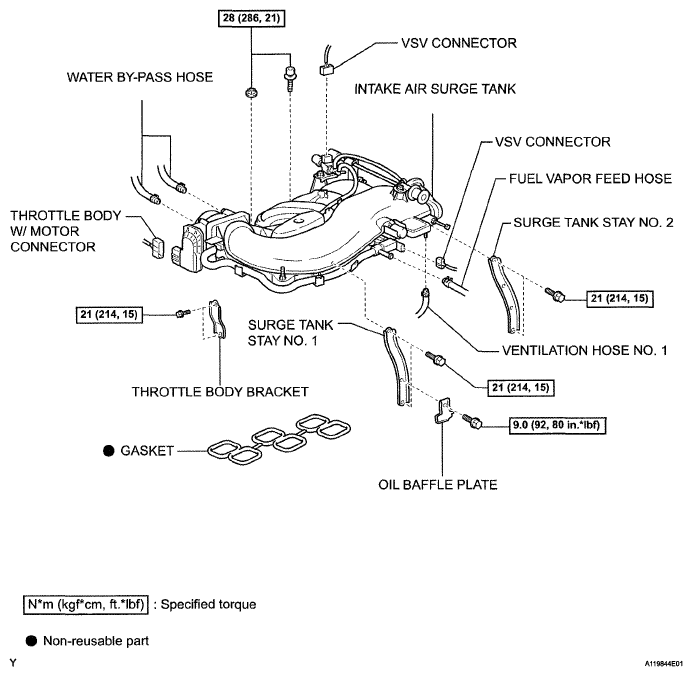

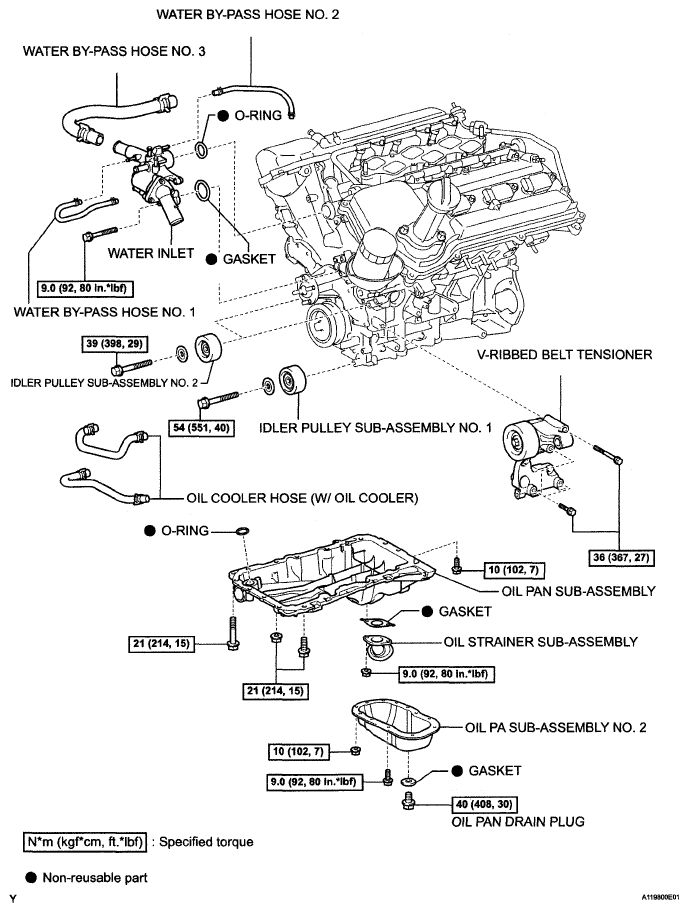

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

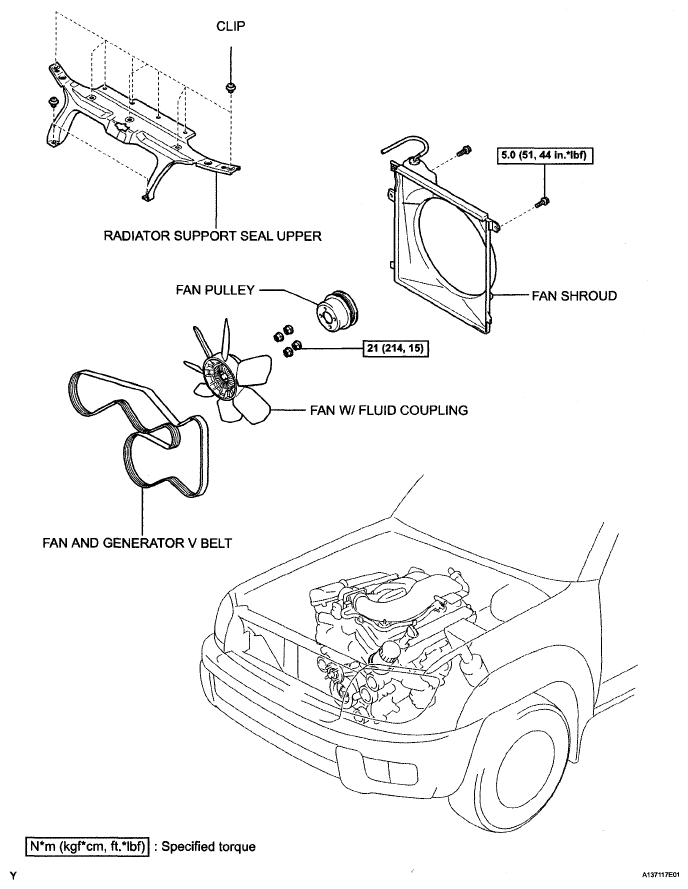

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

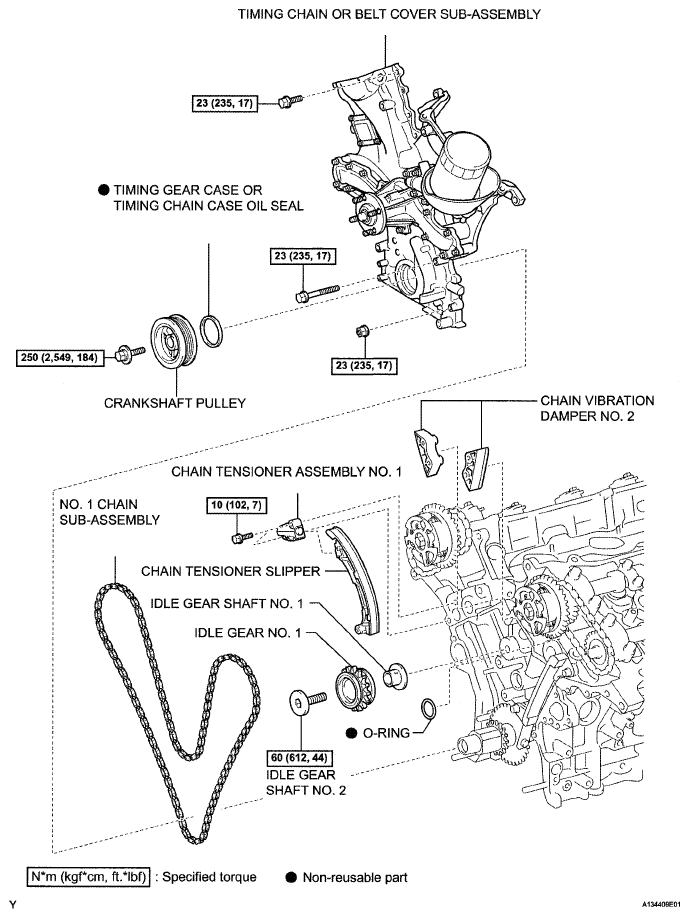

Fig 4: Knock Sensor Replacement Components With Torque Specifications (4 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

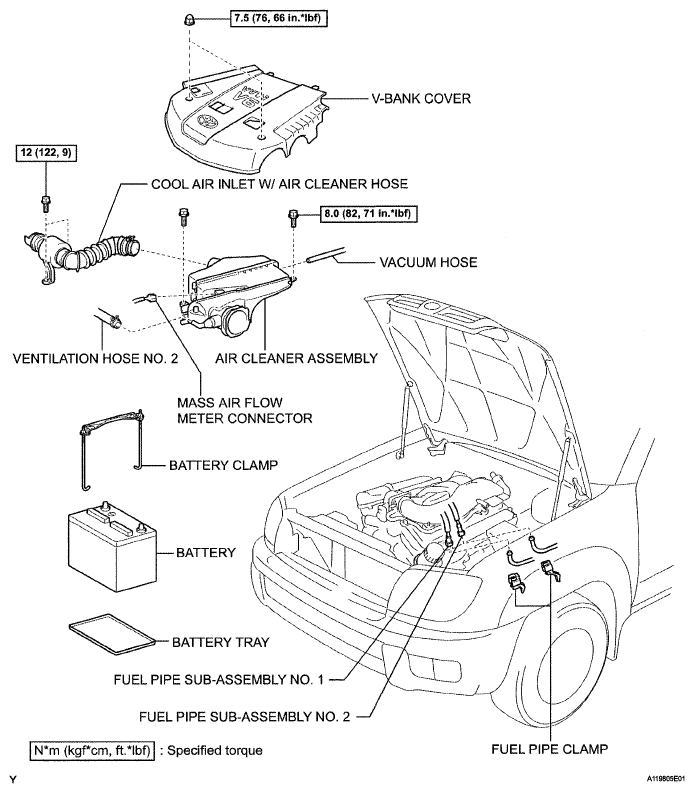

Fig 5: Knock Sensor Replacement Components With Torque Specifications (5 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

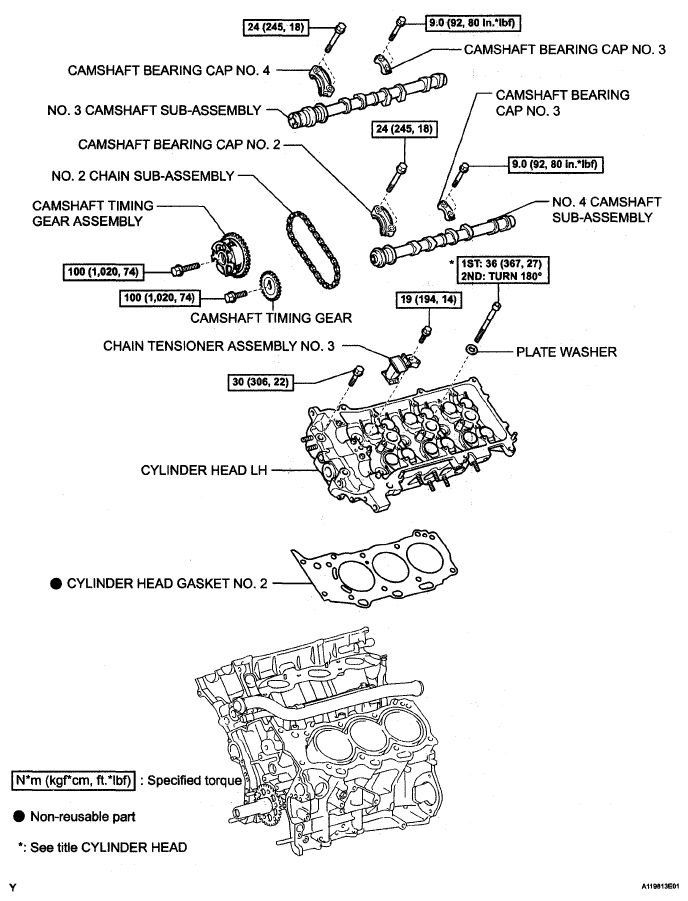

Fig 6: Knock Sensor Replacement Components With Torque Specifications (6 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

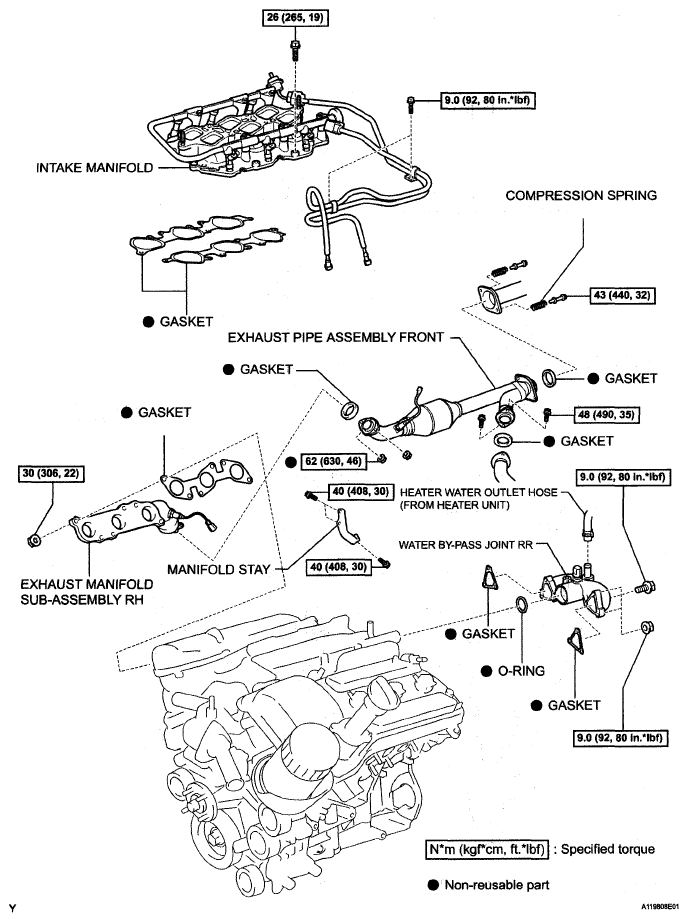

Fig 7: Knock Sensor Replacement Components With Torque Specifications (7 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

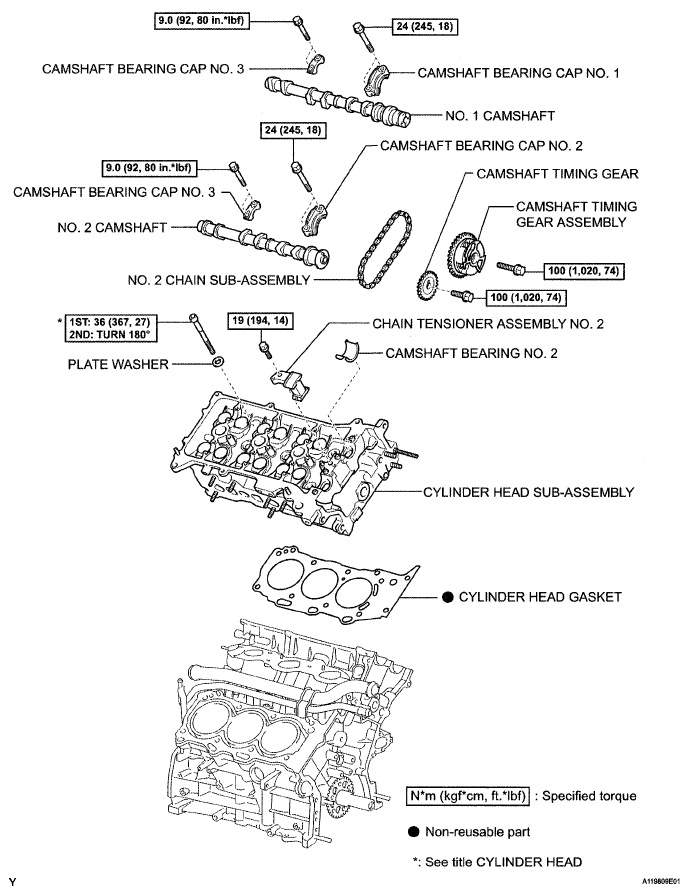

Fig 8: Knock Sensor Replacement Components With Torque Specifications (8 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 9: Knock Sensor Replacement Components With Torque Specifications (9 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 10: Knock Sensor Replacement Components With Torque Specifications (10 Of 10)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
