EVAP System: Wiring Diagram

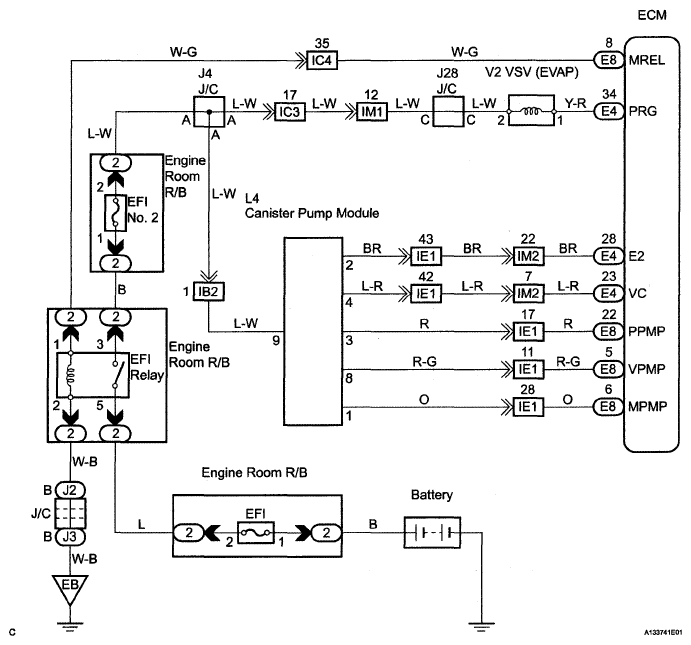

Fig 1: Canister Pump Module - Wiring Diagram

G04968143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
