4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2UZ-FE)
›
SFI System
›
System Diagram
System Diagram

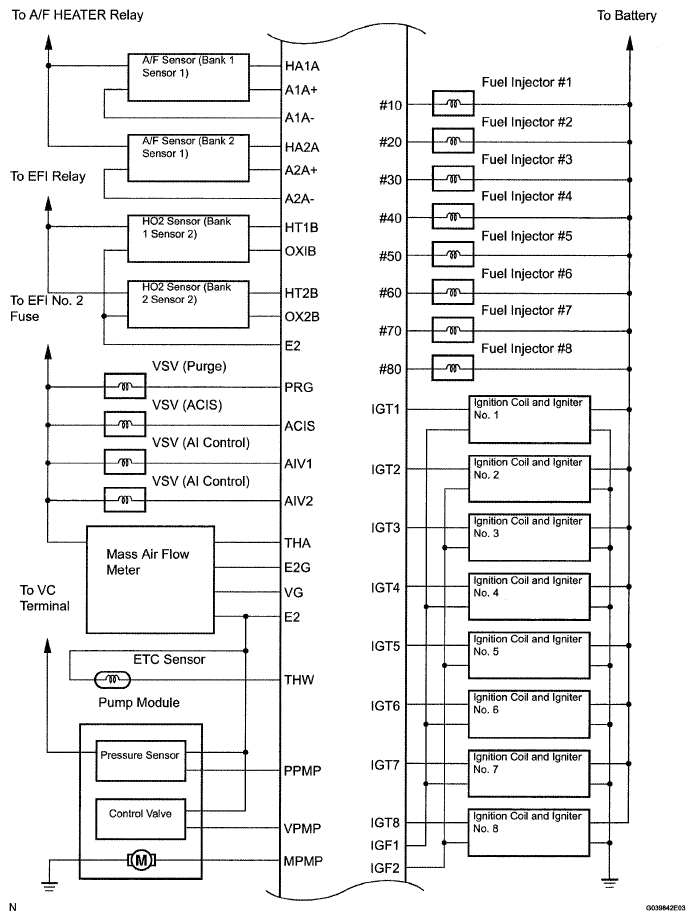

Fig 1: Engine Control System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

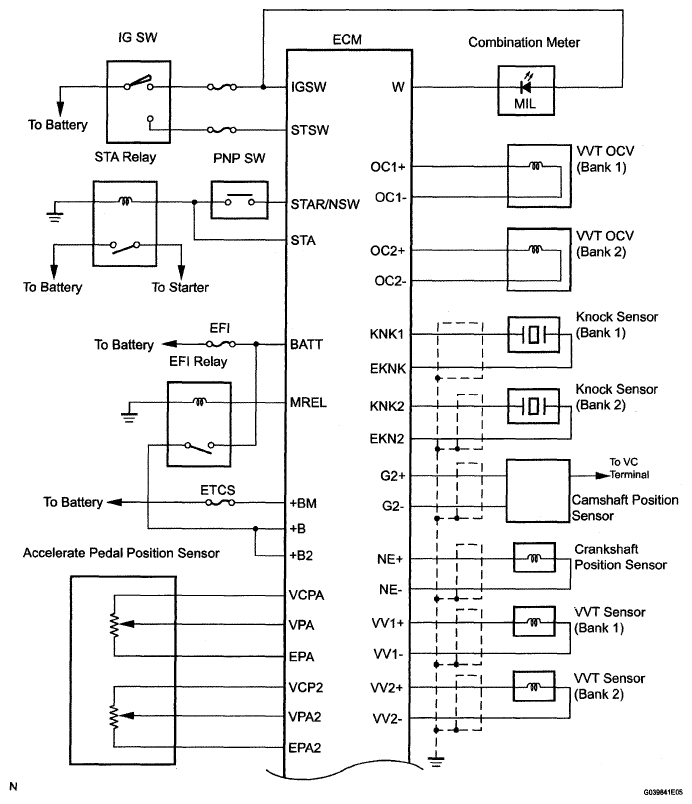

Fig 2: Engine Control System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

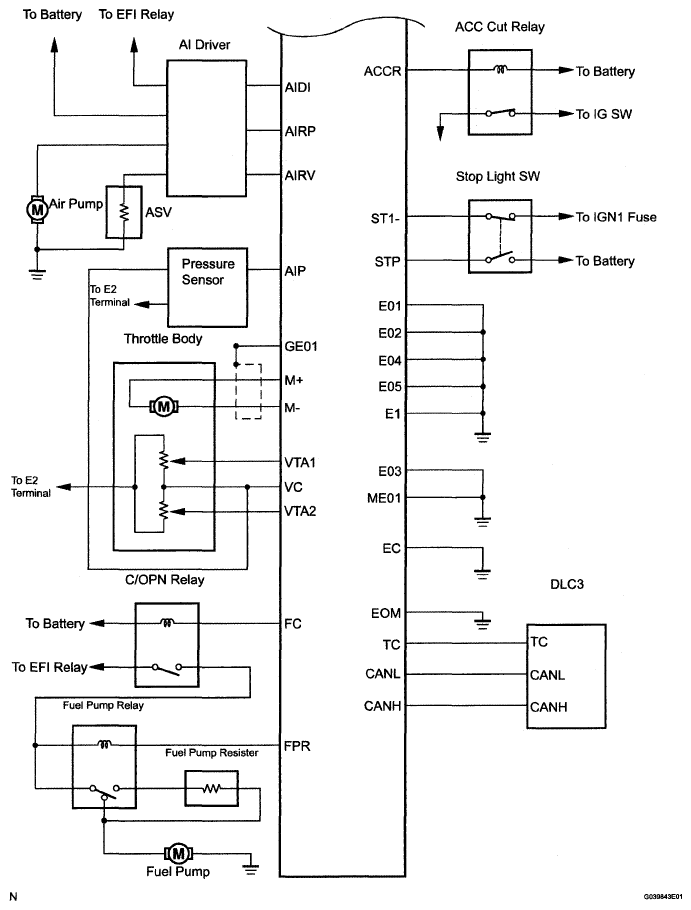

Fig 3: Engine Control System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
