Home › Toyota › 2007 › 4Runner Limited, 4.7 T, AWD › Repair and Diagnosis › Engine Performance › Engine Control System (2UZ-FE) › Throttle Body › Components

Throttle Body: Components

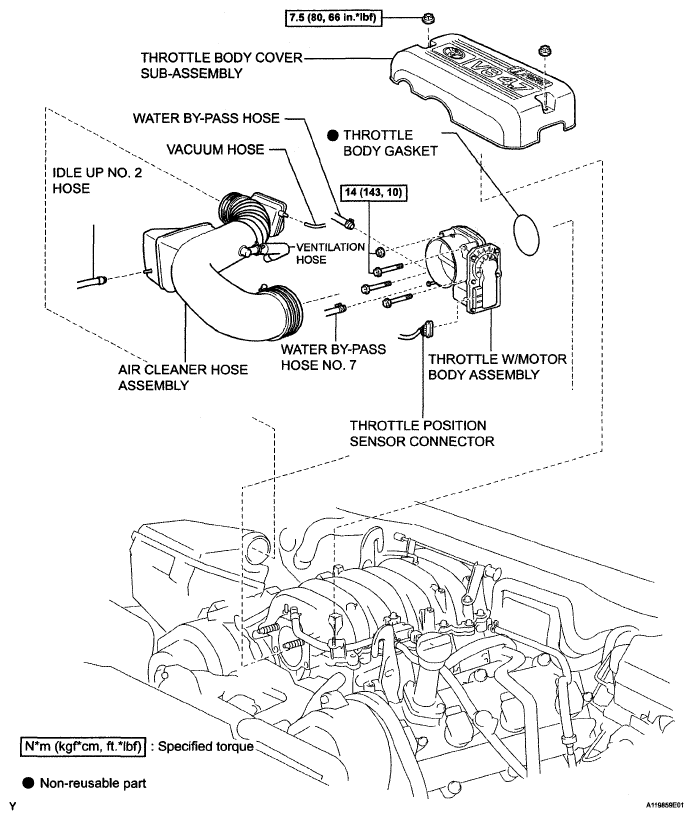

Fig 1: Identifying Throttle Body Components With Tightening Torque

G04968221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
