Front Wheel Alignment: Adjustment

  1. INSPECT TIRE
  2. MEASURE VEHICLE HEIGHT
    1. Measure the vehicle height.

      Vehicle height:

      Fig 1: Measuring Vehicle Height
      G04964549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      2WD Except air suspension

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      2WD EXCEPT AIR SUSPENSION SPECIFICATION

      Vehicle Model Front A-B Rear C - D
      UZN210L-GKAGKA 113.6 mm (4.47 in.) 71.7 mm (2.82 in.)
      UZN210L-GKAGKA 113.5 mm (4.47 in.) 72.3 mm (2.85 in.)
      GRN210L-GKPGKA 110.5 mm (4.35 in.) 70.9 mm (2.79 in.)
      GRN210L-GKPZKA 110.4 mm (4.35 in.) 71.3 mm (2.81 in.)

      2WD Air suspension

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      2WD AIR SUSPENSION SPECIFICATION

      Vehicle Model Front A-B Rear C-D
      UZN210L-GKAZKA 112.7 mm (4.44 in.) 81.4 mm (3.20 in.)

      4WD Except air suspension

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      4WD EXCEPT AIR SUSPENSION SPECIFICATION

      Vehicle Model Front A-B Rear C-D
      UZN215L-GKAGKA 99.9 mm (3.93 in.) 71.6 mm (2.82 in.)
      UZN215L-GKAZKA 99.8 mm (3.93 in.) 72.1 mm (2.84 in.)
      GRN215L-GKPGKA 99.8 mm (3.93 in.) 71.3 mm (2.81 in.)
      GRM215L-GKPZKA 99.8 mm (3.93 in.) 71.9 mm (2.83 in.)

      4WD Air suspension

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      4WD AIR SUSPENSION SPECIFICATION

      Vehicle Model Front A-B Rear C-D
      UZN215L-GKAZKA 99.2 mm (3.91 in.) 78.9 mm (3.11 in.)

      Measuring points:

      A: Ground clearance of front wheel center

      B: Ground clearance of lower suspension arm No. 2 set bolt center

      C: Ground clearance of rear wheel center

      D: Ground clearance of strut rod set bolt center

      NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

      If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

  3. INSPECT TOE-IN
    1. Inspect the toe-in.
      Fig 2: Inspecting Toe-In
      G04964550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Toe-in:

      TOE-IN SPECIFICATION

      Toe-in (total) A + B: 0°05' +- 0°10' (0.08° +- 0.16°)
      C - D: 1 +- 2 mm (0.04 +- 0.08 in.)

      If the toe-in is not within the specified value, adjust it at the rack ends.

  4. ADJUST TOE-IN
    1. Remove the rack boot set clips.
    2. Loosen the tie rod end lock nuts.
    3. Turn the right and left rack ends by an equal amount to adjust the toe-in.

      HINT:

      Try to adjust the toe-in to the center of the specified value.

    4. Make sure that the lengths of the right and left rack ends are the same.
    5. Torque the tie rod end lock nuts.

      Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

      Fig 3: Locating Tie Rod End Lock Nuts
      G04964551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Place the boots on the seats and install the clips.

      HINT:

      Make sure that the boots are not twisted.

    7. Perform VSC system calibration
  5. INSPECT WHEEL ANGLE
    1. Turn the steering wheel fully, and measure the turning angle.
      Fig 4: Measuring Turning Angle Of Wheel
      G04964552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Wheel angle:

      2WD

      2WD WHEEL ANGLE SPECIFICATION

      Inside wheel Outside wheel (Reference)
      37°00' (35°00' to 38°00') 32°30'
      37.00° (35.00° to 38.00°) 32.50°

      4WD

      4WD WHEEL ANGLE SPECIFICATION

      Inside wheel Outside wheel (Reference)
      36°40' (34°40' to 37°40') 32°53'
      36.67° (34.67° to 37.67°) 32.88°

      If the wheel angles differ from the standard of the specification, inspect the toe-in.

  6. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    1. Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
      Fig 5: Identifying Camber-Caster-Kingpin Gauge On Wheel Alignment Tester
      G04964553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the camber, the caster and the steering axis inclination.

      Camber, caster and steering axis inclination:

      2WD Except air suspension

      2WD EXCEPT AIR SUSPENSION SPECIFIED CONDITION

      Area Specified Condition
      Camber   -0°28' +- 45' (-0.47° +- 0.75°)
      Right-left error 45' (0.75°) or less
      Caster   3°23'+-45'(3.38°+-0.75°)
      Right-left error 45'(0.75°) or less
      Steering axis Inclination   12°58' +- 45' (12.97° +- 0.75°)
      Right-left error 45'(0.75°) or toss

      2WD Air suspension

      2WD AIR SUSPENSION SPECIFIED CONDITION

      Area Specified Condition
      Camber   -0°30'+-45'(-0.50°+-0.75°)
      Right-left error 45'(0.75°) or less
      Caster   3°33' +- 45' (3.55° +- 0.75°)
      Right-left error 45' (0.75°) or less
      Steering axis Inclination   13° 00' +- 45' (13.00° +- 0.75°)
      Right-left error 45' (0.75°) or less

      4WD Except air suspension

      4WD EXCEPT AIR SUSPENSION SPECIFIED CONDITION

      Area Specified Condition
      Camber   -0°09' +- 45' (-0.15° +- 0.75°)
      Right-left error 45' (0.75°) or less
      Caster   3°13'+-45' (3.22°+-0.75°)
      Right-left error 45' (0.75°) of less
      Steering axis Inclination   12°39'+- 45' (12.65° +- 0.75°)
      Right-left error 45' (0.75°) or less

      4WD Air suspension

      2WD AIR SUSPENSION SPECIFIED CONDITION

      Area Specified Condition
      Camber   -0°10' +-45' (-0.17° +-0.75°)
      Right-left error 45' (0.75°) or less
      Caster   3°22'+-45' (3.37° +- 75°)
      Right-left error 45' (0.75°) or less
      Steering axis Inclination   12°40' +- 45' (12.67° +- 0.75°)
      Right-left error 45' (0.75°) or less

      If the steering axis inclination is not as specified after camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion or looseness.

  7. ADJUST CAMBER AND CASTER
    NOTE: After the camber has been adjusted, inspect the toe-in.
    1. Loosen the nut and bolt.
    2. Turn the camber adjust cam No. 2 and toe adjust plate No. 2 in the circumference direction, and adjust the camber and the caster.

      HINT

      Try to adjust the camber-and caster to the center value.

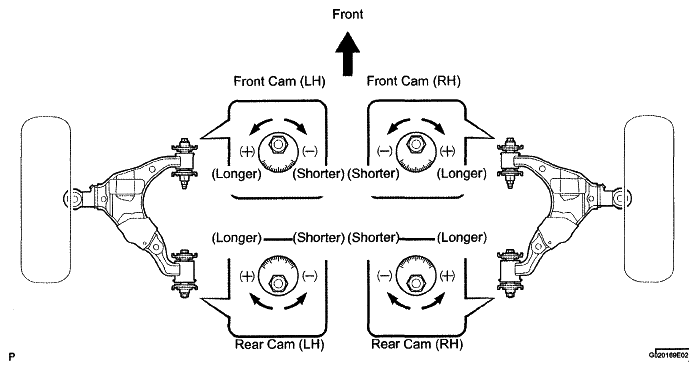

      Fig 6: Adjusting Camber And Caster
      G04964554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. How to read adjustment chart (using examples).

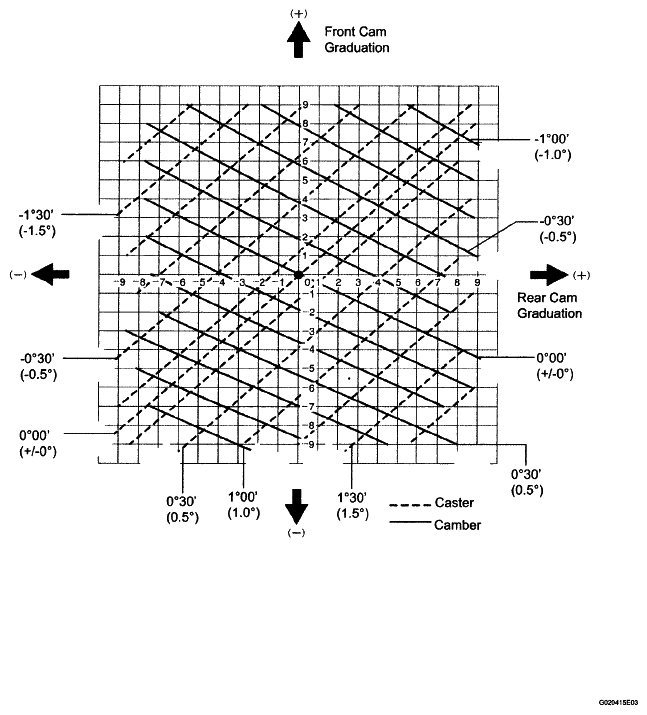

      Fig 7: Example Of Adjustment Chart
      G04964555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the present alignment.

        Camber: 0°15' (0.25°)

        Caster: 2°45' (2.75°)

      2. Make the difference between the standard value (A) and the measured value (B) on the adjustment chart.

        Standard value:

        Camber: 0°35' (0.58°)

        Caster: 2°55' (2.92°)

        Formula: B - A = C

        Camber: 0°15'- (0 35') = -0°20'

        Caster: 2°45' - (2°55') = -0°10'

      3. As shown in the chart, read the distance from the marked point to 0 point, and adjust the front and/or rear adjusting cams accordingly.

        Toe adjust cam: - (Shorter) 2.8

        Camber adjust cam: - (Shorter) 1.8

        Fig 8: Adjusting Front And/Or Rear Adjusting Cams
        G04964556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
