Toyota
›
2007
›
4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transmission Control System - A750F
›
Speed Sensor
›
Components
Speed Sensor: Components

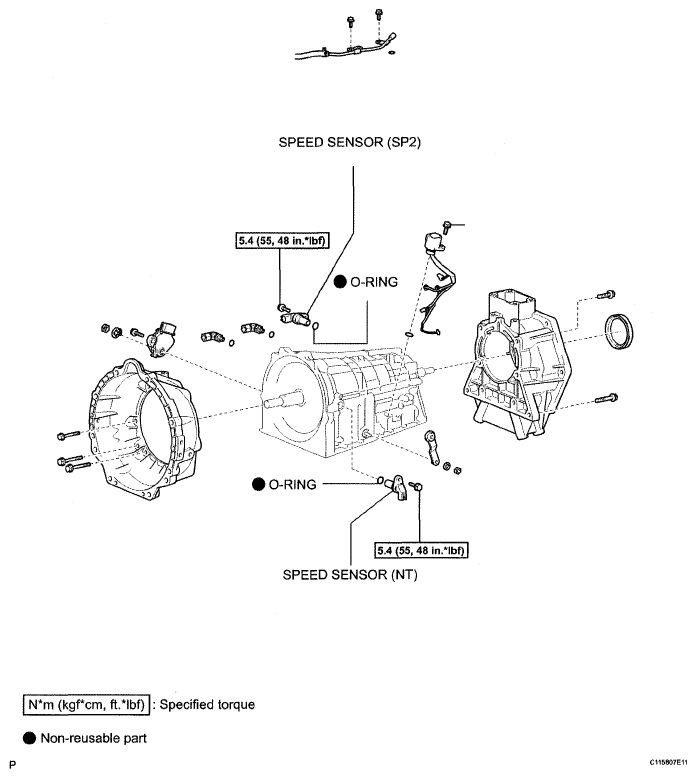

Fig 1: Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
