Multi-display Power Source Circuit
›
Wiring Diagram
Multi-display Power Source Circuit: Wiring Diagram

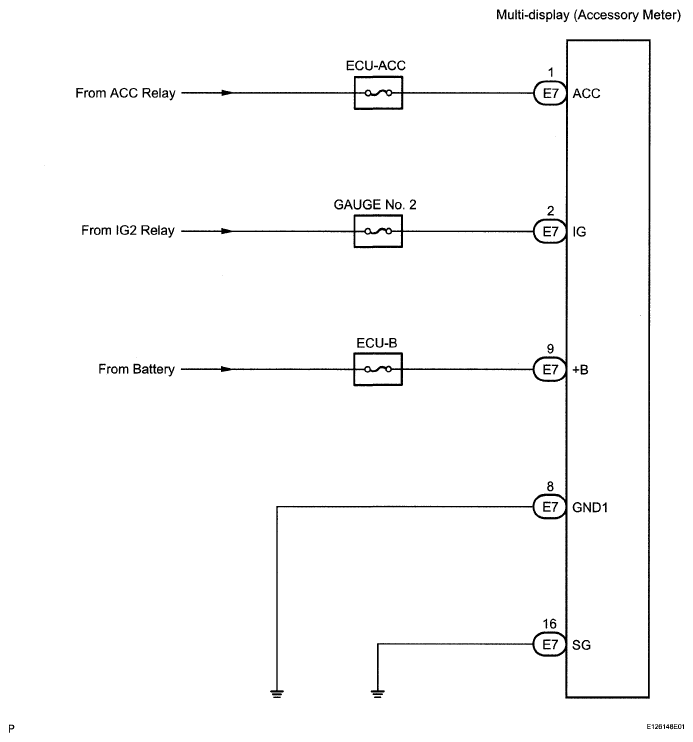

Fig 1: Multi-Display Power Source Circuit Diagram
