Rear Sunshade: Notes

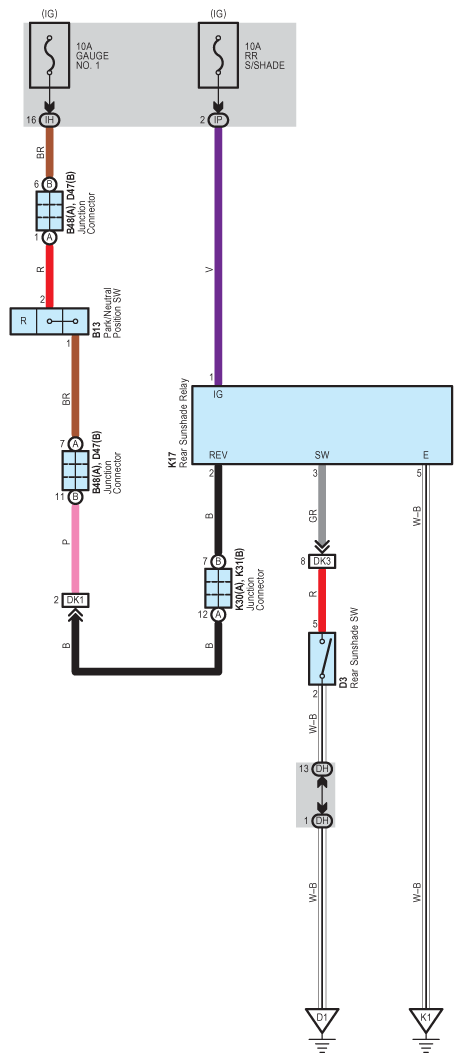

Fig 1: Rear Sunshade System Wiring Diagram
G08780886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
