Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation
›
Cranking Holding Function Circuit
›
Wiring Diagram
Cranking Holding Function Circuit: Wiring Diagram

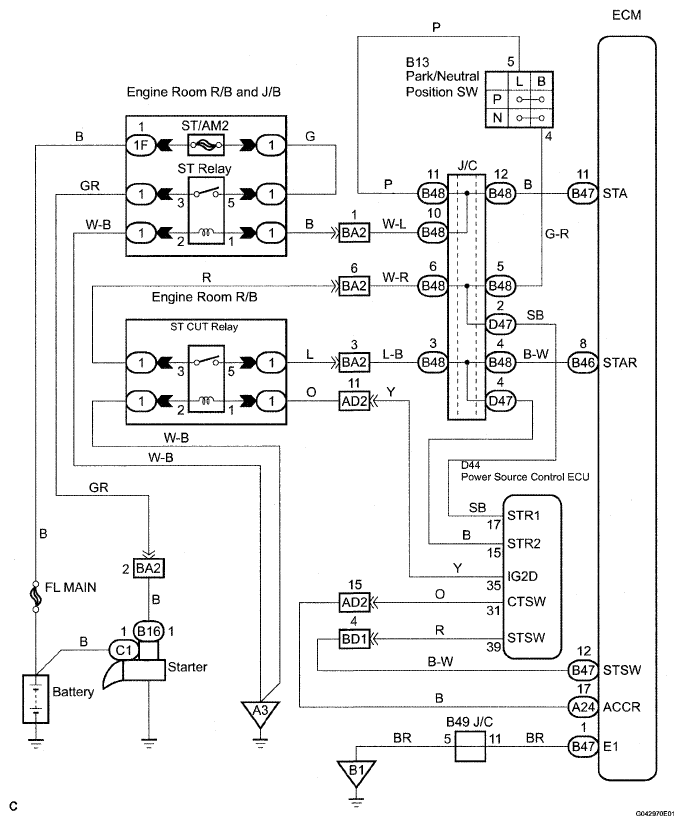

Fig 1: Cranking Holding Function - Wiring Diagram
