Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation
›
MIL Circuit
›
Wiring Diagram
MIL Circuit: Wiring Diagram

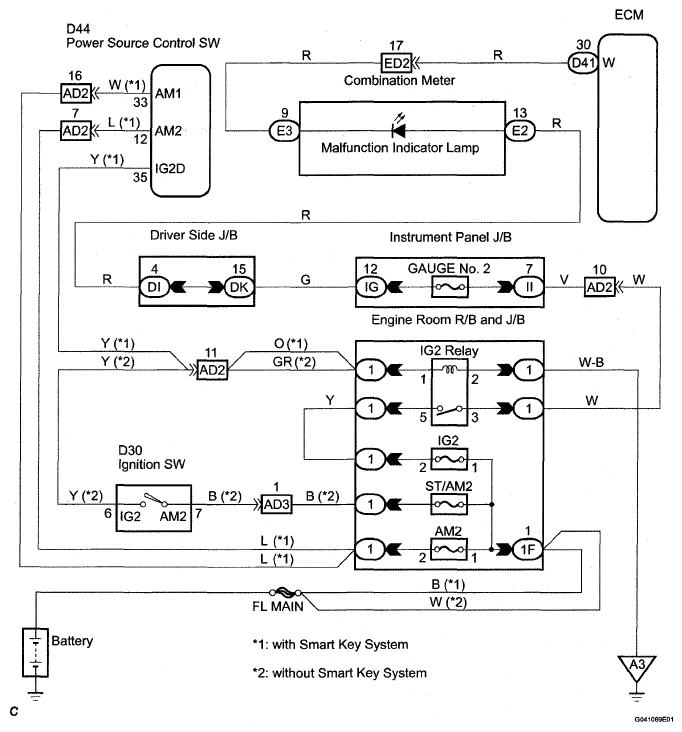

Fig 1: MIL - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
