Cruise Control System
›
Dynamic Laser Cruise Control System
›
Laser Sensor Power Source Circuit
›
Wiring Diagram
Laser Sensor Power Source Circuit: Wiring Diagram

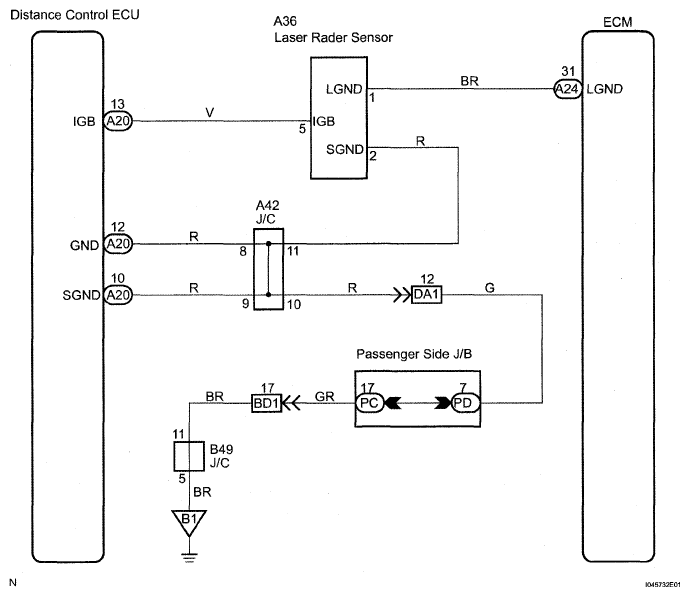

Fig 1: Laser Radar Sensor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
