Dynamic Laser Cruise Control System
›
Parts Location
Parts Location

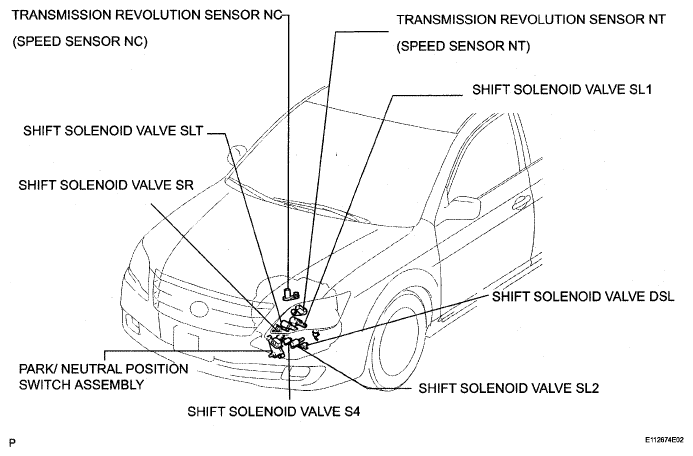

Fig 1: Identifying Dynamic Laser Cruise Control System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

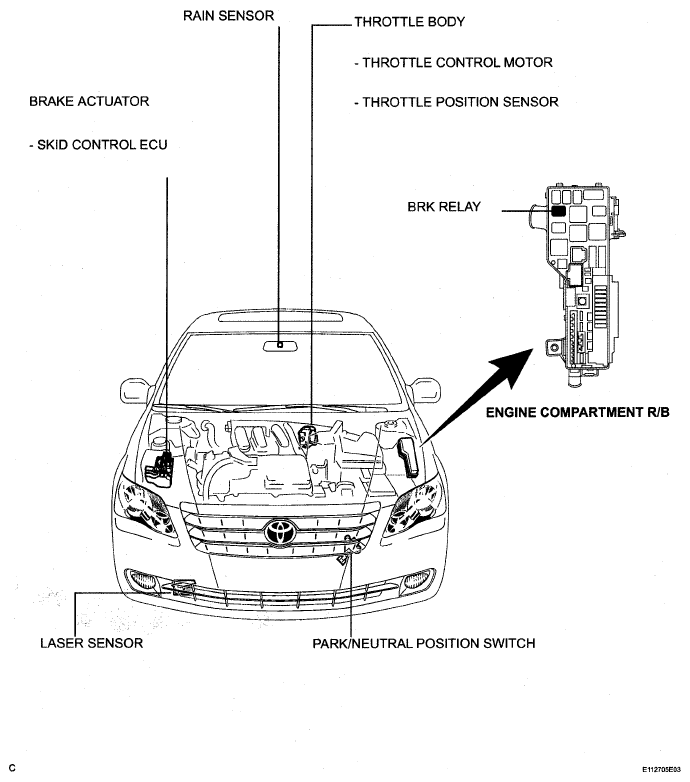

Fig 2: Identifying Dynamic Laser Cruise Control System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

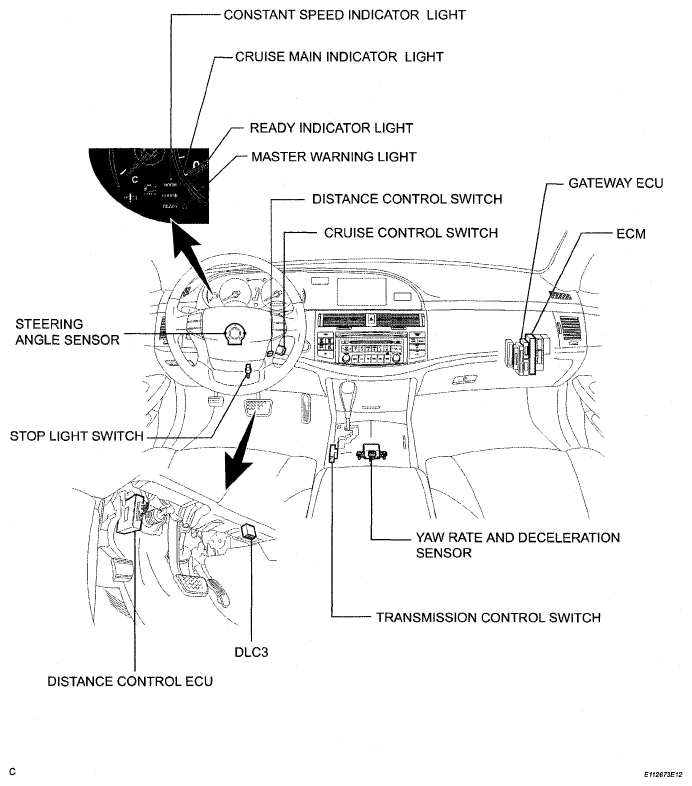

Fig 3: Identifying Dynamic Laser Cruise Control System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
