Power Window Control System
›
Power Window Master Switch Power Source Circuit
›
Wiring Diagram
Power Window Master Switch Power Source Circuit: Wiring Diagram

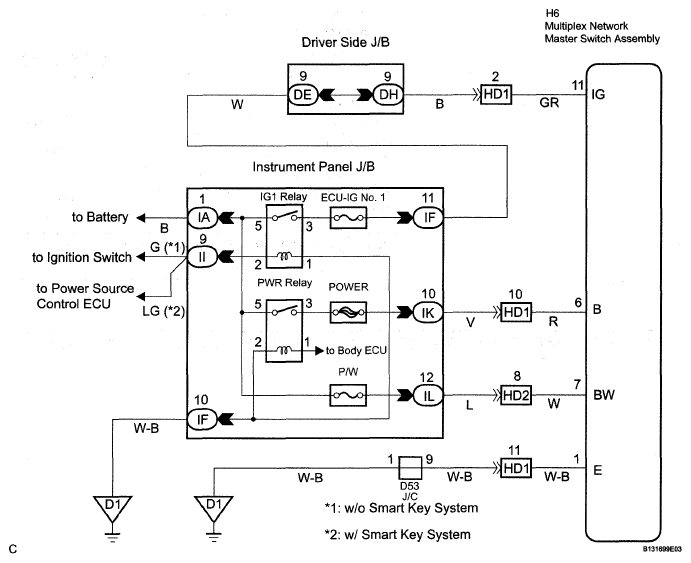

Fig 1: Power Window Master Switch Power Source Circuit - Wiring Diagram
