Rear Power Window Switch LH Circuit: Wiring Diagram

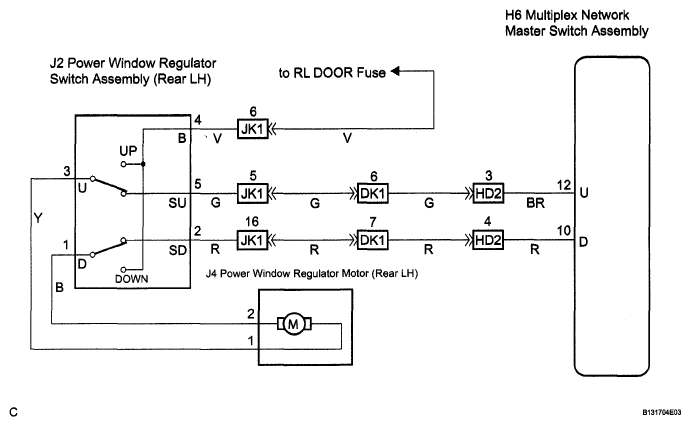

Fig 1: Rear Power Window Switch LH Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
