Combination Meter: Notes

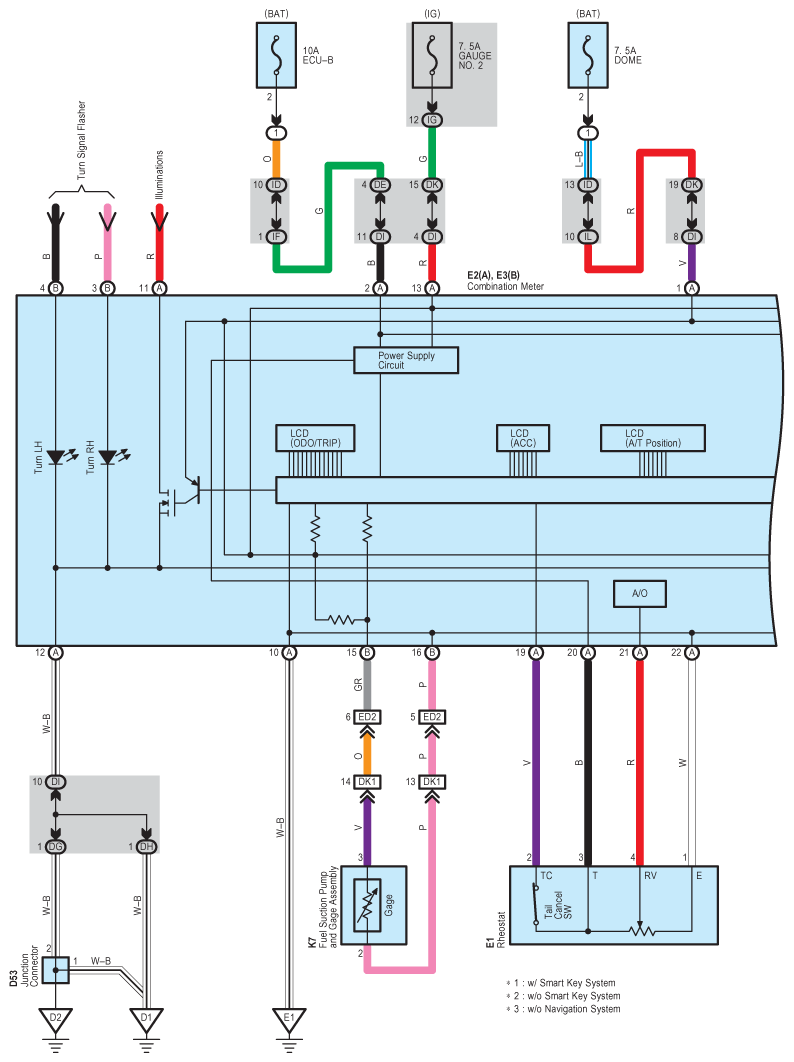

Fig 1: Combination Meter System Wiring Diagram (1 Of 5)
G08780903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

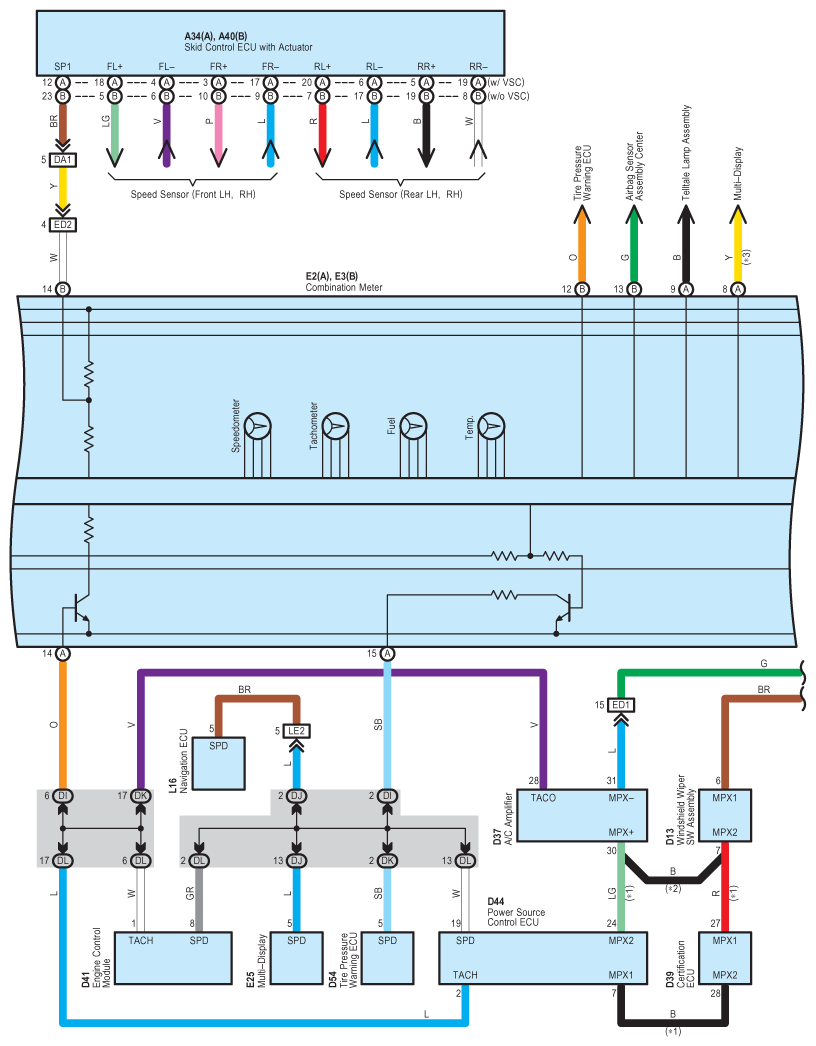

Fig 2: Combination Meter System Wiring Diagram (2 Of 5)
G08780904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

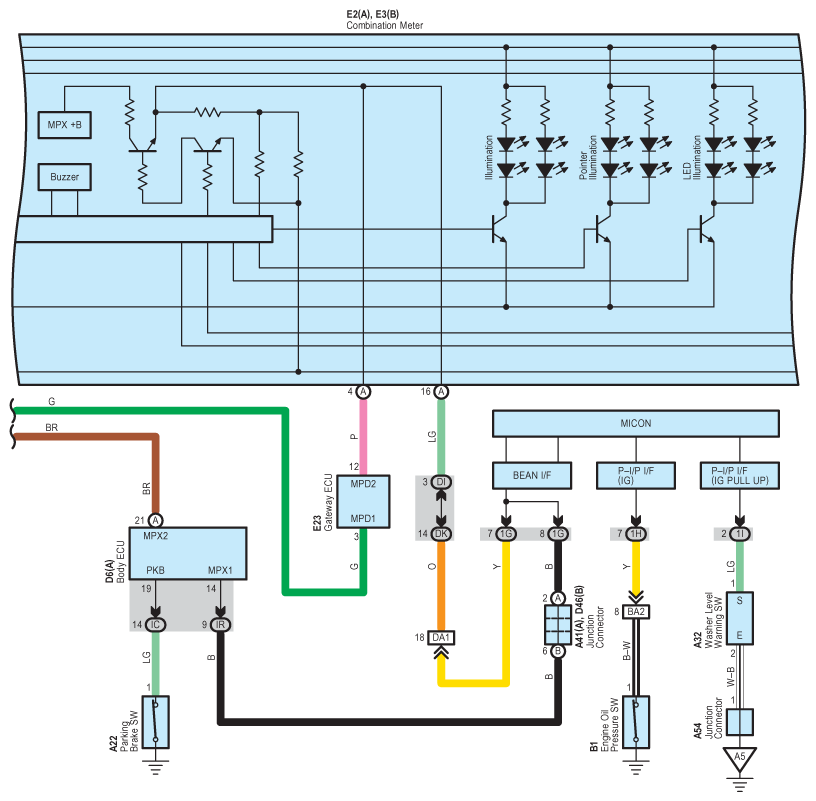

Fig 3: Combination Meter System Wiring Diagram (3 Of 5)
G08780905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

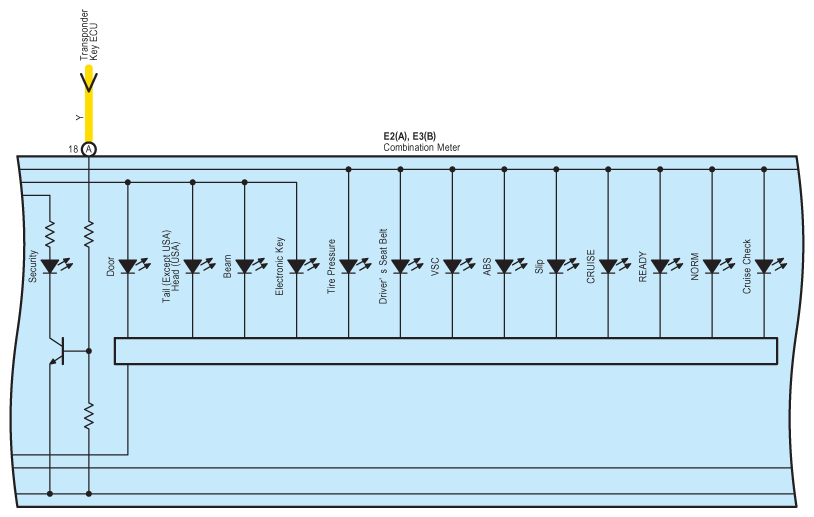

Fig 4: Combination Meter System Wiring Diagram (4 Of 5)
G08780906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

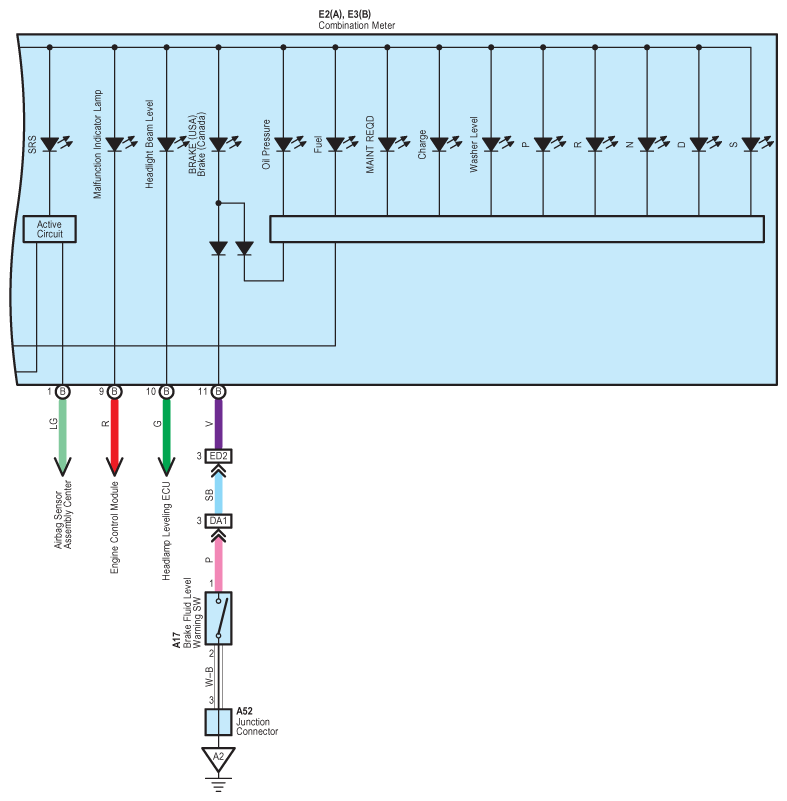

Fig 5: Combination Meter System Wiring Diagram (5 Of 5)
G08780907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
