Engine Immobilizer System without Smart Key System: Notes

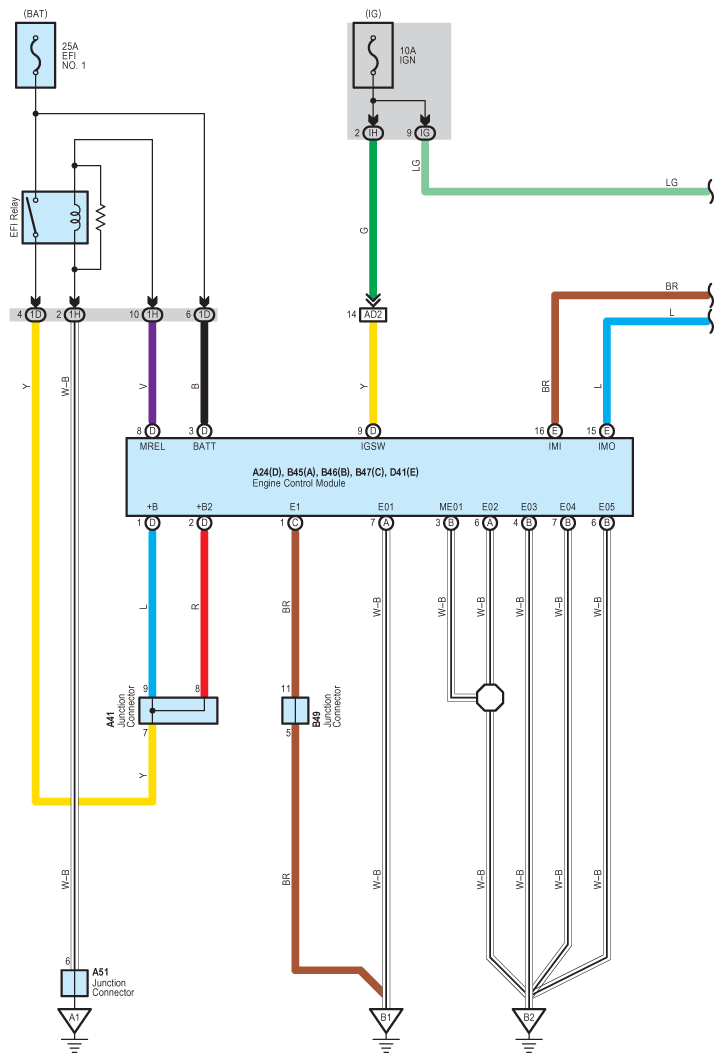

Fig 1: Engine Immobilizer System (Without Smart Key) Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

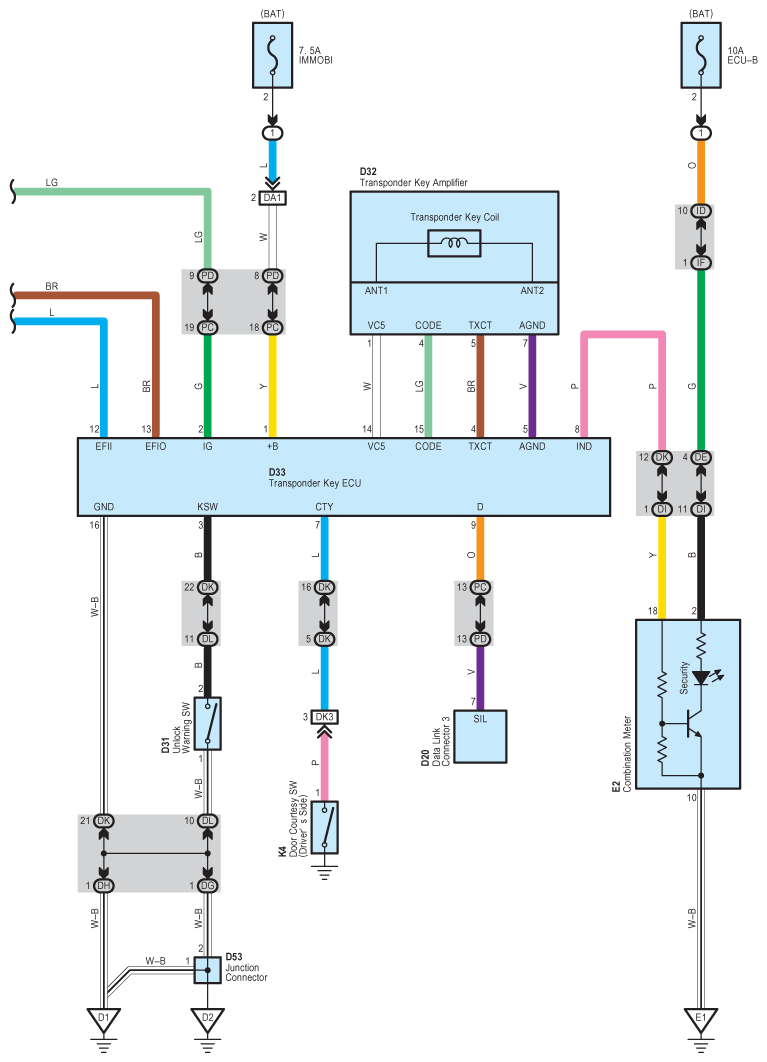

Fig 2: Engine Immobilizer System (Without Smart Key) Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
