Key Reminder without Smart Key System
›
Notes
Key Reminder without Smart Key System: Notes

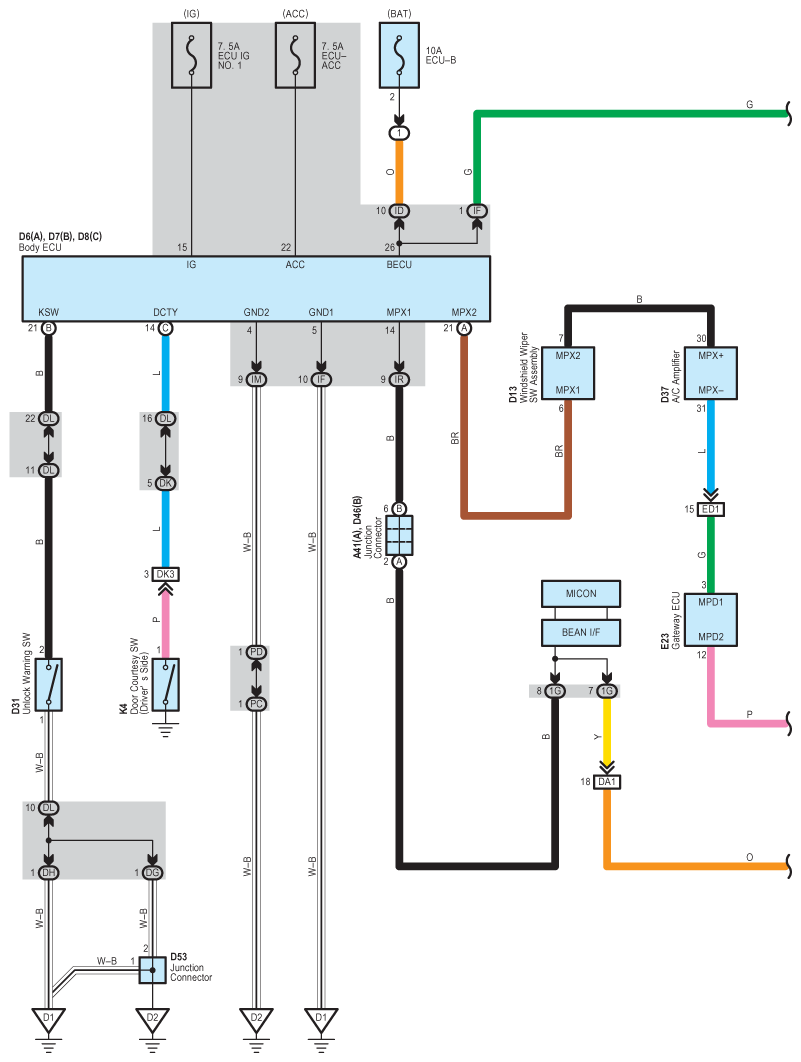

Fig 1: Key Reminder System (Without Smart Key) Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

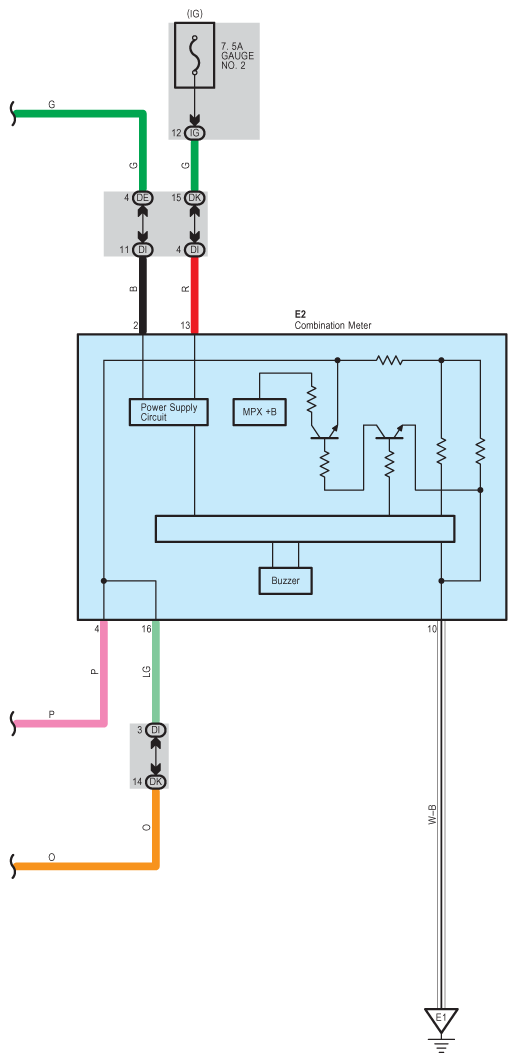

Fig 2: Key Reminder System (Without Smart Key) Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
